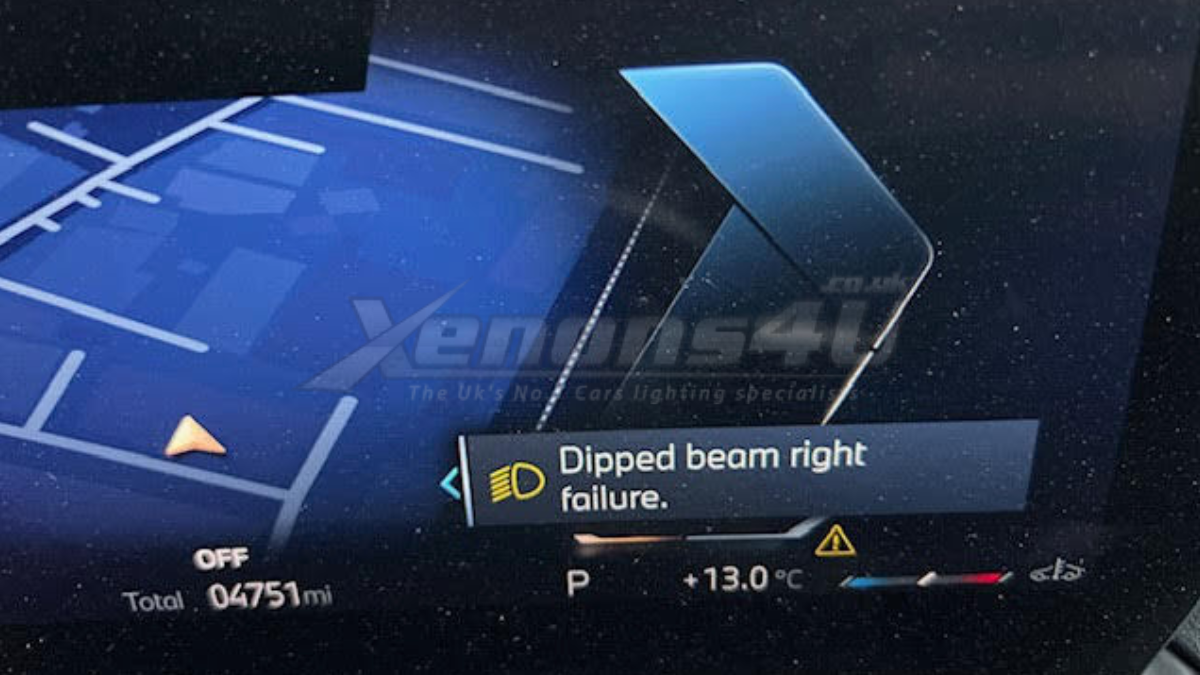

Having the “Dipped Beam Right Failure” error appear in the middle of a drive can be quite a surprise, especially when everything was fine a moment ago. The warning message can also be accompanied by a bulb icon or a specific headlight symbol, such as a dome, shape with downward lines indicating a low beam.
All of this can spark anything from mild curiosity to full-blown panic mode, but before you rush to your nearest mechanic– pause for a moment. This guide will walk you through potential symptoms, the reason behind the warning message, and how to fix it. But before we go into the details, it’s important to understand the affected system of your specific BMW model.
Lighting System of BMW 1 Series F70/ 2 Series F74
The BMW 1 Series features the fourth-generation (F40) hatchback. With its outstanding design and progressive design language, it stands out from the crowd at first glance. Equipped with the advanced LED lighting, including standard full LEDs and optional adaptive matrix headlights, the F70 leaves a lasting impression wherever it goes.
Much like its predecessor, the BMW 2 Series (F74) Gran Coupé is a sporty, compact sedan featuring a redesigned, advanced LED lighting with standard full LEDs, and optional Adaptive Matrix headlights for glare-free high beams.
The two models are composed of advanced lighting technology, highlighted by low-dipped beams to illuminate the road directly in front without blinding oncoming drivers. While this feature plays an instrumental role in road safety, it can also trigger warning messages like “Dipped Beam Right Failure.”
What Does “Dipped Beam Right Failure” Warning Message Mean?
The warning message, “Dipped Beam Right Failure,” indicates that there is an issue with the right dipped beam headlight. This can often stem from a burnt-out bulb or faulty LED module.
Depending on the failed side, you may observe the following warning messages on your BMW:
- Dipped beam left failure
- Dipped beam right failure
Your vehicle will specify the faulty side, meaning that you don’t have to perform an inspection to figure out the failed side. When either of these warning messages appears, the dipped beam will not work or flicker repeatedly, which can make driving at night dangerous. It’s generally recommended to resolve the warning promptly, assessing potential reasons behind its failure to avoid long-term issues.
Reasons Behind “Dipped Beam Right Failure” Error
The root cause behind “Dipped Beam Right: Failure” can mainly be attributed to a faulty LED headlight control unit. This can often occur due to accidental damage or moisture ingress that can corrode the internal components of the module, impacting the functionality of the dipped beams. When this occurs, you’ll be unable to control or activate the dipped beams, compromising safety.
Other potential reasons behind the warning error are:
- External damages, such as accidents that damage the front of the vehicle.
- Average lifespan degradation of the bulbs. Replacing the LED bulbs can help resolve the error.
Irrespective of the reason behind the error, you may see common symptoms that may be your car’s way of telling you something’s wrong. It’s highly recommended to observe these symptoms keenly to narrow down the issue.
Common Symptoms of Failed Dipped Beams
There are some common symptoms that you need to look out for:
- Dipped beams will fail to work, depending on the faulty side
- Warning messages on your BMW’s dashboard
- Interconnected components of the headlight may malfunction
Dipped beams play a key role in safe driving, making it crucial to address the issue when you first see the warning message. Failure to do so may result in penalties from the Highway Code and reduce your ability to see hazards or obstacles on the road ahead.
How To Clear the Warning Message
To reset the warning message from your BMW, you’ll need to remove the existing LED headlight control module and assess for signs of damage. Because the warning message specifies the faulty side, there is no need for inspection, and you can perform the replacement with a new module.
Our BMW 5A641A8-01 LED Module is a factory-fitted headlight control module, suitable for both sides. Before replacement, make sure to compare the part numbers of both the existing and new module to ensure seamless installation. This solution can save you a fortune and unnecessary costs at the mechanic's. After replacement, diagnostic coding is required through an OBD-II scanner to help clear the warning message from the dashboard.
Parts & Compatibility List
This module is compatible with a range of vehicles:
BMW part numbers
- 5A641A8-01
AL part numbers
- 1470001146AC
- C0000004273
- FLM3_LOW04
More compatible part numbers
- 63115A641B0
- 5A641B0-01
- FLM3_LOW6
- 1470000960AC
- C0000004272
- 63115A53109
- 5A53109-01
- FLM3_LOW04
- 1470001146C7
- 10AS21S0125
- 142000098200
- 5A641A8-01
- 1470001146AC
- C0000004273
- FLM3_LOW04
Compatible BMW X1 U11 Basic BMW LED Low Version Headlamps
- 5A9A223-01
- 5A5BD44-03
- 5A5BD46-02
- 5A5BD45-03
Compatible BMW 1 series F70 2 series F74 Gran Coupe Basic BMW LED Low Version Headlamps
- 63115A8E2E6 5A8E2E6-03 LD36868
- 63115A8E2E5 5A8E2E5
- 5A32B48-08 L887651ZU08
- 5A32B48-09 L887651ZV09
- 5A32B47-09 L887648ZV09
- 5A32B45-09 L887639ZU09
Compatible BMW G05 X5 G06 X6 LCI Facelift Basic BMW LED Low Version Headlamps
- 5A5B578-05 F00HTB7210AE
- 5A5B577-05 F00HTB7209AE
Compatible BMW X3 G45 Basic BMW LED Low Version Headlamps
- 5A1BD24-07
- 5A1BD24-08 1296.306.0000.04
- 5A1BD23-08 1296.305.0000.04
Compatible BMW cars
- 1 series F70 Hatchback
- 2023 2024 2025
- 2 series F74 Gran Coupe
- 2023 2024 2025
- M-Sport Shadow Line
- 2' F78 Gran Coupé (08/2023 — 03/2025)
- 5' G60 Sedan Saloon
- (06/2022 — 03/2025)
- 5' G68 Sedan (09/2022 — 03/2025)
- 5' G61 Touring Estate Wagon
- (11/2022 — 02/2025)
- 520i 530i 530e 540i 550e M560e xDrive
- Petrol Gasoline Plug-in hybrid
- 520d 540d xDrive diesel M-Sport
- 2023 2024 2025
- X1 U11 (06/2021 — 03/2025)
- 2021 2022 2023 2024
- xDrive30L xDrive30
- X1L U12 (11/2021 — 03/2025)
- X2 U10 (09/2022 — 03/2025)
- X3 G45 (06/2023 — 03/2025)
- X3L G48 (09/2023 — 03/2025)
- X5 G05 LCI (01/2022 — 03/2025)
- X5L G18 LCI (06/2022 — 03/2025)
- X5 M F95 LCI (02/2022 — 03/2025)
- X6 G06 LCI (01/2022 — 03/2025)
- X6 M F96 LCI (02/2022 — 03/2025)
- MINI F66 (10/2022 — 03/2025)
- MINI Cooper J01 (10/2022 — 03/2025)
- MINI F65 (02/2023 — 03/2025)
- MINI Cabrio F67 (07/2023 — 03/2025)
- MINI Countryman U25 (10/2022 — 03/2025)
