Whether by a burnt-out bulb or a corroded module, daytime running lights can stop working for one reason or another. This can impact visibility and risk compliance with safety regulations on the road, impacting driver and pedestrian safety.

A common problem with the Opel Insignia, also known in the UK as the Vauxhall Opel Insignia G09 MK1 Facelift cars. The model was one of the first of its line with new and improved safety features, like adaptive forward lighting complemented by daytime running lights (DRLs) with LEDs. Some sensors and modules monitor surrounding traffic and weather conditions to control the lighting system with accuracy.

When these sensors detect a problem with the interconnected components, such as the daytime running lights (DRLs), they’ll send a signal to the ECU, which will alert you via a dashboard warning message.

Read on to learn what it means, the culprit behind the error, and what you can do to get your DRLs back in working order.

What Does The Warning Message Mean?

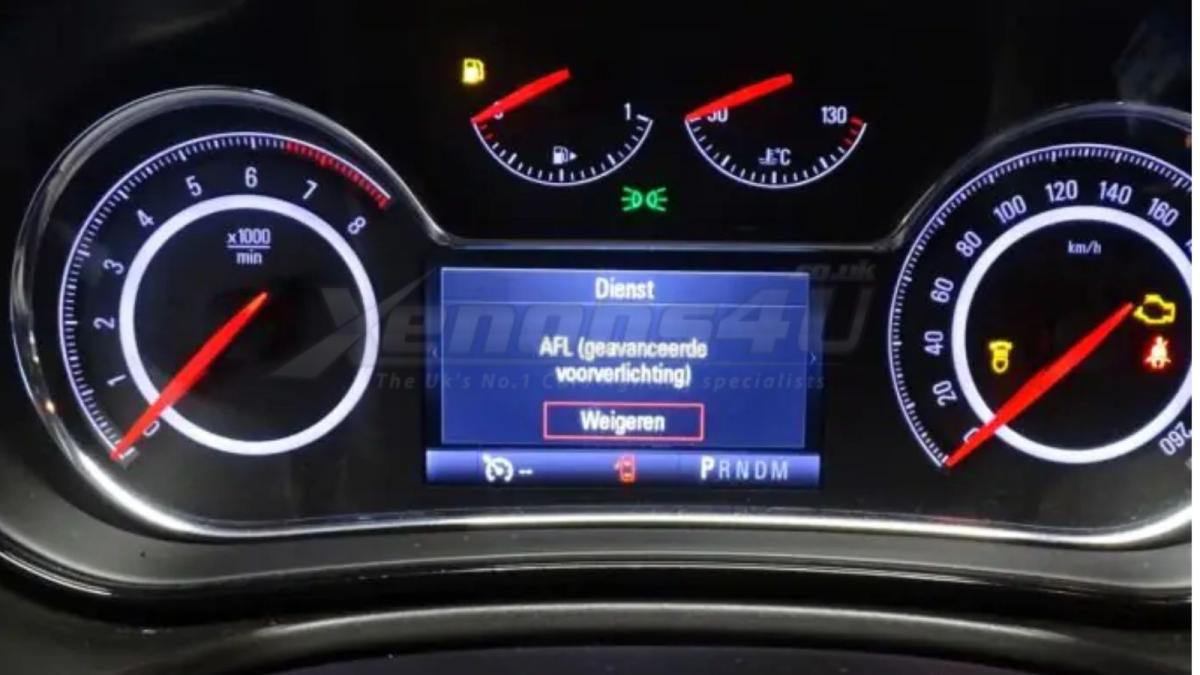

With the Vauxhall/Opel Insignia A G09, you may see warning messages that don't explicitly mention an issue with the daytime running lights, which can be pretty confusing. However, a telltale sign is that your DRLs will stop functioning and instead trigger a series of warning messages hinting at a problem with your headlight system. Such as:

  • AFL (geavanceerde voorverlichting)
  • Advanced Front Lighting
  • Service AFL Lamp
  • Headlamp Levelling Malfunction - Contact Service
  • Funcionamiento erroneo del sist nivelacion faros
  • Adaptiva framlyktor
  • Entretien requis lum. AFL
  • Dysfonction. reglage phares

The easiest way to identify the issue is to check your lighting system and switch your DRLs on to see if they work. To verify if there’s an issue with your daytime running lights, either one or both of the DRLs won’t work, depending on the faulty side.

Why Did The Warning Message Appear?

The reason behind the warning message is due to LED module failure, which predominantly occurs due to:

Lifespan degradation: A common occurrence, especially with sensitive components like LED DRL modules that degrade due to constant stressors, heat, vibrations, and electrical current. All of which cause progressive microscopic damage to the chips and sensors within the module. Over time, the module will lose its functionality and potential to perform its designed functions adequately, leading to DRL failure.

Other potential reasons are:

  • External damage due to accidents and head-on collisions.
  • Moisture ingress from a broken headlight seal or from car washes.
  • Wiring issues due to brittle wires that interrupt the DRL's regular operation.

Common Symptoms of DRL Warning Error

A side-effect from malfunctioning DRLs can lead to the following:

  • Your DRLs won’t work: Depending on the faulty side, the affected DRL will fail to work.
  • Warning messages on your dashboard: When your vehicle’s computer recognises a fault with your headlight system, it will trigger a set of warning messages:
  • AFL (geavanceerde voorverlichting)
  • Advanced Front Lighting
  • Service AFL Lamp
  • Headlamp Levelling Malfunction - Contact Service
  • Funcionamiento erroneo del sist nivelacion faros
  • Adaptiva framlyktor
  • Entretien requis lum. AFL
  • Dysfonction. reglage phares

In hindsight, these messages will not clearly indicate an issue with the DRL, which is why you’ll need to conduct a thorough inspection of the DRLs.

How To Fix The Issue

To remove the warning message on your dashboard, you’ll need to replace the defective LED module that controls the daytime running lights. Determine the faulty side by swapping the modules on each side. If you have a

For older models of the Vauxhall/Opel Insignia, the Hella 177310-32AB 544772965 LED Module is a compatible LED module offering a factory-fitted replacement.

As for models from 2013 and onwards, the Hella 177310-32AA 324406669 LED Module comes with a warranty and is suitable for both left and right daytime running lights.

Both of these modules are a direct replacement, which means you can do it yourself with no diagnostic coding required– saving you a trip to the mechanic and money in the long run. At Xenons4U, we offer genuine OEM parts with a warranty and a team of car specialists dedicated to helping you at every step of the installation process.

Compatibility List & Part Number

Our module offers a broad compatibility range:

Compatible Hella part numbers:

  • 177310-32 AB
  • 177310-32AB
  • 544772965

Opel part numbers

  • 31102014

More compatible part numbers

  • 177310-32 AA
  • 177310-32AA
  • 324406669
  • W5 324406669
  • W5324406669

Compatible Vauxhall Opel Insignia A G09 Facelift D3S headlamps

  • GM 13426665LH
  • Hella 1ZT011166-03
  • GM 13426666RH
  • GM 13426663LH
  • Hella 1ZT011166-04
  • Hella 1ZT011166-02
  • Hella 1ZT011166-01
  • GM 13432958

Compatible cars:

  • Opel Vauxhall Astra MK6 VI J 2015 2016
  • Vauxhal Opel Insignia MK1 A G09 Facelift
  • 2013 2014 2015 2016 2017
  • 1.4 1.6 1.8 VVT 2.0 2.8T Turbo 4x4 Petrol Gasoline
  • 1.6 CDTi 2.0 DTCi Bi-Turbo 4x4 EcoFlex diesel Automatic
  • Country Tourer OPC Sports Tourer
  • Saloon Sedan Hatchback Estate Sports Tourer Elite Nav
  • Opel Vauxhall Corsa E X15
  • 1.4L Turbo
  • Buick Regal Sportback GS
  • AWD 4DR Sedan Saloon
  • CXL Turbo
  • Sport Touring Edition
  • 2014 2015 2016 2017
  • Holden Insignia VXR
