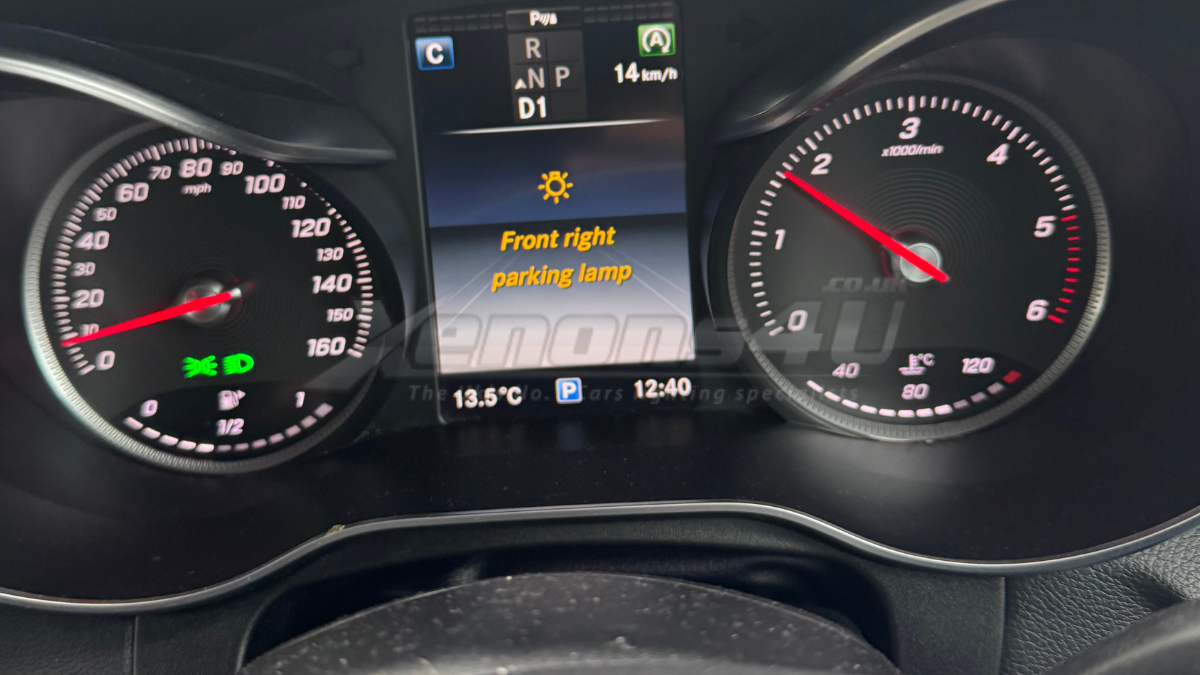

It can be a huge letdown when you see the warning message, “Front Right Parking Lamp” on your Mercedes-Benz, especially when you’re running late for work. This warning message often points to a malfunction in the lighting system of the vehicle.

In this blog, we’ll help you catch up to speed on what you’ll need and how to fix the warning error, starting with going into the specifications of your vehicle.

Specifications of  Mercedes-Benz GLC C253/X253 Pre-Facelift

The Mercedes-Benz GLC (X253) was introduced in five-door form in 2015. Alongside the X253 Hatchback, Mercedes also designed the GLC Coupé (C253), with a sloping rear roof design and different engine variants. Both exceptional on the road, the two models highlight the pinnacle of automotive technology.

They come with standard LED lighting with optional High Performance LED (static beam, auto high beam) or the advanced Intelligent Light System (ILS) with MULTIBEAM LED, featuring parking lights to make your vehicle visible to other drivers when parked in low-light conditions. Sometimes these lights can malfunction, resulting in a warning message that reads, “Front Right Parking Lamp.”

While quite ambiguous in direct terms, it is crucial to understand what the warning message means.

What Does “Front Right Parking Lamp” Mean?

The warning message, “Front Right Parking Lamp,” on your dashboard indicates that the right side parking light is malfunctioning. When there is a malfunction, it can also trigger other warning messages, like:

  • Intell. Light System Inoperative
  • Malfunction: See Owner's Manual
  • Front Right Parking lamp
  • Right Daytime Driving Lamp
  • Front Right Indicator
  • Right dipped beam

Reason Behind “Front Right Parking Lamp” Warning

While the issue can stem from a burnt-out bulb, the common reason for this warning message is a faulty LED headlight control unit. This can also cause flickering, dimming, or complete failure of parking lamps. Other potential issues are:

  • Burnt-out bulbs due to lifespan degradation.
  • External damage to the parking lamp can also result in the warning error.

Potential Symptoms You May Experience

When the right side LED control module fails, it can result in the following symptoms.

  • The right DRL will fail to light up or light up.
  • Warning messages will light up on the dashboard.
  • Interconnected components like headlights will fail to work, as well.

Failure to replace the LED control unit may cause these symptoms to persist or worsen over time. It’s generally recommended to replace the module after proper inspection, when the first warning message appears.

Troubleshooting The Issue

Fixing the issue is a straightforward process that can be done in two easy steps.

Step one includes no diagnosis, as the warning message highlights the faulty side. All you need to do is replace the LED control module with a new one, such as the A2229004812 HLI MAX Ana LED Module. This LED module is specifically designed for Mercedes-Benz GLC X253 C253 cars with full LED ILS Intelligent Light system headlamps. You’ll need to take care of one additional point, which is to ensure that the part numbers of both the fault and the new module are exactly the same. This will help ensure seamless integration.

Step two involves diagnostic coding, which can be done with an OBD-II scanner to help alert the machine that the error has been detected and resolved. Without this, the warning message will continue to appear on the dashboard even after the LED module has been replaced.

Before replacing the LED module, you may want to check the wiring and connections to ensure there are no loose connections or damaged wires. If everything appears to be in good condition, then replacing the LED module should resolve the issue with your parking lamp.

If you run into any problems during the installation process, the team at Xenons4U is here to help by providing expert guidance.

Part Numbers & Compatibility List

This module fits a range of models, ensuring broad compatibility:

Software and hardware part numbers:

  • HW:A2229017901
  • SW:A2539028900

Mercedes-Benz part number:

  • A222 900 48 12
  • MA222900481280
  • A222900481280
  • A2229004812

LEAR part numbers:

  • 504212F07
  • 504212R13
  • 504212R14

More compatible part numbers

  • A2229000702
  • 504212F03
  • 504212F07
  • HW:A2229017901
  • SW:A2539020200

Compatible Mercedes-Benz GLC X253 C253 Pre-Facelift Intelligent Light System ILS LED headlamps

  • A2539065801
  • A2539066001
  • A2539060401
  • A2539062602
  • A2539061601
  • A2539060601

Compatible Mercedes-Benz GLC X253 C253 Pre-Facelift LED High Performance headlamps

  • A2539065401
  • A2539069400
  • A2539065201
  • A2539069800

Mercedes Benz compatibility list

  • GLC X253 W253 Hatchback 2015 2016 2017 2018 2019
  • GLC C253 Coupe 2015 2016 2017 2018 2019
  • GLC220d GLC250d GLC350d diesel BlueTEC 4MATIC
  • GLC200 GLC250 GLC300 Petrol Gasoline
  • GLC350e Plug-In Hybrid
  • GLC43 GLC63 AMG
  • 2.0L 3.0L V6 4.0L V8
  • AMG Line
