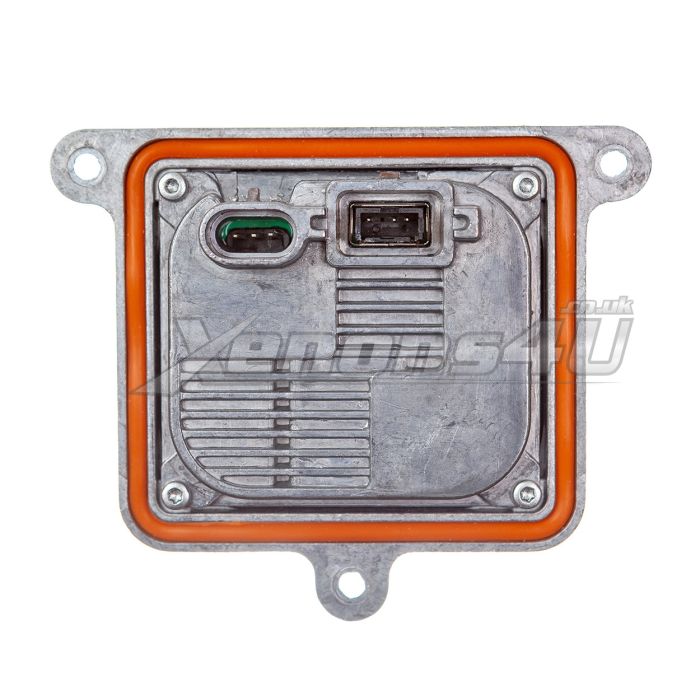

35XT6-S-D3/12V 35XT6-B-D3/12V A71177E00DG Xenon HID Ballast

35XT6-S-D3/12V A71177E00DG Xenaelectron D3S D3R Xenon Ballast

35XT6-S-D3/12V Xenon Light control unit module is suitable for many different vehichles with D3S HID headlamps.

We have collected a list of compatible vehicles, if your old part looks like in the picture and car uses D3S 35W socket bulbs, it will fit and work flawlessly.

Direct replacement, no coding is required, just plug and play fix.

Osram part numbers 35XT6-S-D3/12V and 35XT6-B-D3/12V are identical and compatible with each other.

If you are unsure about A71177E00DG headlight ballast fitment, please contact us for help.

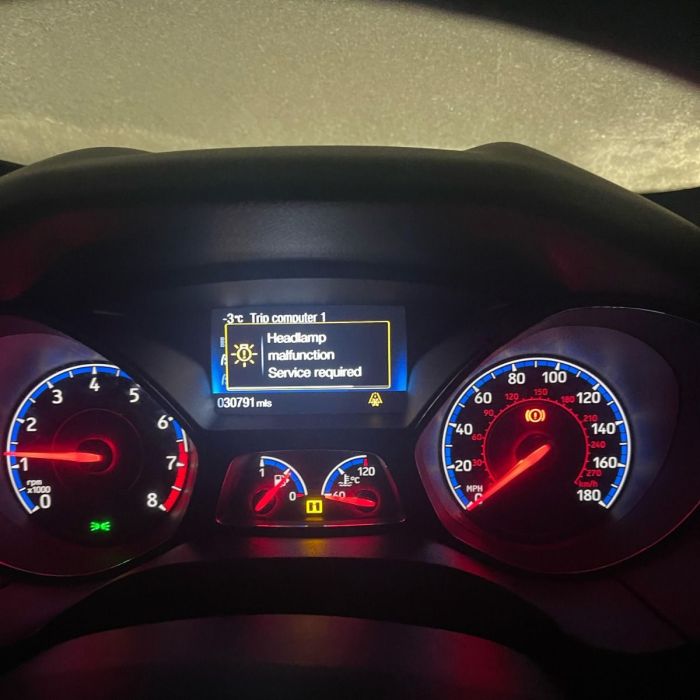

The most common Ford warning messages

• System check
• Headlight malfunction service required
• Headlamp malfunction service required

The most common Tesla warning messages

• BC_w006
• Right headlight malfunction defected
• BC_w005
• Left headlight malfunction detected
• Inspect light function - Schedule service if needed
• Detectado fallo en faro izquierdo
• Detectado fallo en faro derecha
• Revise luces y reparelas si fuera necesario
• Fehlfunktion Scheinwerfer links festgestellt
• Fehlfunktion Scheinwerfer rechts festgestellt
• Licht prüfen - Service Planen falls nötig
• Feil pa venstre frontlys
• Feil pa høyre frontlys
• Kontroller lys - avtal service ved behov
• Fel på vänster strålkastare upptäckt
• Fel på höger strålkastare upptäckt
• Kontrollera lampans funktion, serva vid behov
• Guasto rilevato al faro di sinistra
• Guasto rilevato al faro di destro
• Verificare fari - Pianificare servizio se necessario
• Panne relevée sur le phare de gauche
• Panne relevée sur le phare de droite
• Contrôler les phares - Planifier service si besoin

The most common diagnostic trouble codes DTCs

• B1D02:15 Left high beam circuit short to battery or Open This DTC sets when the BCM detects an open from the LH high beam output circuit
• B1D03-15 Right high beam circuit short to battery or Open This DTC sets when the BCM detects an open from the LH high beam output circuit
• B1D02:11 Left High Beam Circuit Short To Ground
• B1D02:15 Left High Beam Circuit Short To Battery or Open
• B1D03:11 Right High Beam Circuit Short To Ground
• B1D03:15 Right High Beam Circuit Short To Battery or Open

Osram part numbers

• 10R-044663
• 10R044663
• A71177E00DG
• 35XT6-S-D3/12V
• 35XT6-B-D3/12V

OEM part numbers

• Tesla: 1029170-00 - 1029170-00-A - 102917000A
• Jaguar: C2D50948
• Land Rover: LR025157
• Cadillac: 22794558
• Hyundai: 921904Z200
• Chrysler: 68250629AA
• Buick: 9065255
• Ford 1710026
• Osram 35XT5-2-D3/12V
• GM 84183573
• Mopar 68138776AA
• Ford BL7Z-13C170-A 7L7Z-13C170-A

More compatible part numbers

• AA3261300DG
• 35XT6-A-D1/12V
• X635_A_112_DCA
• A71154402HQ
• 35XT6-S-D3/12V
• X635_S_312_ECA
• A71154400DG
• 35XT6-S-D3
• 35XT6-S-D3/12V
• 35XT6SD312V
• X635_S_312_ECA
• 35XT6-A-D3/12V
• AB4401900HQ
• 35XT6-A-D3/12V B3 EG
• X635_A3_312_ABA
• AA5642101DG
• 35XT6-A-D3/12V
• X635_A2_312_ABA
• AB3068900DG
• 35XT6-S-D3
• 35XT6-S-D3/12V
• 62941C00DG
• 35XT6-A-D3/12V
• X635_A_312_ECC

Compatible Tesla Model S D3S Xenon headlamps

• 6005906-00-D 600590600D
• 6005907-00-D
• 00146345-11-0000
• 6005906-00-C 600590600C

Compatible Ford Focus MK3 C346 Xenon headlamps

• F1EB-13005-BF
• F1EB-13005-AA
• F1EB-13D154-BG
• BM51-13D155-BG

Compatible Land Rover discovery sport L550 Xenon headlamps

• FK7213W030DG
• FK7213W030DD
• FK7213W030JG
• FK7213W030ED
• FK7213W030FF
• FK7213W030HF
• FK7213W029HF

Compatibility list

• Tesla Model S Pre-Facelift 2012 2013 2014 2015 2016
• 60 60D P85 70D 85D P85D P90D
• Tesla Model S 70D Single One Motor
• Tesla Model S P85D Dual Motor
• Tesla Model S P90D
• Tesla Model X 2015, 2016, 2017
• X 90D P90D P100D AWD
• Chrysler 200 2015, 2016, 2017
• Hyundai Santa Fe 2013, 2014, 2015, 2016
• Hyundai Genesis 2013, 2014, 2015, 2016, 2017
• Hyundai Sonata 2015, 2016, 2017
• Chevy Malibu 2013, 2014, 2015, 2016
• Cadillac ATS 2013, 2014
• Ford Focus RS ST 2015, 2016, 2017
• Jaguar XF XFR 2012, 2013, 2014, 2015
• Jaguar XK XKR 2012, 2013, 2014, 2015
• Land Rover Range Rover Evoque 2012, 2013, 2014
• Land Rover Discovery LR4 4 2009 2010 2011 2012 2013 2014 2015 2016
• Land Rover LR2
• HSE TDV6 5.0L V8 3.0L SCV6 SCV6 2.7L SDV6 Sport HSE HSE LuxHSE Luxury SE
• GMC Yukon Denali 2015, 2016, 2017
• Ford Focus MK3 C346 Titanium X edition
• Ford Focus MK3 C346 Titanium X 1.5 Tdci diesel 2016
• Ford Focus RS 2.3T EcoBoost 2015 2016 2017 2018
• Petrol Gasoline

Please note: This list is not full, it may fit other vehicles as well, please check part numbers, pictures and if they match, it will definitely fit.
