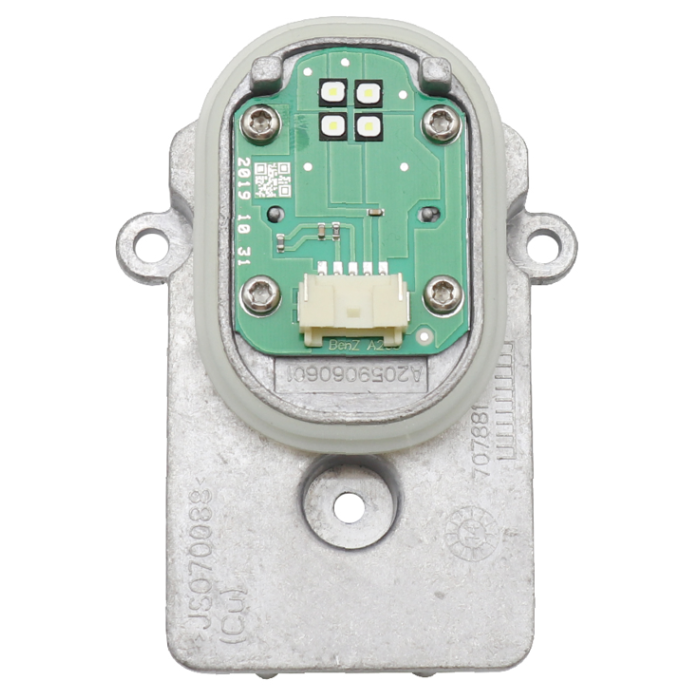

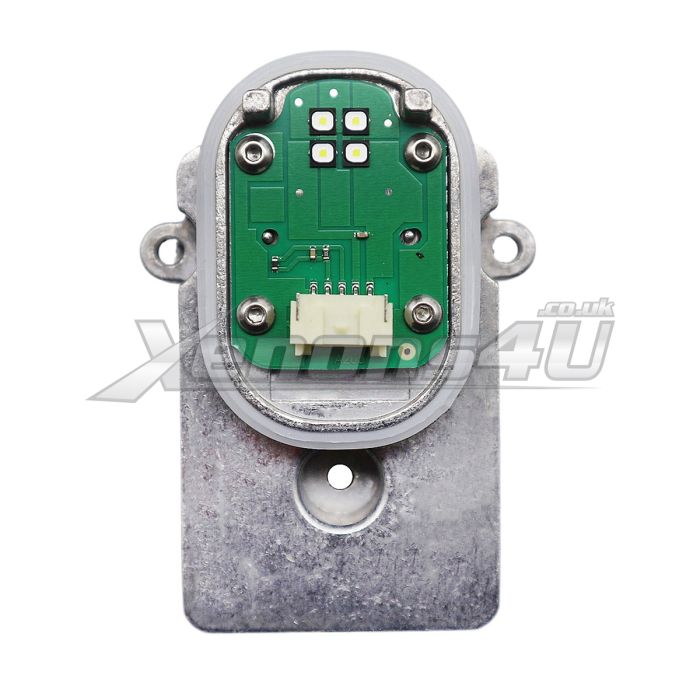

1305715284 A2059060601 LED Module Unit

1305715284 A2059060601 LED diode Light source module unit

AL 1305715284 LED module is factory fitted on mercedes-benz GLA X156 SUV, C-class W205 S205 A205 C205 and S-class W222 A217 C217 cars with LED High Performance and or ILS Intelligent Light System headlights.

Mercedes 1305715284 LED diode module is responsible for emmiting light to the Daytime Running Lights in short DRL.

If daytime running lights have failed and you see on-board computer error, we always suggest firstly to check fuses, later on remove 1305715284 led unit and put into other working side and see it that works or not as it might be that LED control unit has failed as well.

No coding is required - unscrew bolts, put new part back and you're ready to go.

Direct replacement to old faulty genuine AL 1305715284 Mercedes-Benz A2059060601 LED headlight module.

The most common diagnostic trouble fault codes

• B285711 The output for standing light1 has malfunction. There is a short circuit to ground
• B286011 The output for the daytime running light has a malfunction. There is a short circuit to ground
• B285713 The output for standing light 1 has a malfunction. There is an open circuit
• B286013 The output for the daytime running light has a malfunction. There is an open circuit

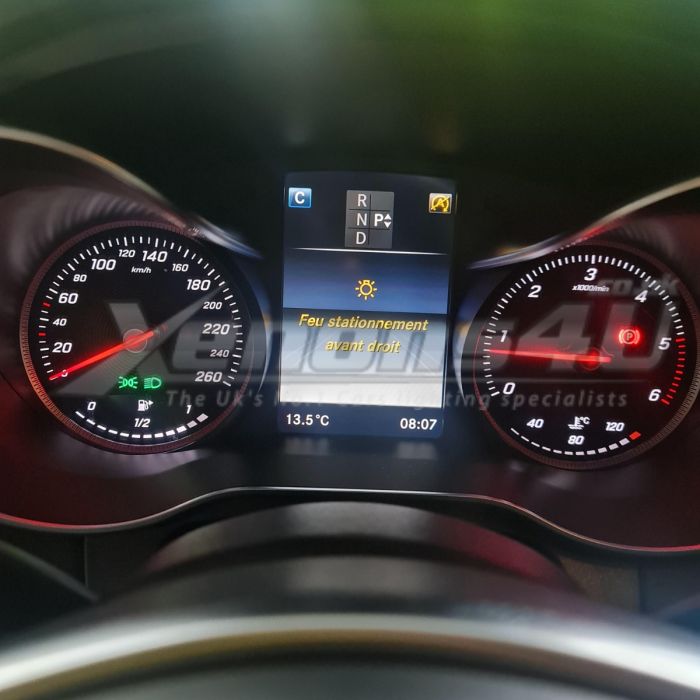

The most common Mercedes-Benz warning messages

• Front left parking lamp
• Front right parking lamp

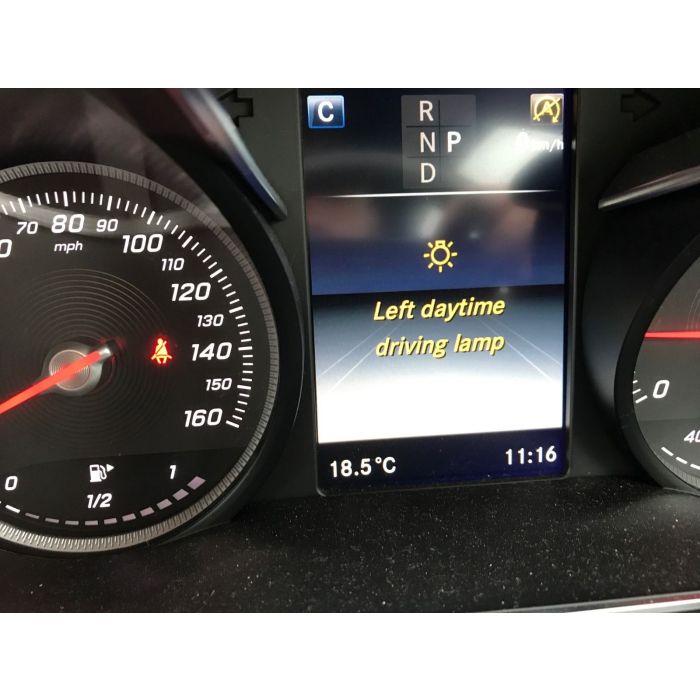

• Left daytime driving lamp
• Right daytime driving lamp
• Luz estacionamiento delantera izquierdo
• Luz estacionamiento delantera derecha
• Luz de marcha diurna izquierdo
• Luz de marcha diurna derecha

LED module's specification:

• 911 00
• M7HN 0000
• P130867
• MD E1 3504
• 13.6V 12W
• 13,6V 1,2W

Mercedes Benz part numbers:

• A205 906 06 01
• A2059060601
• MA2059060601

AL part number:

• 1 305 715 284
• 1305715284

Compatible Mercedes-Benz C class W205 S205 C205 A205 LED high performance headlamps

• Mercedes-Benz A205 906 95 04 A2059069504
• AL 0 301 284 634 08  030128463408
• Mercedes-Benz A205 906 95 04 A2059069504
• AL 0 301 284 633 08 030128463308
• Mercedes-Benz A2059063903 A205 906 39 03
• AL 0 301 284 633 06 030128463306
• Mercedes-Benz A2059064003 A205 906 40 03
• AL 0 301 284 634 06 030128463406
• Mercedes-Benz A2059067603 A2059067603
• AL 1 307 024 433 03 130702443303
• Mercedes-Benz A205 906 75 03 A2059067503
• AL 1 307 024 432 03 130702443203
• AL 1 307 024 438 03 130702443803
• Mercedes-Benz A205 906 94 04 A2059069404
• Mercedes-Benz A2059063803 AL 030128423406

Compatible Mercedes-Benz C class W205 S205 C205 A205 ILS LED Headlamps

• A2059060705 030128463207
• A2059062804 030128463407
• A2059060605 030128463107

Mercedes-Benz compatibility list

• GLA X156 SUV Facelift 2015 2016 2017 2018 2019
• GLA180d GLA200d GLA200d GLA220d CDI diesel
• GLA180 GLA200 GLA220 GLA250 GLA45 AMG 4MATIC
• Petrol Gasoline AMG Line
• C Class W205 Saloon Sedan Pre-Facelift
• 2013 2014 2015 2016 2017
• C Class S205 Wagon Estate T-Model
• 2013 2014 2015 2016, 2017
• C Class C205 Coupe
• 2013 2014 2015 2016, 2017
• C Class A205 Convertible Cabriolet
• 2014 2015 2016 2017
• C180d C200d C220d C250d diesel BlueTEC
• C300 C350e Plug-in Hybrid
• C160 C180 C200 C250 C300 C400 C450
• C43 C63 AMG Petrol Gasoline
• 4Matic AMG Line
• S class C217 Coupe 2014 2015 2016 2017
• S class A217 Convertible Cabriolet 2014 2015 2016 2017
• S class W222 Saloon Sedan 2014 - 2017
• S400 S500 S550 S600 S63 S65 AMG 4MATIC Petrol Gasoline
• S300h S400h S500e Plug In Hybrid Electric EV
• S350d BlueTEC 4MATIC diesel

Please note: this list is not full and xenon control unit fits many other car models as well even if they are not listed here.
