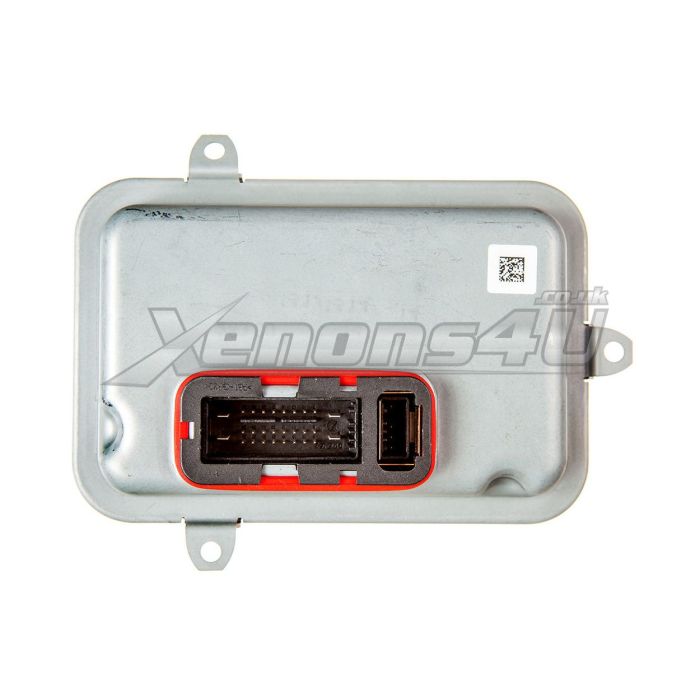

130732923100 A2219005700 Xenon Ballast

130732923100 A2219005700 Xalwa Xenon Ballast Control Unit

AL 130732923100 Xalwa module is factory fitted on Mecedes-Benz S Class W221 Facelift and CL C216 cars with active xenon light headlights.

If Xenon headlights don't work anymore at all or turn on and shut down without any reason, it could be that 130732923100 Control Unit needs to be replaced.

Direct replacement to faulty genuine Mercedes-Benz A2219005700 AL 130732923100 xenon headlamp ballast.

The most common diagnostic trouble codes DTCs

• D1A400 Communication with control unit Left headlamp range adjustment has a malfunction
• 9053 Xenon headlights Left Open Circuit or No Feedback xenon
• 5001 Control unit XALWA - L is defective
• 500E Component E1M2 (Left dynamic curve illumination motor) or the lead is faulty
• 5020 The xenon lamp is inoperative on one side

The most common Mercedes-Benz warning messages

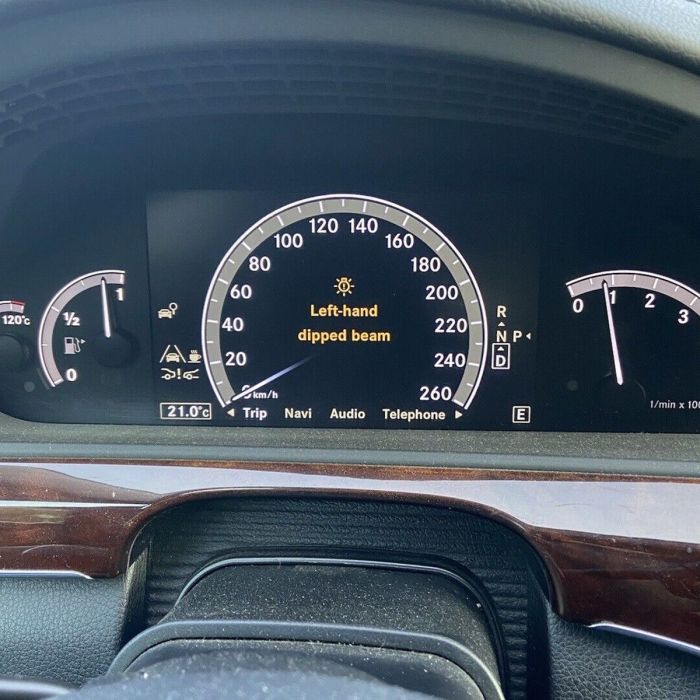

• Left-Hand dipped beam

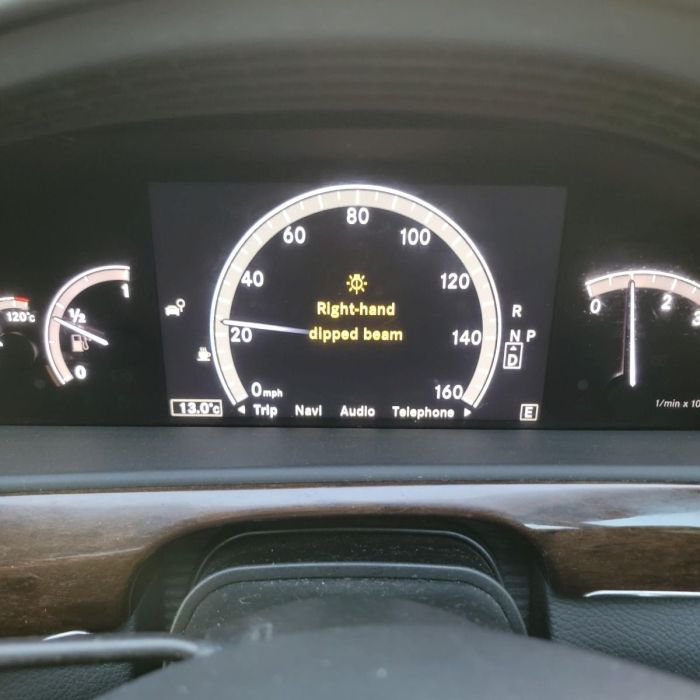

• Right-Hand dipped beam
• Fari attivi guasti
• Anabbagliante sinistro
• Anabbagliante destro

Software and hardwarde part numbers

• HW A2218708795
• SW A2219026000

Mercedes Benz part numbers:

• A2219005700
• LU A2219005700
• LUA2219005700

AL part numbers:

• 130732923100
• 10EEG081374

More compatible part numbers

• 130732929601 10EEG100105
• 130732929602 10EEG100886
• A216 900 90 00 A2169009000
• HW A2169010100
• SW A2169022500
• A216 900 91 00 A2169009100
• A216900910080
• MA216900910080
• MA2169009100
• 130732923101 10EEG081656
• A2219000701
• A221 900 07 01
• HW A2218708795
• SW A2219020001
• 1 307 329 231 01
• 130732923800
• 10EEG081371
• LU A2168704626
• HW A2168704726
• SW A2164420103

Mercedes-Benz compatibility list

• S Class W221 Facelift 2010 2011 2012 2013
• S280 S300 S350 S450 S500 S550 S600 S63 S65 AMG
• Petrol Gasoline BlueEfficiency
• S400 Hybrid
• S250 S300 CDI S300 BlueTEC Hybrid S350 S450 CDI 4AMTIC diesel
• CL class C216 Coupe 2007 2008 2009 2010 2011 2012 2013
• CL500 CL600 CL63 CL65 AMG Petrol Gasoline
