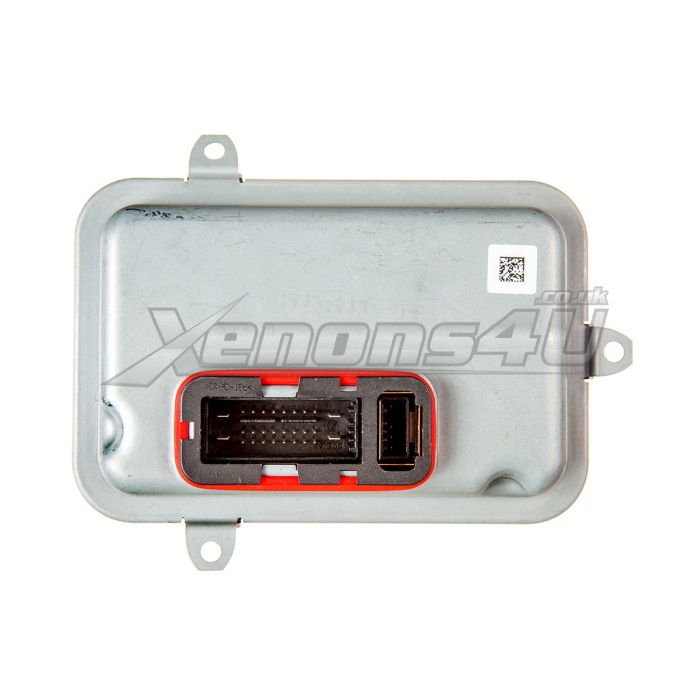

130732923101 A2219000701 Xenon Ballast

130732923101 A2219000701 Xalwa Xenon Ballast Control Unit

AL A2219000701 Xalwa factory fitted on Mecedes-Benz S Class W221 Facelift and CL C216 cars with active xenon light headlights.

If you HID bulbs don't work anymore at all or turn on and shut down without any reason, it could be that 130732923101 Control Unit needs to be replaced.

Part is suitable for different Mercedes-Benz vehicles with D1S Bi-Xenon lights and without active lights.

Part number A2169009100 replaces A2219000701 and A2169009000.

Mercedes Benz cars must have HID headlamps and curve lighting.

Curve lighting is also known as active light and it means when you turn steering wheel to either left or right side light moves to the same direction as well.

Direct replacement to old faulty genuine mercedes-benz AL xenon headlamp module.

The most common diagnostic trouble codes DTCs

• D1A400 Communication with control unit Left headlamp range adjustment has a malfunction
• 9053 Xenon headlights Left Open Circuit or No Feedback xenon
• 5001 Control unit XALWA - L is defective
• 500E Component E1M2 (Left dynamic curve illumination motor) or the lead is faulty
• 5020 The xenon lamp is inoperative on one side

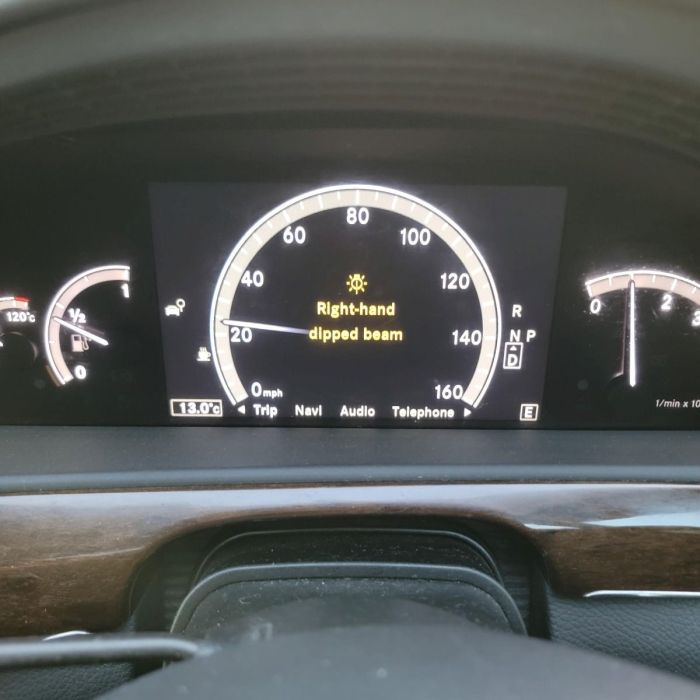

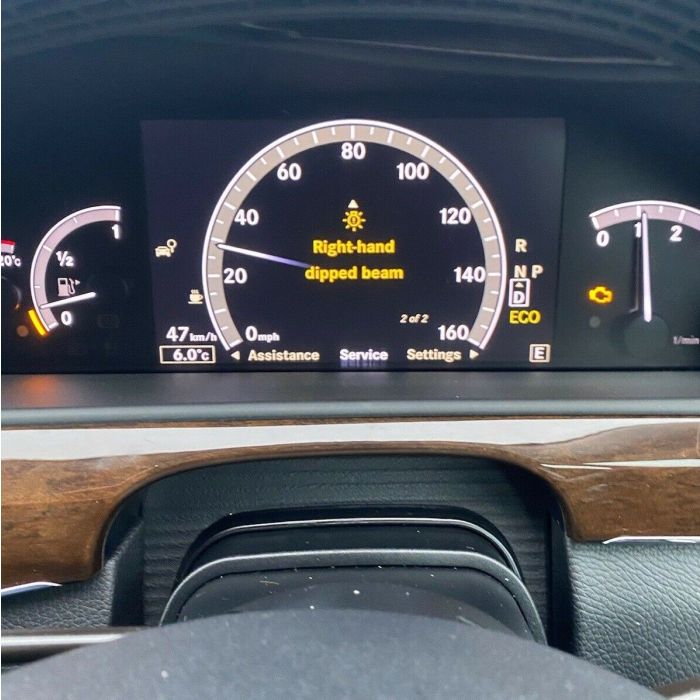

The most common Mercedes-Benz W221 Facelift CL C216 warning messages

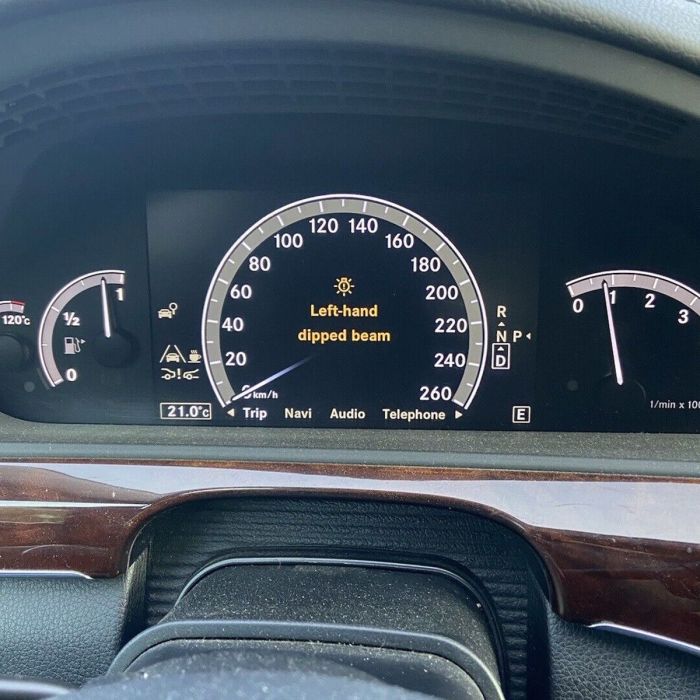

• Left-Hand dipped beam
• Right-Hand dipped beam
• Fari attivi guasti
• Anabbagliante sinistro
• Anabbagliante destro

Software and hardwarde part numbers

• HW A2218708795
• SW A2219020001

Mercedes Benz part numbers:

• A2219000701
• A221 900 07 01

AL part numbers:

• 1 307 329 231 01
• 130732923101
• 10EEG081656

More compatible part numbers

• 130732929601 10EEG100105
• 130732929602 10EEG100886
• A216 900 90 00 A2169009000
• HW A2169010100
• SW A2169022500
• A216 900 91 00 A2169009100
• A216900910080
• MA216900910080
• MA2169009100
• 130732923101 10EEG081656
• A2219000701
• HW A2218708795
• SW A2219020001
• 130732923100 10EEG081374
• HW A2218708795
• SW A221902600
• A2219005700
• LU A2219005700
• LUA2219005700
• LU A2168704626
• HW A2168704726
• SW A2164420103
• 130732923800
• 10EEG081371
• LU A2218703393
• HW A2218703493
• SW A2224420103
• Muster D30191640500

Compatible Mercedes-Benz S class W221 Facelift Xenon headlamps

• A2218206759 030125268126
• A2218206339
• A2218201339
• A2218201439

Compatible Mercedes-Benz CL C216 Xenon headlamps

• A2168201639 030126068106
• A2168204561
• A2168204661

Mercedes-Benz compatibility list:

• S Class W221 Facelift 2010 2011 2012 2013
• S280 S300 S350 S450 S500 S550 S600 S63 S65 AMG
• Petrol Gasoline BlueEfficiency
• S400 Hybrid
• S250 S300 CDI S300 BlueTEC Hybrid S350 S450 CDI 4AMTIC diesel
• CL class C216 Coupe 2007 2008 2009 2010 2011 2012 2013
• CL500 CL600 CL63 CL65 AMG Petrol Gasoline
