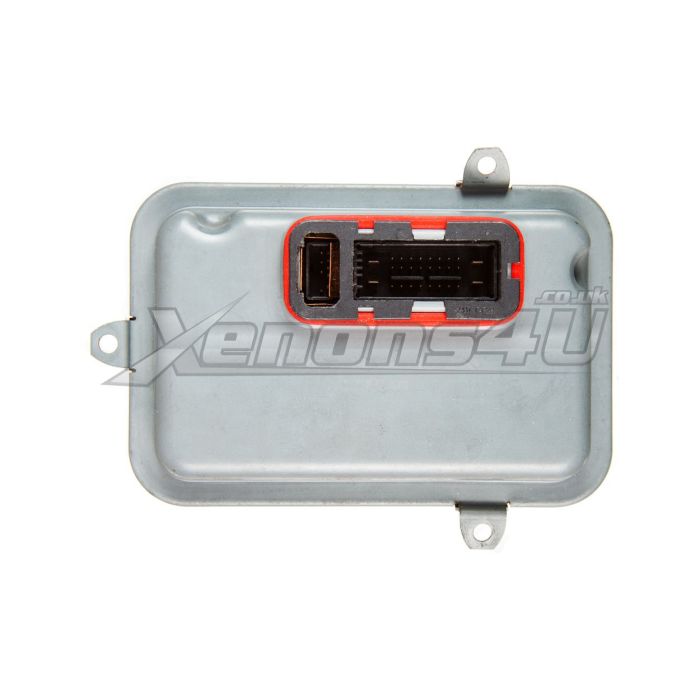

130732925700 1K0941329 Xenon Ballast

130732925700 1K0941329 Xenon Light Ballast Control Unit

AL 130732925700 factory fitted on VW Passat CC 3C, Touran and Skoda Yeti cars with xenon headlights and D1S 35W HID bulbs.

If you HID bulbs don't work anymore at all or turn on and shut down without any reason, it could be that 130732925700 ALN 10EEG100058 Control Unit needs to be replaced.

Additionally this part has cornering light function also known as AFS.

Information from original sticker: ALN 10EEG100058 made in france.

130732925700 Xenon Control Unit supersedes 1307329120.

Direct replacement to old faulty genuine AL 130732925700 10EEG100058 1K0941329 Xenon headlamp ballast.

The most common diagnostic trouble fault codes DTCs

• 00979 Bulb Right Dipped Light M31 Open Circuit/Short with Power
• 00979 Lamp for Low Beam; Right (M31): Open or Short to Plus
• 00978 Bulb Left Dipped Light M29 Open Circuit/Short with Power
• 00978 Lamp for Low Beam; Left (M29): Open or Short to Plus

The most common Skoda VW Volkswagen warning messages

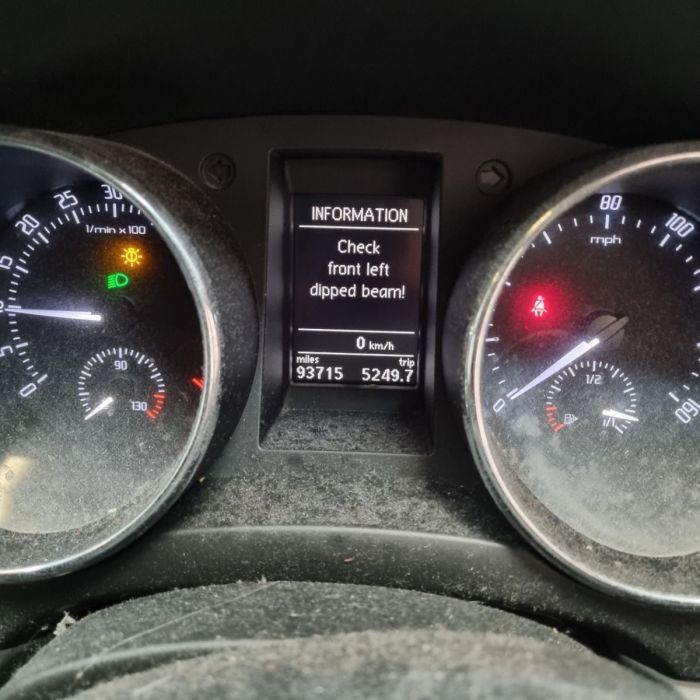

• Check front left dipped beam!

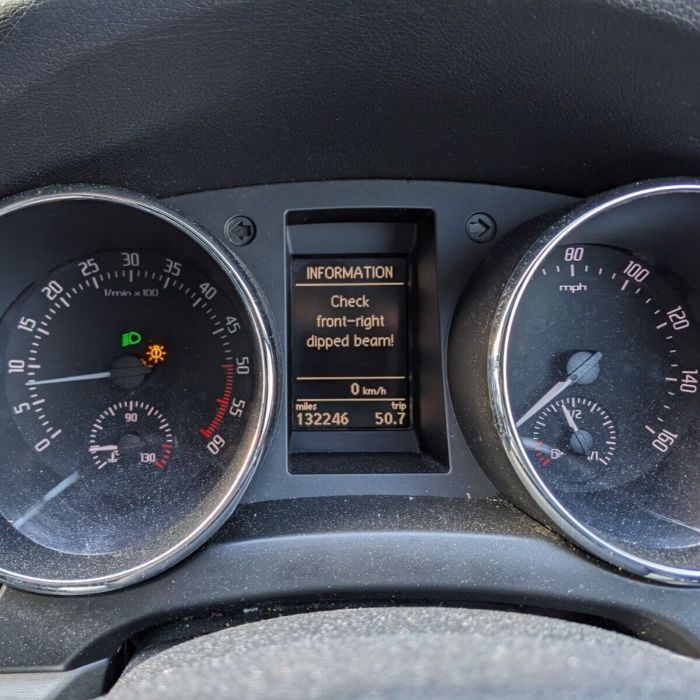

• Check front right dipped beam!

Skoda part numbers

• 5L0 941 641 A
• 5L0941641A

VW Volkswagen part numbers

• 1K0 941 329
• 1K0941329

AL part numbers

• 1 307 329 257 00
• 130732925700
• 10EEG100058

More compatible part numbers

• 130732925701
• 10EEG120433
• 1307329120
• 1 307 329 120
• 10EEG071614

Compatible Skoda Yeti 5L headlights

• Skoda 5L2 941 016 B 5L2941016B
• AL 0 301 248 321 00 030124832100
• Skoda 5L2 941 015 A 5L2941015A

Compatibility list:

• Skoda Yeti 5L 2010, 2011, 2012, 2013
• VW Touran Facelift 1T MPV
• 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
• VW Passat CC 3C  with cornering light function (AFS)
• 2008 2009 2010 2011 2012
