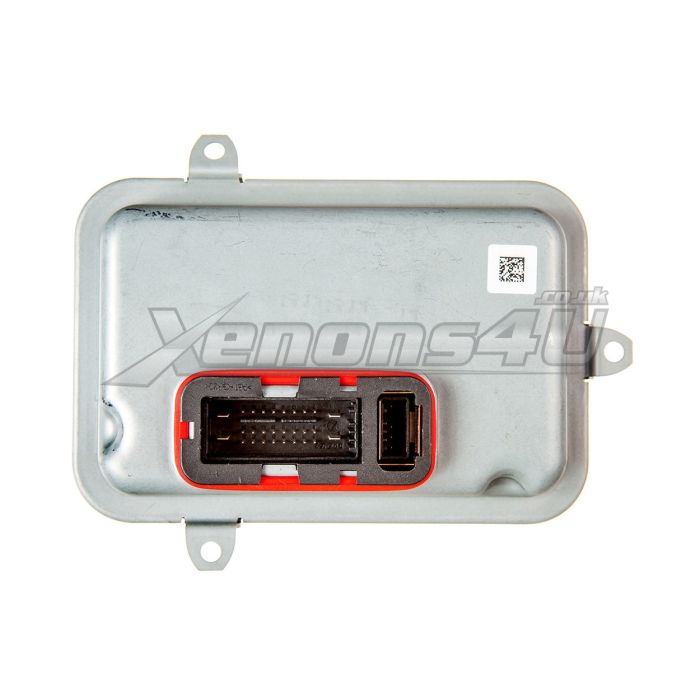

130732925701 1K0941329 Xenon Ballast

130732925701 10EEG120433 1K0941329 Xenon Ballast Control Unit

AL 130732925701 control unit is factory fitted on VW Passat CC 3C, Touran and Skoda Yeti cars with xenon headlights and D1S 35W HID bulbs.

If you Gas Discharge HID bulbs don't work anymore at all or turn on and shut down without any reason, it could be that 130732925701 ALN 10EEG120433 xenon light control unit needs to be replaced.

Additionally this part has cornering light function also known as AFS.

No programing or coding will be required.

130732925701 Xenon Control Unit supersedes 130732925700.

Direct replacement to old faulty genuine AL 130732925701 10EEG120433 xenon headlamp ballast.

The most common diagnostic trouble fault codes DTCs

• 00979 Bulb Right Dipped Light M31 Open Circuit/Short with Power
• 00979 Lamp for Low Beam; Right (M31): Open or Short to Plus
• 00978 Bulb Left Dipped Light M29 Open Circuit/Short with Power
• 00978 Lamp for Low Beam; Left (M29): Open or Short to Plus

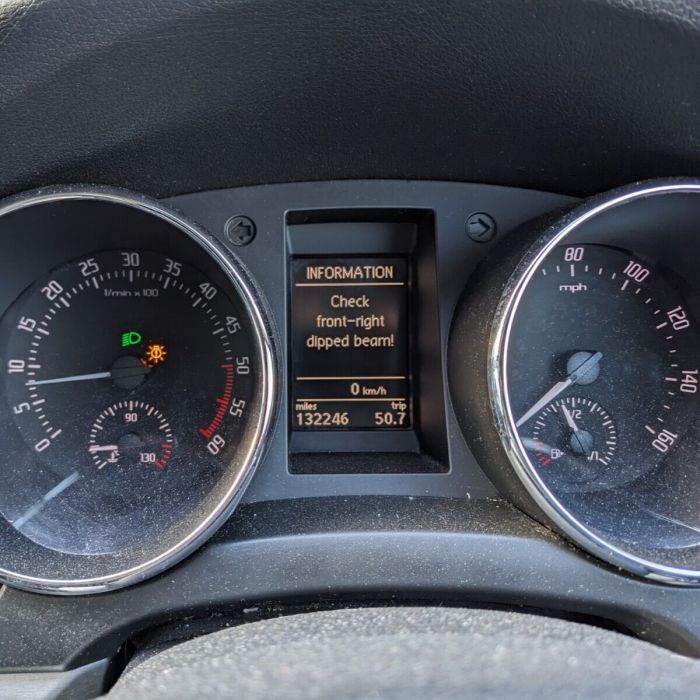

The most common Skoda VW Volkswagen warning messages

• Check front left dipped beam!
• Check front right dipped beam!

The most common Skoda Yeti 5L Pre-Facelift warning messages

• No bend lighting (AFS) Function.
• Owner's manual

AL part numbers:

• 1 307 329 257 01
• 130732925701
• 10EEG120433

Skoda part numbers

• 5L0 941 641 A
• 5L0941641A

Volkswagen VW part numbers

• 1K0 941 329
• 1K0941329

More compatible part numbers:

• 1 307 329 257 00
• 130732925700
• 10EEG100058
• 1307329120
• 1 307 329 120
• 10EEG071614
• 130732925701
• 10EEG120433

Compatible Skoda Yeti 5L Pre-Facelift Xenon headlamps

• 5L2 941 016 B 5L2941016B 030124868200
• 5L2 941 015 A 5L2941015A 030124832100
• 5L2941015B 030124868100
• 5L1941016B
• 5L1941017C
• 5L1941015B
  5L1941017B
• 5L2941016A
• 5L1941018C
• MAGNETI MARELLI 711307023421
• MAGNETI MARELLI 711307023320

Compatibility list:

• Skoda Yeti 5L Pre-Faceleift
• 2010 2011 2012 2013
• VW Touran Facelift 1T MPV
• 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
• VW Passat CC 3C  with cornering light function (AFS)
• 2008 2009 2010 2011 2012
