202484-00 198389-00 LED Modules
£49.99
In stock
- What's Included: 2 LED Modules
- Condition: New
- Warranty: 1 Year
- 3 PIN module - 198389-00
- 6 PIN module - 202484-00
- BMW part number: 63117419615
- Hella part number: 202484-00 198389-00
- Placements: Left or Right side

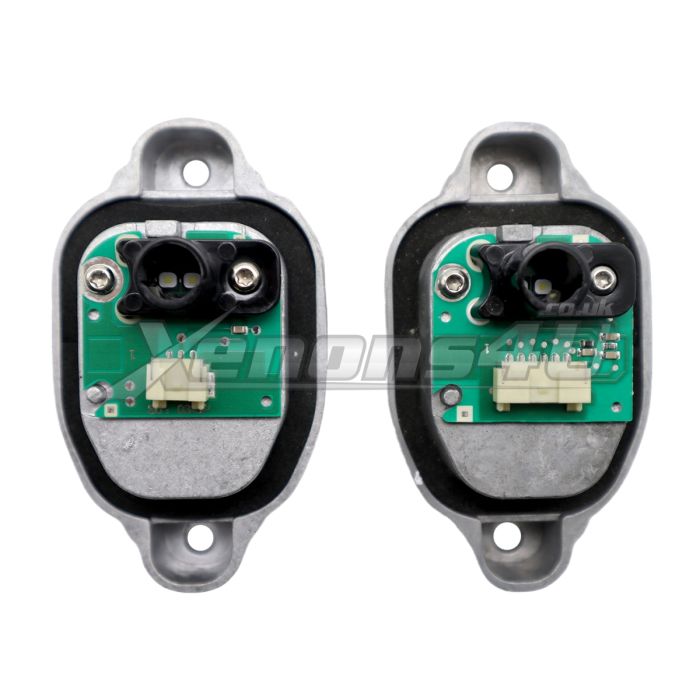

Two 202484-00 198389-00 LED light diode modules
Two type of LED headlamp modules one with 3 PIN and another with 6 PIN connector.
202484-00 LED module is factory fitted on BMW 3 series F30 F31 F80 M3 LCI Facelift cars with LED headlights.
LED diode's light source is used for Daytime Driving Lights also known as Halo Rings (Angel Eyes) and other one is used for parking lights.
Original part was manufactured by hella 202484-00, but our part will fit and work perfectly.
BMW catalog part number for set of modules are 63117419615 and 63117419610 for set of small led modules.
No coding is required after replacing 202484-00 LED source light ballast.

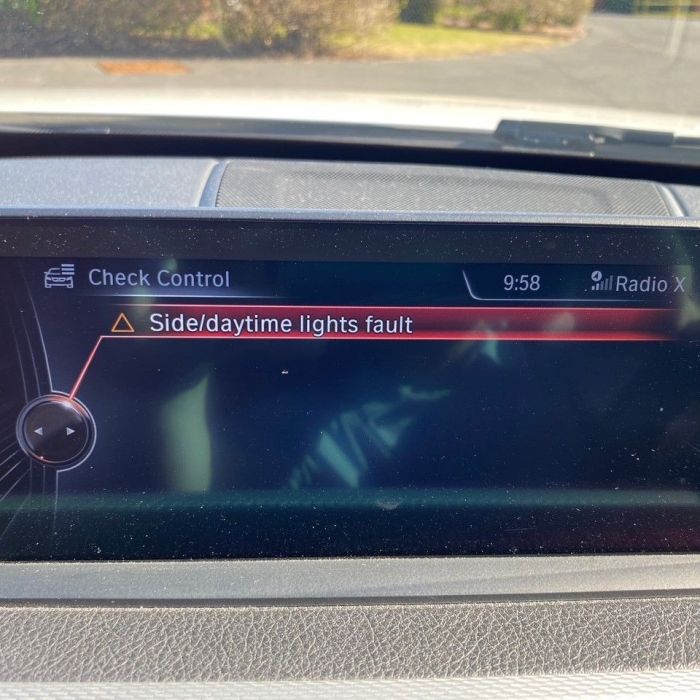

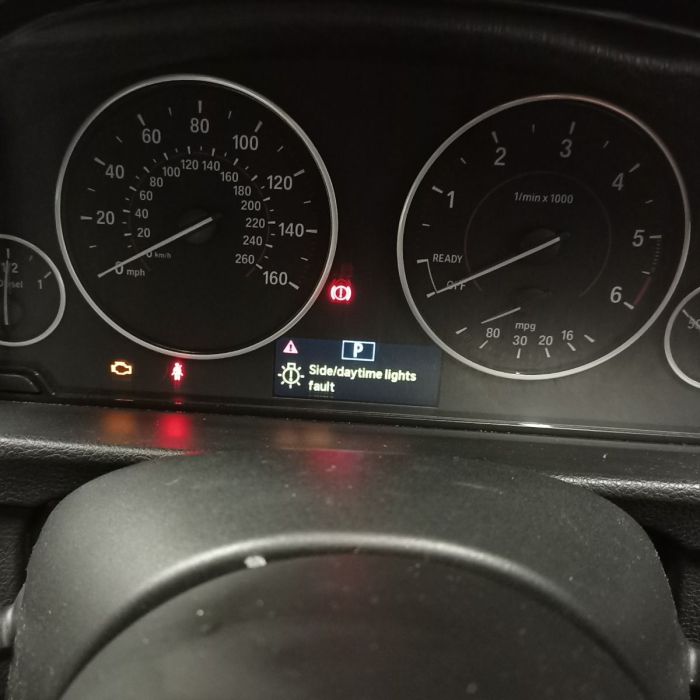

The most common BMW warning messages
- Lighting system
- Side/daytime lights fault
- Daytime/Parking lamp malfunction
- Feu position/eclairage de jour defectueux
- Systeme d'eclairage avant gauche defect
- Systeme declairage avant gauche defect
- Systeme d'eclairage avant droite defect
- Systeme declairage avant droite defect
The most common diagnostic trouble codes DTCs
- LHML (LED Main light module, Left) 1 problem exists
- LHML (LED Main light module, Right) 1 problem exists
- 805CBC Daytime Driving lights: Open Circuit
- 805CBC DRLs: Open Circuit
- 805E3C Daytime driving lights: open circuit
- 805E3C Daytime Running Lights: line interruption
- 805E67 Parking Light: function defective
- 805E6B Parking Light: function defective
- 805E32 Daytime running lights: function defective
Hella part numbers:
- 202484-00 for 6 PIN
- 20248400 for 6 PIN
- 198.389-00 for 3 PIN
- 198389-00 for 3 PIN
- 4302016 for 3 PIN
BMW part numbers
- 63117419615 for full set
- 63117419610 for small modules
Compatible BMW 3 series F30 F31 LCI LED headlamps
- 1LX012102-24/AA 7498948-01
- 1EX012102-01/AN 7453481-02
- 1LX012102-43/AB 8738713-02
- 1EX012102-02 7419634-01
- 1LX012102-03/AP 7471307-01
Compatible BMW cars
- 3 series F30 LCI Facelift Saloon 2015 2016 2017 2018 2019
- 3 series F31 LCI Facelift Esate 2015 2016 2017 2018 2019
- 3 series F80 M3
- 318i 320i 330i 340i 330e M-Sport M3 petrol gasoline
- 316d 318d 320d 325d 330d 335d xDrive diesel
