3D0941329B AFS Leistungsmodul Module
- What's Included: 1 AFS Module
- Condition: New
- Warranty: 1 Year
- Manufacturer: Xenons4U
- VAG Part number: 3D0941329B
- Valeo part number: 90024756 89503912 90024756
- Positions: Front Headlights Left or Right side

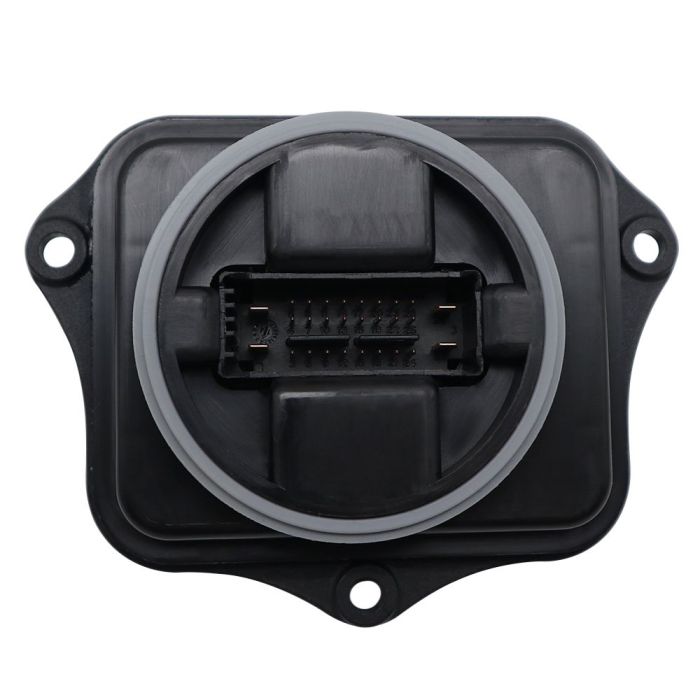

3D0941329B AFS Leistungsmodul module
Valeo 3D0941329B AFS headlight cornering unit is used only with vehicles, which have HID Xenon lights and light movement function.
If your Xenon Lights movement has stopped to work and you see on-board computer error, it means that this AFS 3D0 941 329B module has failed and needs to be replaced with new.
Mostly of the times once you turn on Xenon Headlights the light will point downwards and not come up.
No need to buy new headlamp unit, just replace this faulty AFS ballast 3D0941329B.
Information from original sticker: made in hungary 5vr h04 s0012 90024756.
Valeo 3D0941329B ballast is direct replacement for your old part and no modifications or coding will be required.
The most common diagnostic trouble codes dtc
- 55 Headlamp Range Control
- C108313 Left Stationary AFS - Open Circuit
- C108413 Right stationary AFS - Open circuit
- C108231 - Right headlamp power output stage No signal
- C1082F0 - Right headlamp power output stage
- C108131 - Left headlamp power output stage No signal
- C1081F0 - Left headlamp power output stage
The most common VW Volkswagen warning messages
- Error: Adaptive front lighting (AFS)
- Error: Cornering light (AFS)
- Cornering light (AFS) failure Owner's manual
- Adaptive front lighting syst. (AFS) failure Owner's manual
- Error: Bend lighting (AFS)

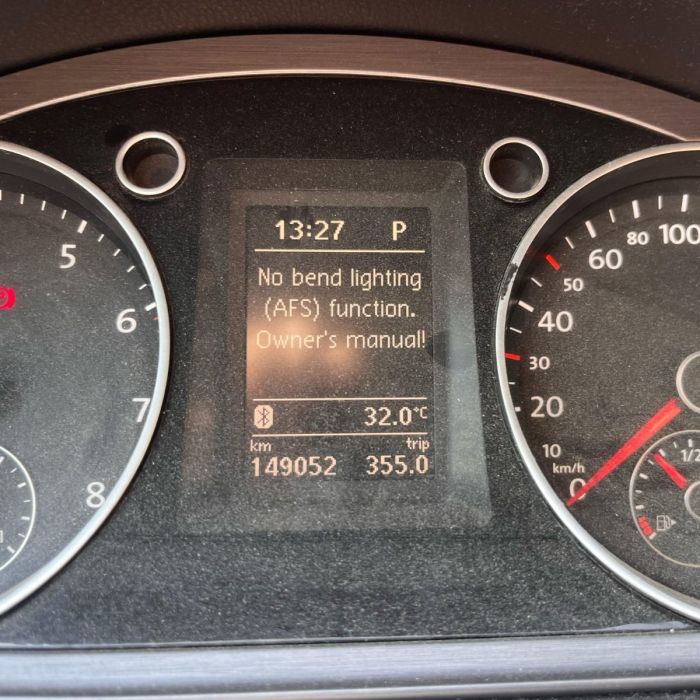

- No bend lighting (AFS) function. Owner's manual!
- Kurvljus fungerar inte instruktionsbok!
- Kurvljus utan funktion. Instruktionsbok!
- Fel: Kurvljus (AFS)
- Kurvenlicht (AFS) ohne Funktion. Bordbuch!
- Fehler: Kurvenlicht (AFS)
- Erro: Luz de curva (AFS)
- Defaut: eclairage adaptatif (AFS)
- Eclairage adaptatif (AFS) hors fonction. Livre de Bord!
- Luz de curva (AFS) nao funciona. Livro de Borda!

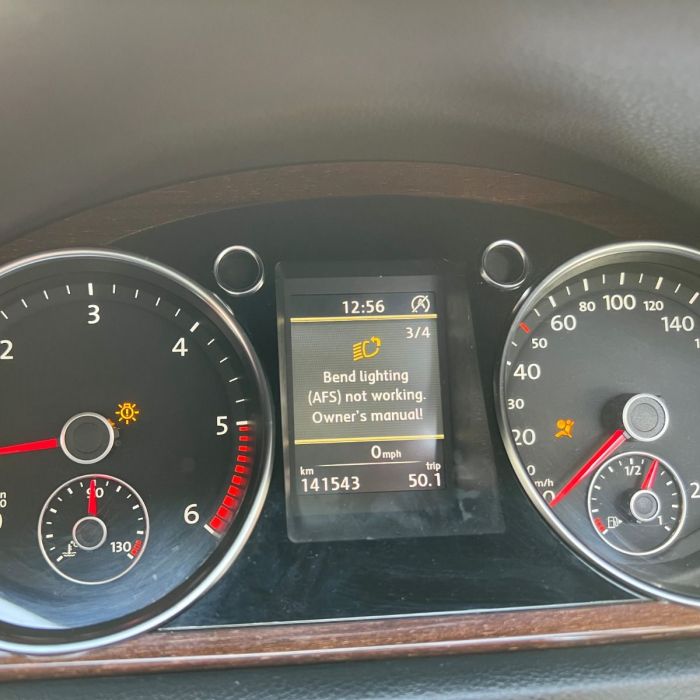

- Bend lighting (AFS) not working. Owner's manual!
- AFS Inoperative! See Owner's Manual
- Error: Adaptive Front Lighting system (AFS)
- Vika: kaarreajovalot (AFS)
- Error: Luz de curva (AFS)
Valeo part number:
- 90024756
- 89503912
- 90024756
VAG part numbers:
- 3D0 941 329B
- 3D0941329B
Compatible VW Passat B7 362 365 Headlamps
- Valeo 90005336 3AC 941 751 3AC941751
- Valeo 90005337 3AC 941 752 3AC941752
More compatible part numbers
- 3D0941329C
- 89503911
Compatible cars
- VW Volkswagen Passat 362 B7 Saloon Sedan
- VW Passat 365 B7 Estate Wagon
- 1.6L 2.0L TDI diesel
- 4MOTION R-Line
- VW Golf MK7 VII 5G BQ1 BE1 BE2
- 2013 - 2017
- VW Scirocco MK3
