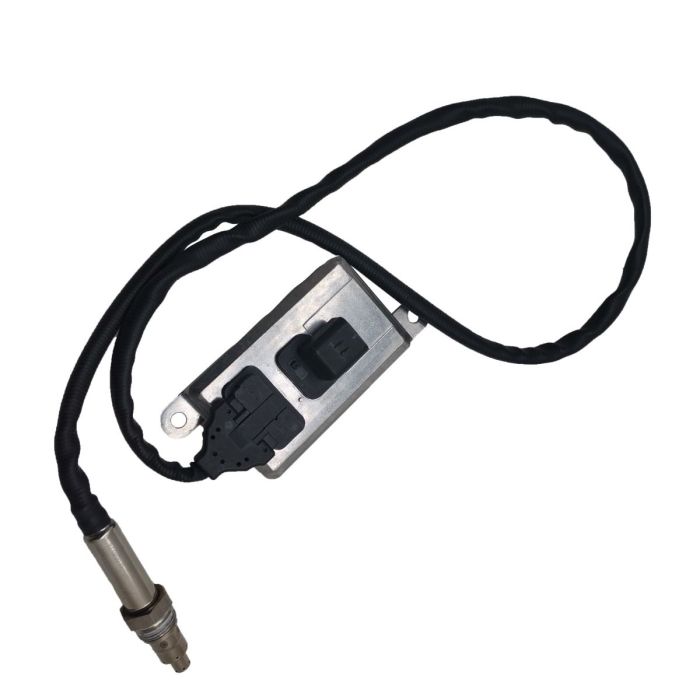

441-5128-04 A2C10474800-126B NOx sensor

441-5128 Rev04 441-5128-04 A2C10474800-126B NOx sensor

Continental NOx sensor position on CAT machine is at Exhaust pipe out (exhaust outlet).

441-5128-04 Nitrogen Oxide sensor is direct replacement to CAT (caterpillar) or continental brand part.

If you have did on-board computer scan after seeing check engline light on the dashboard and your machine shows any fault code from the list below, then it means nitrogen oxide sensor has failed.

There is no need to spend a fortune for original continental part at dealer, when replacement part will do a job.

It is always recommended to fix this issue as soon as possible to avoid any damages to DPF filter, otherwise diesel particulate matter or soot can clog filter and it will cost you thousands to fix.

NOX stands for Nitrogen Oxide.

Error cleaning may be required, but just once after fitting new NOX sensor, it can be done by yourself, no need to visit dealer.

441-5128-04 A2C10474800-126B sensor fits many different CAT machines.

Sensor is also kwown as control unit with nox-sensor for emissions control.

DPF means diesel particulate filter.

What does nox sensor do ?

A nitrogen oxide sensor in short NOX is high temperature part is used in cars to detect and measure out amount of this compound (nitrogen oxides) coming out of exhaust system to ensure, it is mostly found in diesel cars.

Replacement sensor probe with ballast unit will save you a fortune, solve your NOX problems and you will comply with enviromental emissions laws again.

Dealer will charge you over £500 for a single sensor.

You will find a list of the the most common error codes of nox sensor circuit faults.

The most common diagnostic trouble codes DTCs for Hyundai

• SPN: 5246 Aftertreatment SCR Operator Inducement – Data Valid But Above Normal Operating Range – Most Severe Level. Critical SCR related fault codes have been active for an extended period of time and require immediate attention.
• SPN: 3226 Aftertreatment 1 Outlet NOx Voltage Below Normal

The most common diagnostic trouble codes DTCs for CAT Caterpillar

• 3216-11 Aftertreatment #1 Intake NOx : Other Failure Mode
• 3655-11 Aftertreatment #1 Intake NOx Level Sensor : Other Failure Mode
• 3216-12 Aftertreatment #1 Intake NOx : Failure
• 3655-12 Aftertreatment #1 Intake NOx Level Sensor : Failure
• 3226-11 Aftertreatment #1 Outlet NOx : Other Failure Mode
• 3226 Aftertreatment 1 Outlet NOx Voltage below normal or shorted low
• 3226 NOx sensor downstream too low value
• 3609-11 Aftertreatment #1 Outlet #1 NOx Level Sensor : Other Failure Mode
• 3226-12 Aftertreatment #1 Outlet NOx : Failure
• 3609-12 Aftertreatment #1 Outlet #1 NOx Level Sensor : Failure
• 3609-12 Aft #1 outlet #1 Nox level sensor: Failure
• E1410 Aftertreatment #1 conversion efficiency
• E1410 Aft #1 conversion efficiency
• E1389(1) Aftertreatment #1 SCR Operator inducement
• E1389(2) Aftertreatment #1 SCR Operator inducement
• 5856-14 ECM: Aftertreatment ECM
• 5856-14 SAE J1939 Data Link #3: Special instruction
• Fault code J1939: 3002 Engine exhaust NOx level sensor
• 3002-2 Engine Exhaust NOx Level Sensor erratic, intermittent, or incorrect
• 3002-4 Engine Exhaust NOx Level Sensor voltage below normal
• 3002-6 Engine Exhaust NOx Level Sensor current above normal
• 3002-9 Engine Exhaust NOx Level Sensor abnormal update rate
• 3002-12 Engine Exhaust NOx Level Sensor failure
• E717 Engine Exhaust NOx Level Sensor Operating Temperature Not Reached
• E727 Engine Exhaust Emissions Feedback Feature Manually Disabled
• 3002-2 - The NOX sensor informs the ECM that the data from the sensor is incorrect.
• 3002-4 - The NOX sensor informs the ECM that the sensor supply voltage is out of specifications.
• 3002-6 - The ECM has detected a short circuit in the voltage supply that is for the NOX sensor.
• 3002-9 - The ECM cannot communicate with the NOX sensor. There may be a problem in the circuit that is for the CAN data link.
• 3002-12 - The NOX sensor reports an internal fault to the ECM
• E1309 Low Aftertreatment #1 SCR Catalyst Conversion Efficiency
• E1389 FMI: 1 x1 Nabehandelsysteem uitlaatgassen 1. Aansporing van de bediener

CAT part numbers:

• 441-5128 Rev04
• 441-5128-04
• 441512804

Continental part number:

• A2C10474800-126B
• A2C10474800126B
• A2C1047480030

Perkins oem part number:

• T421092

More compatible part numbers:

• 359917202
• 359-9172-02
• 5WK96726A

Compatible CAT Caterpillar machines:

• CAT 325FL 325F L Digging Machine Excavator
• Perkins Engine
• CAT 730C2
• CAT 905 Compact Wheel Loader
• 950M Wheel Loader
• Earthmoving Compactor
• 815K 816K 825K 826K 836K
• Wheel-Type Loader
• 926M 930M 938M 950 GC Z 962M 962M Z 966M 966M XE 972M 972M XE 980M 982M 986K 988K 988K XE 994K
• Petroleum Products
• C175-16 CX31-P600
• Retrofit Aftertreatment
• SCR
• Engine - Generator Set
• 3516C C13 XQ375 C175-16 C18 C32 G3412 G3512 G3512H G3516C G3516H G3520 G3520H XQ230 XQ425
• Wheel-Type Skidder
• 525D 535D 545D 555D
• Off-Highway Truck
• 770G 772G 785G 793F 794 AC 796 AC 797F 798
• Track-Type Loader
• 953K 963K 973
• Engine - Industrial
• 3512E 3516E C175-16 C175-20 C280-16 C4.4 C7.1 C9.3B G3512H G3606 G3612 G3616
• CAT 745 articulated dump haul truck
• 725 725C 725C2 730 730C 730C2 730C2 EJ 735 735C 740 740 GC 740C 745 745C
• Road Reclaimer
• RM500B
• Cold Planer
• PM620 PM622
• Petroleum
• G3608
• Forest Products
• 2384D 2484D 2570D 2670D 558 559D 563D 573D 579D
• Motor Grader
• 120 12M 3 12M 3 AWD 140 140M 3 140M 3 AWD 14M3 150 16 160 160M 3 160M 3 AWD 16M3 18 18M3 404F-22
• Material Handler
• MH3022 MH3024 MH3026
• Wheeled Excavator
• M314F M316F M318F M320F M322F M323F MH3040
• Paving Compactor
• CCS9 CP-54B CP-56B CP-68B CP-74B CS-54B CS-56B CS-64B CS-66B CS-68B CS-74B CS-76B CS-78B
• Wheel Dozer
• 814K 824K 834K
• Industrial Engine
• C7.1
• Asphalt Paver
• AP-1000F AP-1055F AP500F AP555F AP600F AP655F
• Pipelayer
• PL61 PL72 PL83 PL87
• Excavator
• 312F 313F 313F L 314F CR 315F LCR 316F L 318F L 320 320 GC 320F L 323 323F 323F L 323F LN 323F OEM 323F SA 325F 325F LCR 326F 326F L 326F LN 329F L 330 330 GC 330F 330F L 330F LN 330F OEM 330FMHPU 335F 335F LCR 336 336 GC 336F 336F L 336F L XE 336F LN XE 336F LNXE 336F XE 336FMHPU 340 340F 340F L UHD 349 349F 349F L 349F LXE 352 352F 352F OEM 352F XE VG 352F-VG 352FMHPU 374F 390F 538 558 M315F M317F M318F
• Marine Products
• 3512E 3516C 3516E C280-12 C280-16 C32
• Wheel Tractor-Scraper
• 621K 621K OEM 623K 627K 631K 637K
• Track-Type Tractor
• D5 D6 D6 XE D6K2 D6K2 LGP D6K2 XL D6N D6N LGP D6N XL D6T D6T LGP D6T LGPPAT D6T XL D6T XL PAT D6T XW D6T XW PAT D7E D8T D9T
• Load, Haul, Dump
• R2900
• Hyundai HX140 Perkins engine 2018 2019 2020 2021 2022
• Hyundai HX140L HX140LC HX140HWC Excavator Crawler Digger
• Caterpillar D6TXL D6T XL Crawler Dozer
• CAT 313FL 313F L Hydraulic Excavator
• Caterpillar 966 966M Wheel Loader loading shovel
• Doosan DL200-5 Loader loading shovel with a Perkins 1204F
• Hyundai HX145 HX145LCR HX145 LCR with Perkins 1204F engine
• Crawler Excavator
• 2016 2017 2018 2019 2020 2021 2022
• CAT 336FL XE Hydraulic Excavator 2017
