4G0907697G LTM-2TFL 28548011 28357968 28519705 LED Module
- What's Included: 1 Module
- Condition: New
- Warranty: 1 Year
- Manufacturer: Xenons4U
- Delphi part numbers: 28548011 28357968 28519705
- VAG part number: 4G0907697G
- Placements: Front Headlights Left or Right side

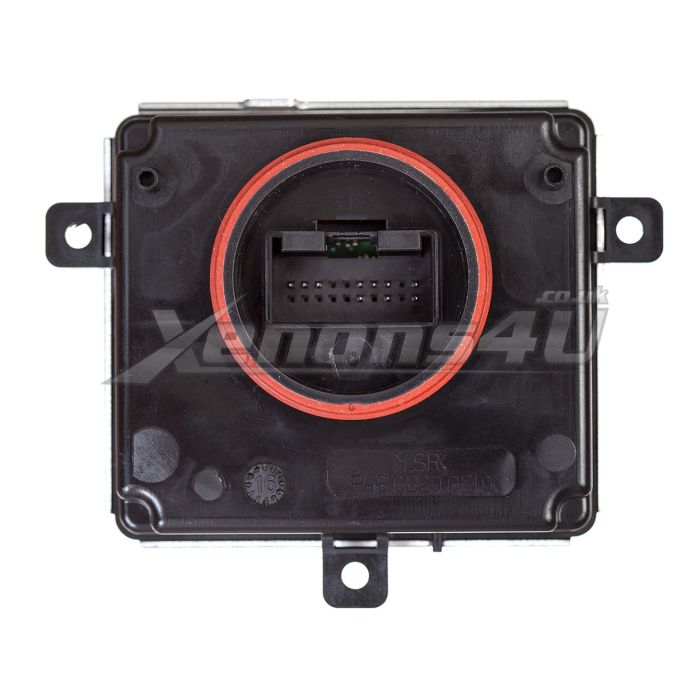

4G0907697G LTM-2TFL 28548011 28357968 28519705 LED Power Module Control Unit
Delphi power module is factory fitted on VW and SEAT cars with Xenon Headlamps.
If your Daytime Driving lights don't work anymore, you will need to replace Delphi LTM-2TFL 28357968 LED power module.
4G0.907.697.G LTM-2TFL module is direct replacement and doesn't work require any modifications.
Delphi Power module is compatible with other part numbers as well, a list of part numbers are below.
Older Delphi ballast was produced with part number 4G0907397G and it was superseded by 4G0907697G, which means you can replace either way and it will work perfectly.
Delphi 28548011 28357968 28519705 modules are made in Hungary and Macedonia.
Not sure about fitment, contact our customer support for advice.
The most common diagnostic trouble fault codes
- 02895 Supply Voltage for LED Module for DRL and Parking Light; Left
- 012 Electrical Fault in Circuit
- 02897 Supply Voltage for LED Module for DRL and Parking Light; Right
- 012 Electrical Fault in Circuit
- 02895 Zasilanie lewego modulu diodowego światła do jazdy w dzien i swiatel pozycyjnych - Przerwa / zwarcie z potencjalem plus
- B12EDF2 Right Daytime Running Lamp and Parking Lamp LED Module Supply Open Circuit / Short Circuit to Positive
- B12ECF2 Left Daytime Running Lamp and Parking Lamp LED Module Supply Open Circuit / Short Circuit to Positive
- B12EDF2 Right LED daytime running lamp and parking lamp LED module Supply, open circuit/short circuit to B+ static
- B12ECF2 Left daytime running lamp and parking lamp LED module Supply, open circuit/short circuit to B+ Intermittent
The most commnon vw volkswagen skoda warning messages

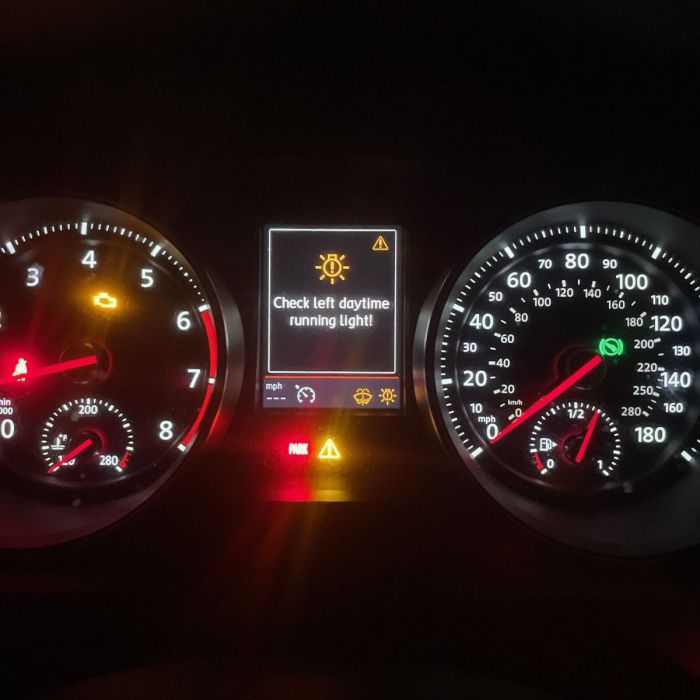

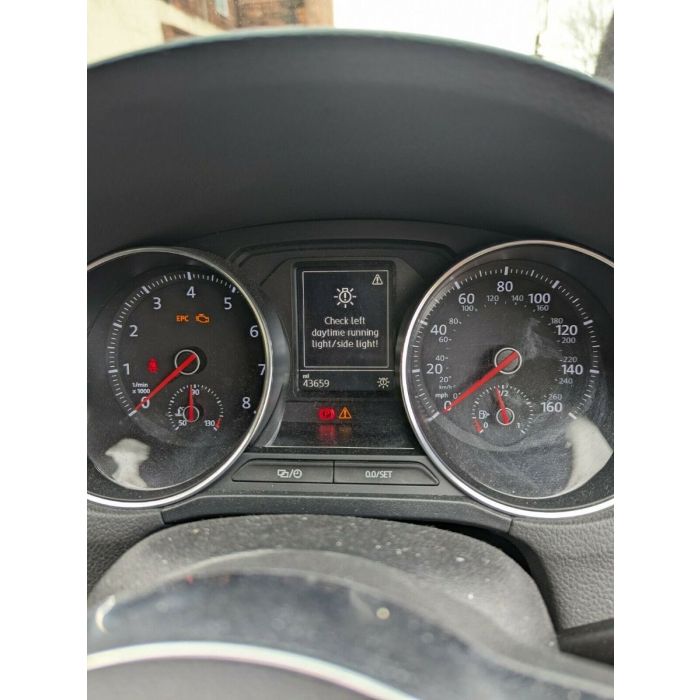

- Check left daytime running light!

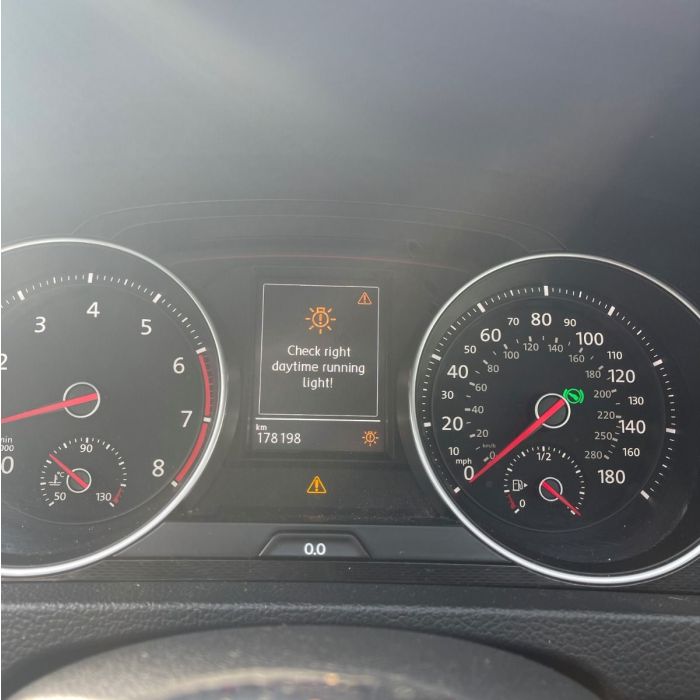

- Check right daytime running light!

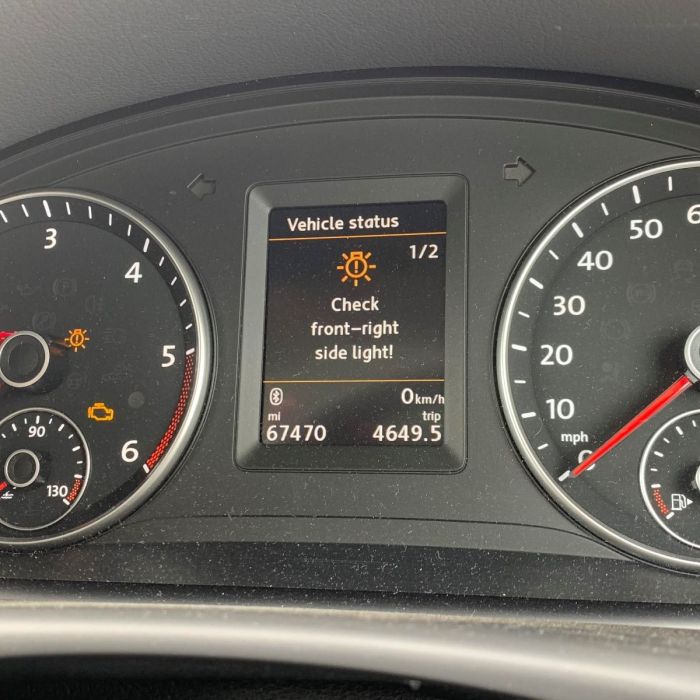

- Check front-right side light!
- Check front-left side light!
- Check left front Side light!
- Check right front side light!
- Standlicht vorne links prüfen!
- Standlicht vorne rechts prüfen!
- Tarkasta oikea paivaajovalo!
- Tarkasta vasen paivaajovalo!
- Controlez le feu de jour/feu de position gauche!
- Controlez le feu de jour/feu de position droit!
- Kontroller venstre parklys foran!
- Kontroller høyre parklys foran!
- Kontroller venstre park.lys foran!
- Kontroller høyre park.lys foran!
VAG part numbers:
- 4G0907697G
- 4G0.907.697.G
Delphi part numbers:
- 28357968
- 28548011
- 28519705
More compatible part numbers:
- 4G0907397G 28297179
- 4G0907397A 4G0.907.397.A 28289810
- 4G0907697A 4G0.907.697.A 28357993
Compatible VW Volkswagen Amarok 2H D8S Xenon headlamps
- 2H2941015K 90062214
- 2H2941016K 90062215
- 2H3941031B 90113168
- 2H1941017A 90076591
- 2H1941018A 90076592
- 2H3941032 90113169
- 2H1941015AF 90062211
- 2H1941016AF 90062213
- 2H1941015AG 90062211
- 2H1941016AG 90062213
Compatible VW Polo 6C GTI Full LED headlamps
- 6C2941773A 1LA012034-47
- 6C2941035A 1LA012034-37
- 6C2941036A 1LA012034-38
Compatible VW Caddy 2K Facelift D8S Xenon headlamps
- 2K2.941.031.B 2K2941031B 1LL012286-11
- 2K1.941.032.B 2K1941031B 1EL012286-09
- 2K1.941.032.B 2K1941032B 1EL012286-10
Compatible VW Volkswagen MK7 VII 5G GTI Pre-Facelif D3S Xenon Headlamps
- 5G2941751A 90033866
- 5G2941752A 90033878
Compatible VW Volkswagen MK7 VII 5G GTI Pre-Facelift D3S Xenon Reflector Headlamps
- 5G1941033A 90034146
- 5G1941034A 90034331
Compatible VW Volkswagen MK7 VII 5G GTE Pre-Facelift D3S Xenon LED Headlamps
- 5G1941033C 90061720
- 5G1941034C 90061721
Compatible VW Volkswagen MK7 VII 5G R-Line Pre-Facelift D3S Xenon LED Headlamps
- 5G1941033B 90050551
- 5G1941034B 90050552
- 5G1941033E
- 5G1941043E
- 5G1941043C
Compatible VW Volkswagen MK7 VII 5G Pre-Facelift D3S Xenon LED Headlamps
- Valeo 90117218 046809
- Valeo 90043741 044931
- 5G1941033 90024309
- 5G1941034 90024310
Compatible VW Volkswagen MK7 VII 5G Pre-Facelift R-Line D3S Xenon LED Headlamps
- 5G2941751D 90050499
- 5G2941752D 90050500
Compatible VW Volkswagen MK7 VII 5G GTD Pre-Facelift D3S Xenon Headlamps
- 5G2941751 90024307
- 5G2941752 90024308
- 5G2941753 90040754
- 5G2941754 90040755
Compatible VW Volkswagen Transporter Caravelle T6 Pre-Facelift LED headlamps
- 7E2.941.035 7E2941035 90079564
- 7E2.941.036 7E2941036 90079565
- 7E2.941.036.A 7E2941036A 90079565
- 7E2.941.035.A 7E2941035A 90079564
- 7E2941773
- 7E2941774
- Valeo 90085163
Compatibility list:
- VW Amarok 2H SUV Pickup
- 2010 2011 2012 2013 2014 2015 2016
-
Pick Up Double Cab 4x4
-
2.0L TSI
-
2.0L TDI CR 3.0L V6 TDI
- VW Caddy 2K Facelift
- 2010, 2011, 2012, 2013, 2014, 2015
- VW Caddy 2K Second Facelift
- 2015, 2016, 2017, 2018
- Caddy Life Maxi Maxi Life Black Edition
- Caddy Alltrack
- 1.6 TDI diesel
- VW Golf MK7 7 VII 5G Hatchback
- 2012 2013 2014 2015 2016 2017
- VW Golf MK7 7 VII Sportsvan Sportwagen Estate Variant
- 2014 2015 2016 2017
- 1.2 1.0 1.4 1.6 1.8 TSI FSI BlueMotion petrol gasoline
- GTE GTI R-Line Highline 4Motion DSG
- 1.6 2.0 TDI CLHB CLHA CKFC BlueMotion GTD diesel
- VW Transporter MK5 T5 Facelift
- 2009, 2010, 2011, 2012, 2013, 2014, 2015
- VW Transporter Caravelle MK6 T6 Pre-Facelift
- 2015, 2016, 2017, 2018 2019
- VW Polo 6R 6C
- 2014 2015 2016 2017
- GTI 1.8 TSI DSG
- VW Sharan MK2 7N MPV
- CR 2.0 TDI diesel
- 2010 2011 2012 2013 2014 2015
- VW Touran MK2 1T3 MPV Facelift
- 2010, 2011, 2012, 2013, 2014, 2015
- VW Passat CC 35
- VW Passat B8 3G
- Seat Alhambra 2010, 2011, 2012, 2013, 2014, 2015
Please note: This list is not full, Delphi power module may fit other car models as well, please check provided part numbers, pictures and compare to your old parts.
