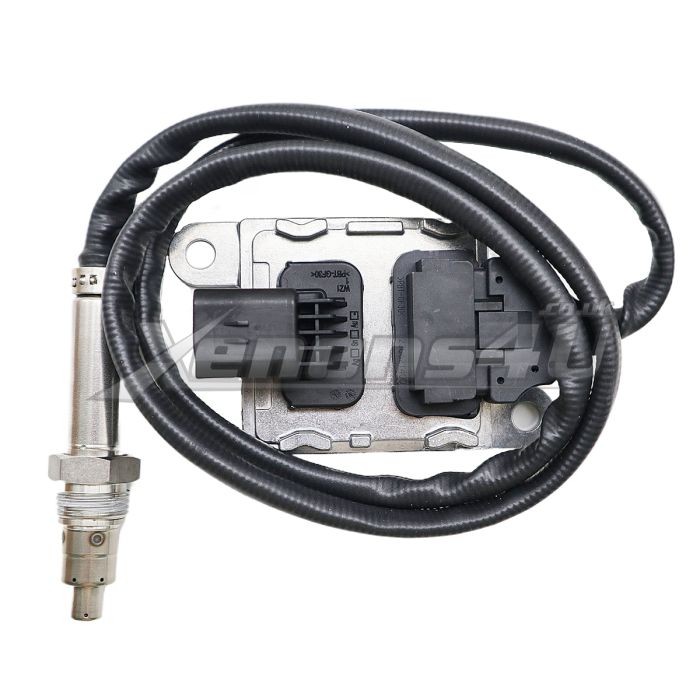

539-0117 SNS3034 A2C16102600-01 NOx sensor

539-0117 SNS3034 A2C16102600-01 NOx sensor

Caterpillar CAT 539-0117_REV_01 Nitrogen Oxide control unit sensor is factory fitted on many different CAT machines.

Our part replaces fault UniVolt NOx sensor outlet.

The most common diagnostic trouble codes DTCs

• 3216-11 Aftertreatment #1 Intake NOx : Other Failure Mode
• 3655-11 Aftertreatment #1 Intake NOx Level Sensor : Other Failure Mode
• 3216-12 Aftertreatment #1 Intake NOx : Failure
• 3655-12 Aftertreatment #1 Intake NOx Level Sensor : Failure
• 3226-11 Aftertreatment #1 Outlet NOx : Other Failure Mode
• 3226 Aftertreatment 1 Outlet NOx Voltage below normal or shorted low
• 3226 NOx sensor downstream too low value
• 3609-11 Aftertreatment #1 Outlet #1 NOx Level Sensor : Other Failure Mode
• 3226-12 Aftertreatment #1 Outlet NOx : Failure
• 3609-12 Aftertreatment #1 Outlet #1 NOx Level Sensor : Failure
• 3609-12 Aft #1 outlet #1 Nox level sensor: Failure
• E1410 Aftertreatment #1 conversion efficiency
• E1410 Aft #1 conversion efficiency
• 3216-11 3002-11 Aftertreatment #1 Intake NOx: Other failure mode
• 3216-12 3002-12 Aftertreatment #1 Intake NOx: Failure
• 3226-11 3609-11 Aftertreatment #1 Outlet NOx: Other Failure Mode
• 3226-12 3609-12 Aftertreatment #1 Outlet NOx: Failure

Sandvik Crusher Warning messages

• SPN: 5246 Aftertreatment SCR Operator Inducement Severity

CAT Caterpillar part numbers

• 539-0117
• 539-0117_REV_01
• 5390117
• CA5390117

Continental part numbers

• A2C1610260014
• SNS3034
• A2C16102600-01

More compatible part numbers

• 539-0117_REV_02
• A2C16102600-04
• A2C1610260004
• 441-5129
• SNS356 5WK97356
• A2C92692300-02
• A2C9269230010

Compatible CAT machines

• Sandvik crusher
• Perkins engine
• Cat 432F2 2015 Backhoe Loader
• Earthmoving Compactor
• 815K 816K 825K 826K 836K
• Wheel-Type Loader
• 926M 930M 938M 950 GC 950M 950M Z 962M 962M Z 966M 966M XE 972M 972M XE 980M 982M 986K 988K 988K XE 994K
• Petroleum Products
• C175-16 CX31-P600
• Retrofit Aftertreatment
• SCR
• Engine - Generator Set
• 3516C C13 XQ375 C175-16 C18 C32 G3412 G3512 G3512H G3516C G3516H G3520 G3520H XQ230 XQ425
• Wheel-Type Skidder
• 525D 535D 545D 555D
• Off-Highway Truck
• 770G 772G 785G 793F 794 AC 796 AC 797F 798
• Track-Type Loader
• 953K 963K 973
• Engine - Industrial
• 3512E 3516E C175-16 C175-20 C280-16 C4.4 C7.1 C9.3B G3512H G3606 G3612 G3616
• Articulated Dump Truck
• 725 725C 725C2 730 730C 730C2 730C2 EJ 735 735C 740 740 GC 740C 745 745C
• Road Reclaimer
• RM500B
• Cold Planer
• PM620 PM622
• Petroleum
• G3608
• Forest Products
• 2384D 2484D 2570D 2670D 558 559D 563D 573D 579D
• Motor Grader
• 120 12M 3 12M 3 AWD 140 140M 3 140M 3 AWD 14M3 150 16 160 160M 3 160M 3 AWD 16M3 18 18M3 404F-22
• Material Handler
• MH3022 MH3024 MH3026
• Wheeled Excavator
• M314F M316F M318F M320F M322F M323F MH3040
• Paving Compactor
• CCS9 CP-54B CP-56B CP-68B CP-74B CS-54B CS-56B CS-64B CS-66B CS-68B CS-74B CS-76B CS-78B
• Wheel Dozer
• 814K 824K 834K
• Industrial Engine
• C7.1
• Asphalt Paver
• AP-1000F AP-1055F AP500F AP555F AP600F AP655F
• Pipelayer
• PL61 PL72 PL83 PL87
• Excavator
• 312F 313F 313F L 314F CR 315F LCR 316F L 318F L 320 320 GC 320F L 323 323F 323F L 323F LN 323F OEM 323F SA 325F 325F LCR 326F 326F L 326F LN 329F L 330 330 GC 330F 330F L 330F LN 330F OEM 330FMHPU 335F 335F LCR 336 336 GC 336F 336F L 336F L XE 336F LN XE 336F LNXE 336F XE 336FMHPU 340 340F 340F L UHD 349 349F 349F L 349F LXE 352 352F 352F OEM 352F XE VG 352F-VG 352FMHPU 374F 390F 538 558 M315F M317F M318F
• Marine Products
• 3512E 3516C 3516E C280-12 C280-16 C32
• Wheel Tractor-Scraper
• 621K 621K OEM 623K 627K 631K 637K
• Track-Type Tractor
• D5 D6 D6 XE D6K2 D6K2 LGP D6K2 XL D6N D6N LGP D6N XL D6T D6T LGP D6T LGPPAT D6T XL D6T XL PAT D6T XW D6T XW PAT D7E D8T D9T
• Load, Haul, Dump
• R2900
• CAT TH357D TH408D TH3510D
• Telehandlers Telescopic Handlers
• Caterpillar CAT 336 Hydraulic Excavator
• CAT 326FL Hydraulic Excavator
• CAT 318FL 318F L Excavator Digger 2016- 2021
• Epiroc PowerROC D55 drilling drill rig
• Epiroc FlexiROC D55
• CAT 313FL Hydraulic Excavator
