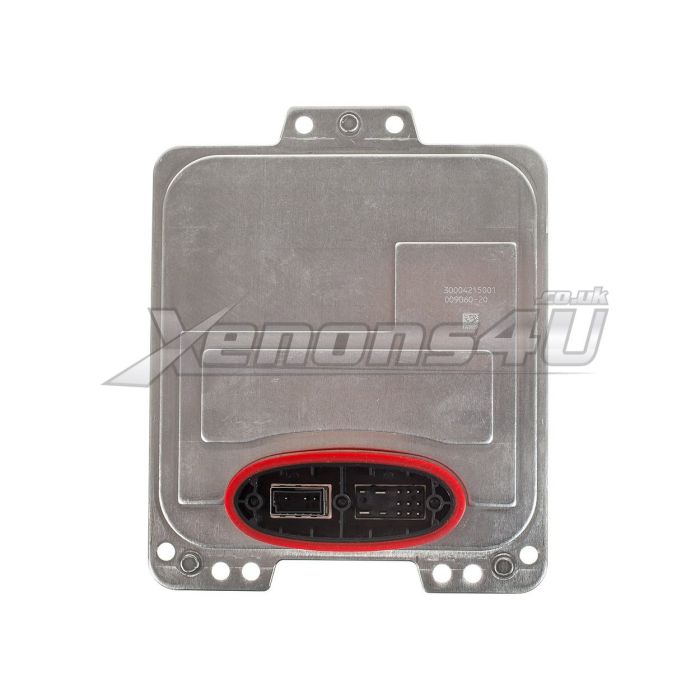

5DC009060-20AM A2129007804 AFS-GDL Steuergerat Xenon Ballast

5DC009060-20AM A2129007804 AFS-GDL Steuergerat Xenon Ballast control unit

Hella 5DC009060-20AM is factory fitted on Mercedes-Benz brand E-class Pre-Facelift cars  W212 Saloon, S212 Estate, A207 Convertible and C207 Coupe with D1S Bi-Xenon headlights.

The main malfunctions when hella 5DC009060-20AM xenon ballast fails is main beam or high beam stops working, xenon lights are shutting down without any reason at random times.

In addition it has range adjustment function.

Information from original sticker: 1100V DC 85V AC 35W nom. made in Germany.

When replaced Mercedes-Benz A2129007804 xenon control unit, it will need one-time coding.

Below you will find compatible Hella and Mercedes-Benz part numbers.

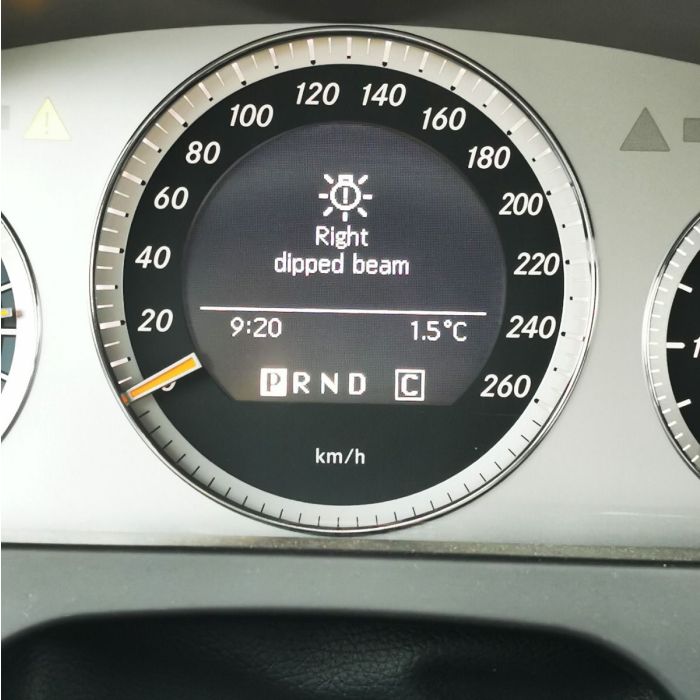

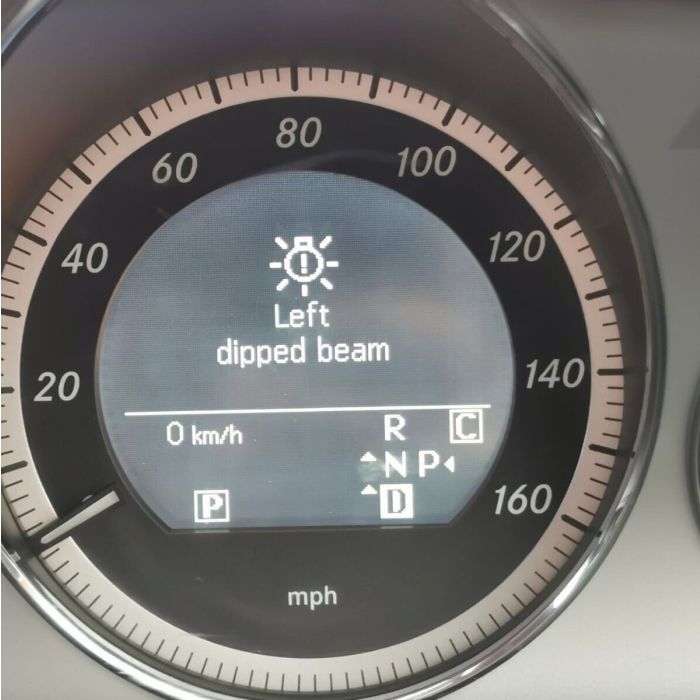

The most common mercedes-benz W212 S212 C207 A207 warning messages

• Low beam left
• Low beam right
• Dipped beam left
• Dipped beam right
• Left dipped beam
• Right dipped beam
• Active Light System currently unavailable
• Luz de cruce izquierda
• Luz de cruce derecha
• Abblendlicht links
• Abblendlicht rechts
• Anabbagliante sinistro
• Anabbagliante destro

Software and Hardware part numbers

• HW: A2128205626
• SW: A2129024202

Hella part numbers

• 5DC 009 060-20AM
• 5DC009060-20AM

Mercedes-Benz part numbers

More compatible part numbers

• 5DC009060-20AL
• LU: A2129003502
• HW: A2128205626
• SW: A2129086701
• 5DC009060-20AN
• LU: A2129007804
• HW: A2128205626
• SW: A2129024202
• 5DC009060-20AK
• LU: A2129001200
• HW: A2128205626
• SW: A2129023101 A2129023100
• A2128205526
• MA212900780480
• 5DC009060-21

Compatible Mercedes-Benz E class W212 S212 Pre-Facelift Bi-Xenon headlamps

• A2128205061KZ A2128205061 1ZT009702-66
• A2128200939KZ A2128200939 1ZT011705-11
• A2128202759KZ A2128202759 1ZT010800-21
• A2128201959KZ A2128201959 1ZT010800-11
• A2128204961KZ A2128204961 1ZT009702-65
• A2128204461KZ A2128204461 1ZT009702-91
• A2128202061KZ A2128202061 1ZT009702-42
• A2128202059KZ A2128202059 1ZT010800-12
• A2128201039 1ZT011705-12
• A2128205761 1ZT009702-07
• A2128205861 1ZT009702-08

Compatible Mercedes-Benz E class C207 A207 Pre-Facelift Bi-Xenon headlamps

• A2078204361KZ A2078204361 1ZT009647-71
• A2078200159KZ A2078200159 1ZT009647-31
• A2078200259KZ A2078200259 1ZT009647-32

Compatible Mercedes-Benz cars

• E Class W212 Saloon Sedan Pre-Facelift 2009 2010 2011 2012 2013
• E Class S212 Estate Wagon Pre-Facelift 2009 2010 2011 2012 2013
• E Class C207 Coupe Pre-Facelift 2009 2010 2011 2012 2013
• E Class A207 Convertible Cabriolet Pre-Facelift 2010 2011 2012 2013
• E200 E250 E300 E350 E500 4MATIC BlueEfficiency Petrol Gasoline
• E63 AMG 4MATIC
• AMG Line
• E200 E220 E250 E300 E350 BlueTEC CDI 4MATIC Diesel
