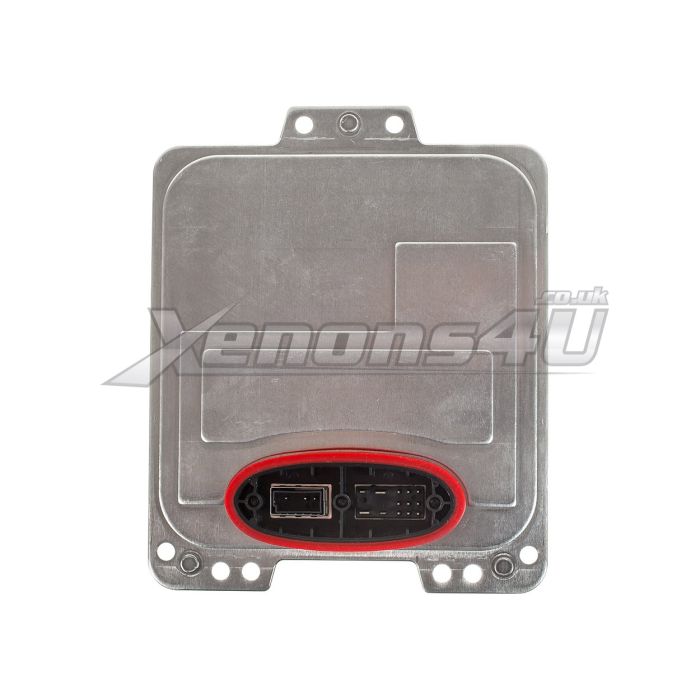

5DC009285-00 AFS-GDL Steuergerat Xenon Ballast

5DC009285-00 95563119401 AFS-GDL-Steuergerat 12V xenon control unit ballast

Hella 5DC009285-00 is factory fitted on Porsche Cayenne 957 9PA Facelift cars with curve lights AFS and D1S 35W Gas Discharge Bi-Xenon headlights.

The main malfunctions when hella 5dc 009 285-00 xenon ballast fails is main beam or high beam stops working, xenon lights are shutting down without any reason at random times.

Porsche 955.631.194.01 AFS-GDL-Steuergerat has built-in adaptive cornering light function.

If xenon lights have stopped working suddenly and don't turn on anymore, firstly check D1S 35w xenon bulb, afterwards fuse and the last hella 95563119401 AFS-GDL steuergerat module unit.

Information on original part: 1100V DC 85V ac 35W nom. dot 2000h al 99.5 d1s.

Coding is required after replacing faulty genuine Hella 5DC009285-00 Porsche 95563119401 AFS-GDL-Steuergerat Xenon headlamp ballast.

The most common Porsche Cayenne 957 9PA Facelift warning messages

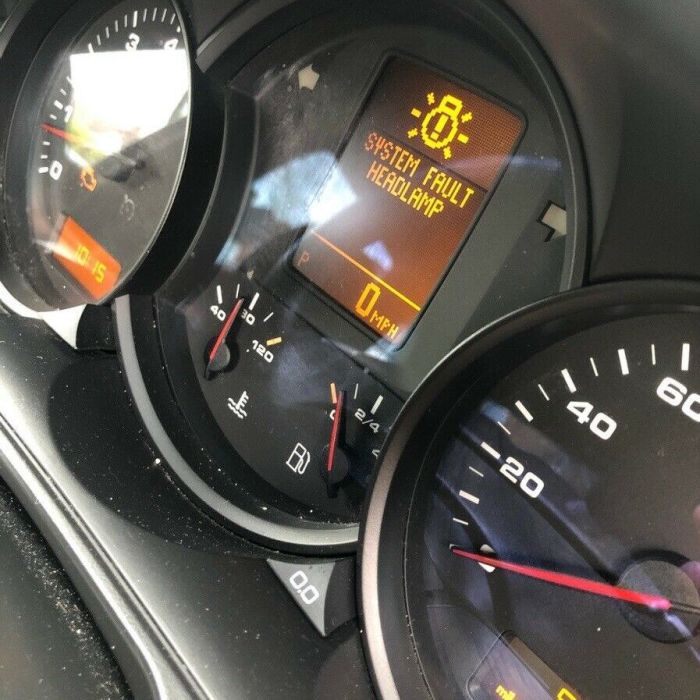

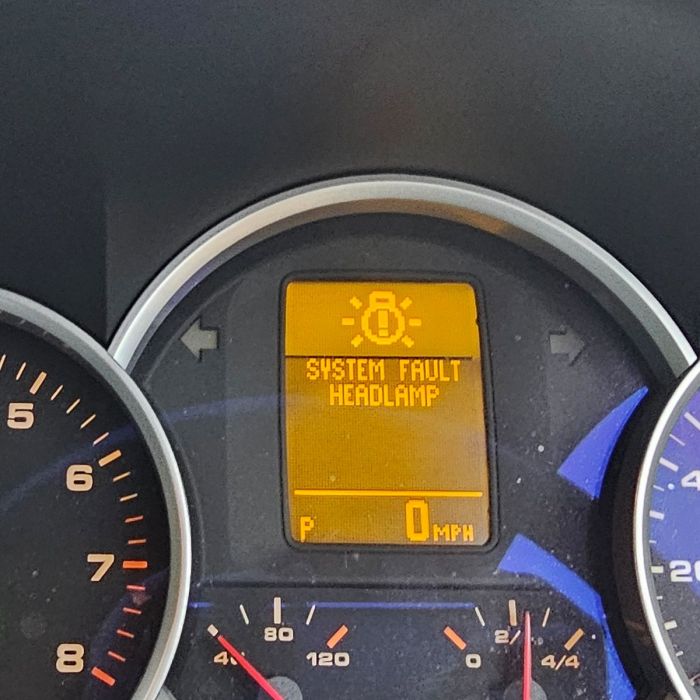

• System Fault Headlamp

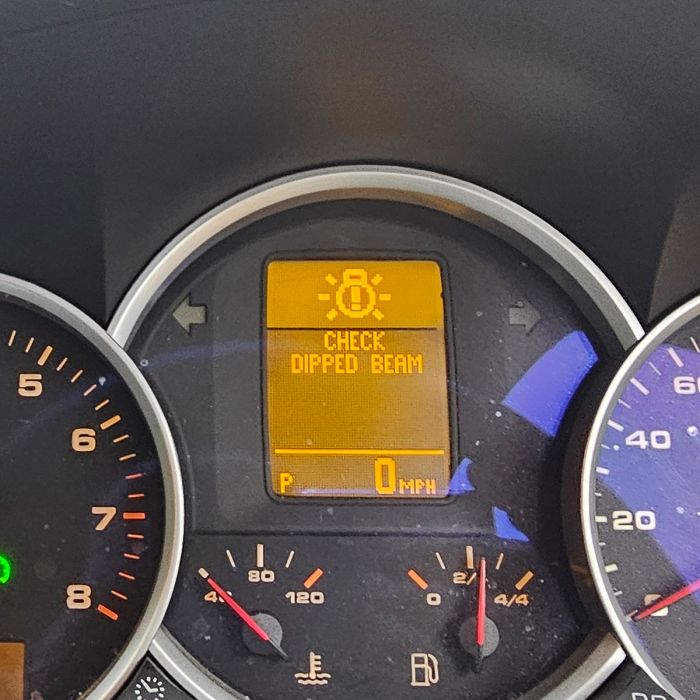

• Check Dipped Beam
• Controler Reglage Portee Proj.
• Erreur systeme projecteurs
• Controler feux croisement
• Errore sistema proiettori

The most common diagnostic trouble codes

• 15582 DTC Left headlight
• 15582 DTC Headlight control unit left
• 0978 DTC Left dipped headlamp
• 15583 DTC Right headlight
• 15583 DTC Headlight control unit right

Compatible Hella part numbers:

• 5DC 009 285-00
• 5DC009285-00
• 5DC00928500

More compatible Hella part numbers:

• 5DC009 285-01
• 5DC009285-01

Compatible Porsche part numbers

• 955.631.194.01
• 95563119401
• 955.631.194.02
• 95563119402
• 955.631.194.00
• 95563119400
• 955.631.194.03
• 95563119403

Compatible Porsche Cayenne 957 9PA Facelift Xenon headlamps

• 7L5.941.031.J 7L5941031J 1ZS009275-03
• 7L5.941.032.J 7L5941032J 1ZS009275-04
• 7L5.941.031.L 7L5941031L 1ZS009275-05
• 7L5.941.032.L 7L5941032L 1ZS009275-06
• 7L5.941.031.H 7L5941031H 1ZS009275-05
• 7L5.941.032.H 7L5941032H 1ZS009275-06
• 7L5.941.031.K 7L5941031K 1ZS009275-01
• 7L5.941.032.K 7L5941032K 1ZS009275-02
• 7L5.941.031.N 7L5941031N 1ZS009275-01
• 7L5.941.032.N 7L5941032N 1ZS009275-02
• 7L5.941.031.D 7L5941031D 1ZS009275-01
• 7L5.941.032.D 7L5941032D 1ZS009275-02
• 7L5.941.031.S 7L5941031S 1ZS009275-23
• 7L5.941.032.S 7L5941032S 1ZS009275-24
• 7L5.941.031.G 7L5941031G 1ZS009275-01
• 7L5.941.032.G 7L5941032G 1ZS009275-02

Compatible cars

• Porsche Cayenne SUV 9PA 957 Facelift
• 2007 2008 2009 2010
• Porsche Cayenne 9PA1
• 3.0 TDI V6 Triptonic S
• Cayenne V6 TDI Diesel
• Cayenne S Hybrid
• Cayenne S
• Cayenne Turbo Petrol Gasoline
• GTS 4S 4.8
