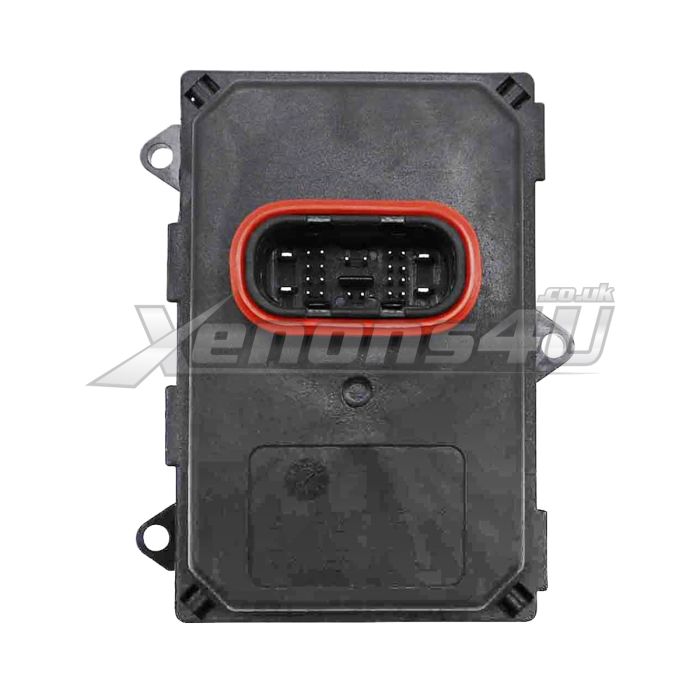

5DF009368-15 7L6941329B AFS Leistungsmodul Module

5DF009368-15 7L6941329B AFS Leistungsmodul power module ballast

Hella AFS Leistungsmodul is responsible for controlling cornering light movement to the left or right side when you drive and use steering wheel.

Hella power module 7L6941329B is factory fitted to VAG group cars with xenon adaptive headlights and gas discharge bulbs.

Information from original sticker: hlo w5 SW: 7L6 941 329B.

Direct replacement to old faulty genuine VW Ag 7L6941329B Hella 5DF009368-15 AFS Leistungsmodul module.

The most common diagnostic trouble fault codes

• C1088-15 C108815 Positioning Motor for Dynamic Cornering Light Right Open Or Short to Plus
• C1086-15 C108615 Positioning Motor for Headlight Range Right Open or Short to Plus
• C108B29 Left swivel module position sensor implausible signal
• C108515 Left headlamp beam adjusting motor Open circuit short circuit to B+
• C1081F1 Left headlamp power output stage incorrect coding
• C108104 Left headlamp power output stage faulty
• C108313 Left Stationary AFS - Open Circuit

The most common vw volkswagen Skoda warning messages

• Bend Lighting (AFS) failure Owner's manual
• Eclairage adaptatif (AFS) hors fonction Livre de Bord
• Eclairage adaptatif (AFS) hors fonction. Livre de Bord!
• Luz de curva (AFS) nao funciona. Livro de Borda!
• ---->>>???
• Error: Adaptive front lighting (AFS)
• Error: Cornering light (AFS)

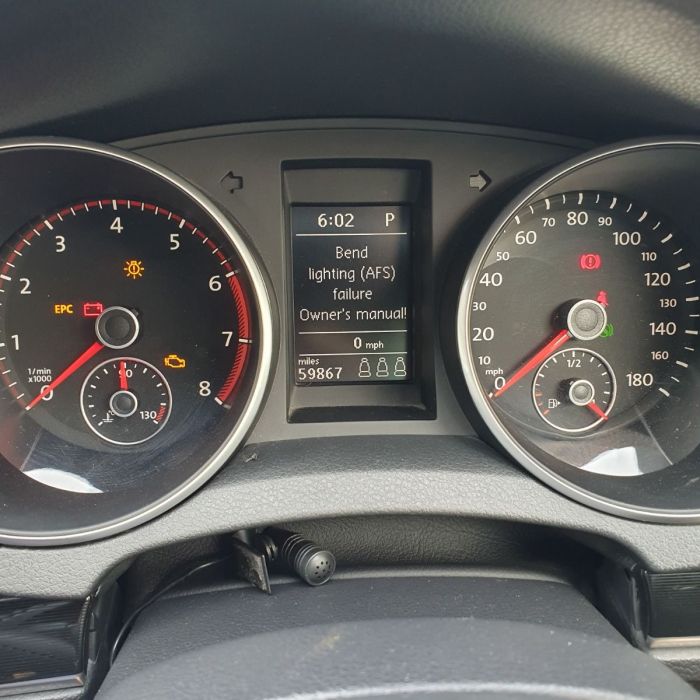

• Cornering light (AFS) failure Owner's manual
• Adaptive front lighting syst. (AFS) failure Owner's manual
• Error: Bend lighting (AFS)
• No bend lighting (AFS) function. Owner's manual!
• Erro: Luz de curva (AFS)
• Defaut: eclairage adaptatif (AFS)
• AFS Inoperative! See Owner's Manual

The most common Volkswagen VW Tiguan 5N warning messages

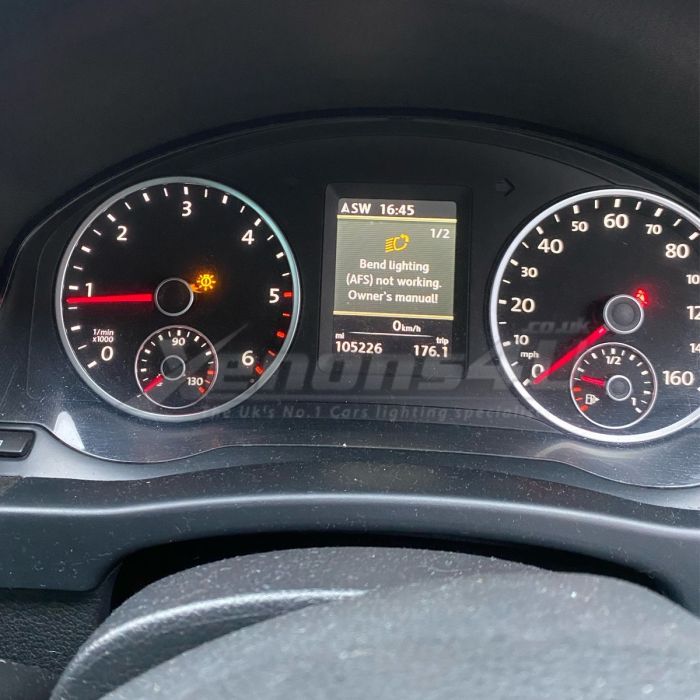

• Bend lighting (AFS) not working. Owner's Manual!

Hella part numbers

• 5DF 009 368-15 AJ 5DF009368-15AJ
• 5DF 009 368-15 AN 5DF009368-15AN
• 5DF 009 368-15 AL 5DF009368-15AL
• 5DF 009 368-15 AK 5DF009368-15AK
• 5DF 009 368-15 AE 5DF009368-15AE
• 5DF 009 368-15 AI 5DF009368-15AI

VW ag part numbers

• 7L6 941 329 B
• 7L6 941 329B
• 7L6941329B

Compatible VW Volkswagen Tiguan 5N Xenon headlamps

• 5N2941751 1ZS010748-13
• 5N1941752 1ZS010748-12

Compatible cars:

• Audi A3 S3 8V 2012, 2013, 2014, 2015, 2016
• Audi A6 S6 4F 4G 2010, 2011, 2012, 2013,2014
• Audi A8 S8 4H 2009, 2010,2011, 2012, 2013
• Audi Q7 4L SUV
• Audi A7 S7 4G Sportback
• VW Jetta 5C 2010, 2011,2012, 2013, 2014
• VW Tiguan 5N 2011, 2012, 2013, 2014, 2015,2016
• VW Touareg 7P 2010, 2011, 2012,2013, 2014, 2015, 2016
• Skoda Superb B6 3T MK2 2009 2010 2011 2012
• Skoda Octavia MK2 1Z 2009 2010 2011 2012 1.6 2.0 TDI diesel 4x4
• VW Volkswagen Golf MK6 VI Hatchback 2009 2010 2011
• 2.0 TDI R-Line GTI GTD
