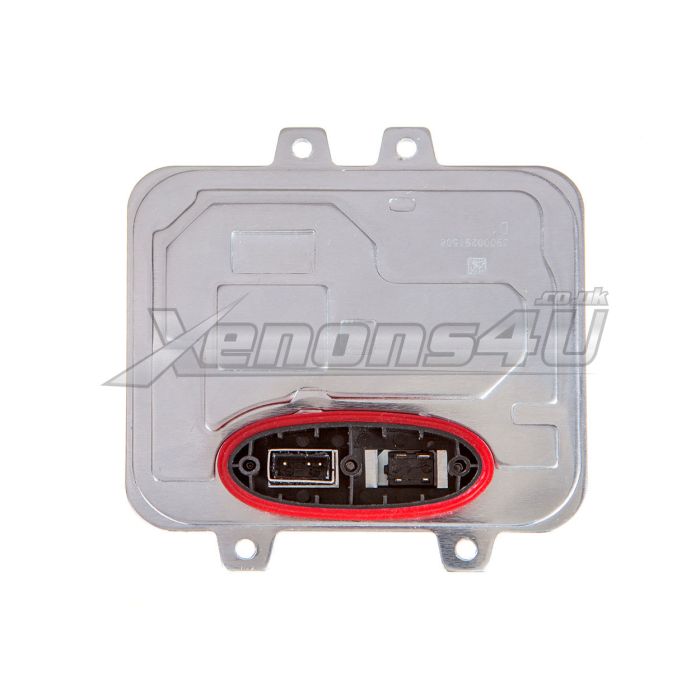

5DV009720-00 Xenon Ballast 12V Control Unit

5DV009720-00 Xenius Xenon Ballast 12V Control Unit

5DV009720-00 Xenius ballast is factory fitted on Opel or Vauxhall cars with D1S 35W HID bulb xenon headlamps and AFS (Cornering Function).

If your xenon lights have stopped working or shut downs without any reason then Xenon HID Ballast has failed and you will need to replace with new unit.

5DV 0097200-00 ballast replaces hella brand part.

Information from original sticker: D1S DOT 2000h DC 1100V AC 85V P 35W Al 99.5 xenius ballast 12V.

Xenon Ballast is direct replacement for your old part and no modifications will be required nor coding.

Below you will find Hella part numbers and compatibility list.

The most common Opel Vauxhall Insignia A G09 Pre-Facelift warning messages

• Service AFL Lamp
• Headlamp Levelling Malfunction - Contact Service
• Check Left Low Beam Lamp
• Check Right Low Beam Lamp
• Check left dipped beam lamp
• Check right dipped beam lamp
• Erreur Feu de croisement gauche
• Erreur Feu de croisement droit

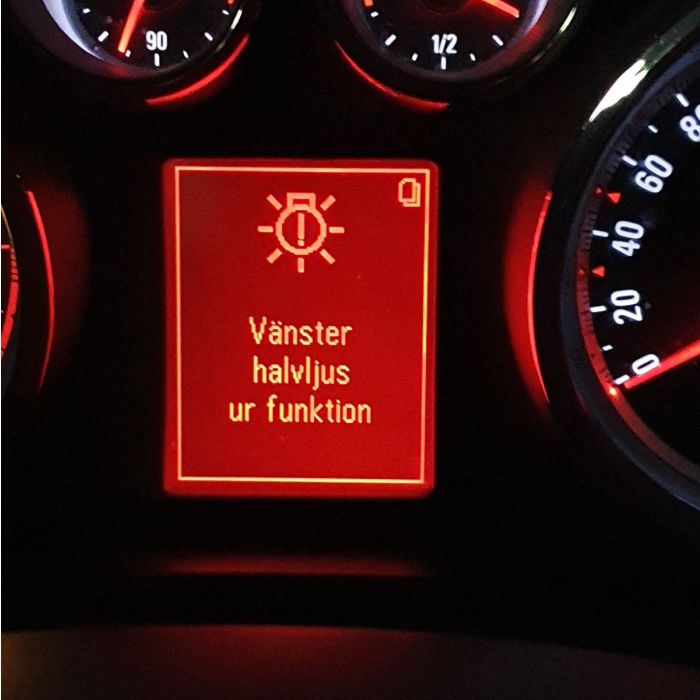

• Vänster halvljus ur funktion
• Höger halvljus ur funktion
• Controle bombilla d. cruce izquierda
• Controle bombilla d. cruce derecho
• Kurvenlicht uberprufen lassen
• Linkes Abblendlicht Fehler
• Rechtes Abblendlicht Fehler

The most common diagnostic trouble codes DTC

• B2590 02: Left Cornering Lamp Circuit Short to Ground
• B2590 04: Left Cornering Lamp Circuit Open
• B2595 02: Right Cornering Lamp Circuit Short to Ground
• B2595 04: Right Cornering Lamp Circuit Open
• B2575 01: Left Headlamp Control Circuit Short to Battery
• B2575 02: Left Headlamp Control Circuit Short to Ground
• B2575 04: Left Headlamp Control Circuit Open
• B2699 01: Right Headlamp Control Circuit Short to Battery
• B2699 02: Right Headlamp Control Circuit Short to Ground
• B2699 04: Right Headlamp Control Circuit Open
• U1511-00 Lin Bus 1 Lost Communication with Device 1
• U1521-00 Lin Bus 2 Lost Communication with Device 1



Hella part numbers:

• 5DV 009 720-00
• 5DV009720000
• 5DV009720-00

GM part numbers:

• 13278005

Opel part numbers:

• 1232335
• 12 32 335
• 7 295 702

Compatibility list:

• Vauxhall Opel Astra J MK6 6 2009, 2010, 2011, 2012
• Vauxhal Opel Insignia MK1 A Pre-Facelift 2008 2009 2010 2011 2012 2013
• Holden Insignia MK1 VXR
• Saloon Sedan Hatchback Estate Sports Tourer Elite Nav
• 1.6 2.0DTCi Turbo diesel EcoFlex
