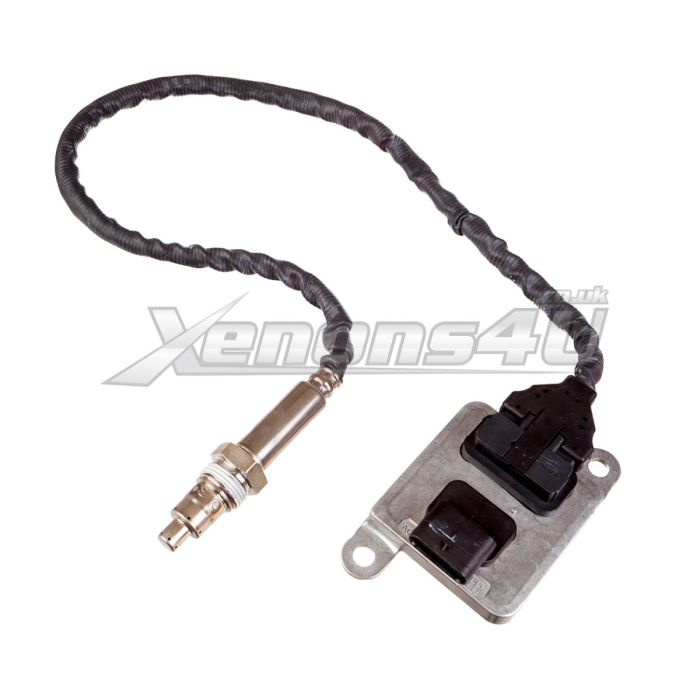

6PN358307-13 NOX Sensor

6PN358307-13 NOx sensor

Hella 6PN358307-13 Nitrogen Oxide sensor is factory fitted on many different Mercedes-Benz cars with diesel engine.

Direct replacement to old faulty genuine Hella 6PN358307-13 NOx sensor.

The most common Mercedes-Benz S-class W222 warning messages

• Cannot measure fluid level AdBlue

The most common mercedes-benz warning messages

• AdBlue malfunction em. op. in x mi km see owner's man.
• AdBlue system malfunction See Owner's Man.
• AdBlue system malfunction Emergency modie in x mls km
• Cannot measure fluid level AdBlue
• Eng. Start not possible in x mi km
• Engine start not possible in x mi km

The most common diagnostic trouble codes DTCs

• U029E00 Lost communication with NOX sensor B
• U029E Lost communication with NOX sensor B
• U029E02 Communication with NOx sensor 2 has a malfunction. There is a general signal fault
• P229F62 NOx sensor 2 (cylinder bank 1) has a malfunction. The signal comparision is faulty
• P13DF09 The AdBlue system has a malfunction. There is a component fault
• P229F62 The signal of component NOx sensor is implausible. The following test procedure must always be performed in its entirety
• P229F62 Nox sensor Signal Improbable
• P220162 The signal of component NOx sensor is implausible. The following test procedure must always be performed in its entirety
• P220162 NOx sensor Signal improbable
• P2201FB P2201-FB The NOx sensor (cylinder bank 1) has a malfunction
• P229F-91 P229F91 NOx sensor 2 (cylinder bank 1 ) Has a malfunction, the parameter is outside the permissible range
• P220F NOx sensor heater control circuit range / performance bank 1 sensor 2
• P229E NOx sensor Circuit bank 1 sensor 2
• P229F NOx sensor circuit range / performance bank 1 sensor 2
• P220F77 - NOx sensor heating (Bank 1 sensor 2) Specified position not reached
• P220F77 - The heater of NOx sensor 2 (cylinder bank 1) has an electrical fault. The commanded position cannot be reached
• 111B00 Component Nox sensor Upstream of SCR Catalytic Converter has a plausibility error
• P229F92 NOx sensor 2 (cylinder bank 1) has a malfunction.The function or the instruction is faulty
• U029D87 Communication with NOx sensor 1 has a malfunction. The message is missing
• 178700 The upper limit value of component NOx sensor upstream of SCR catalytic converter has been exceeded
• P13E400 The remaining driving distance is limited due to a malfunction in the adblue system
• P229E11 NOx sensor 2 (cylinder bank 1) has a an electrical fault. Circuit short to groudn
• P2BA9FD The emission limit for the NOx concectration has been exceeded (AdBlue quality is too low)
• P13F600 The engine cannot be started because the exhaust aftertreatment system has been tampered with
• P229F09 NOx sensor 2 (cylinder bank 1) has a malfunction. There is a component fault
• 14B500 A plausibility error exists in the component Nitrogen Oxide (NOx) sensor upstream of the selective catalytic reduction (SCR) catalytic converter
• 153500 Component Nitrogen Oxide (NOx) sensor upstream of the selective catalytic reduction (SCR) catalytic converter responds too slowly
• 133000 The upper limit value of component Nitrogen Oxide (NOx) sensor upstream of the selective catalytic reduction (SCR) catalytic converter has been attained
• P1BC300 Additional fault freeze frame data for fault analysis (Data set 03)
• P229FFF Nitrogen Oxide (NOx) sensor 2 (cylinder bank 1) is faulty
• P220011 An electrical fault exists in the NOx sensor (cylinder bank 1). There is a short circuit to ground
• P220E77 The heater of NOx sensor 1 (cylinder bank 1) is faulty. The commanded position cannot be achieved
• P220F77 P220F-77 NOx sensor heater control circuit range / performance bank 1 sensor 2. The commanded position cannot be reached
• P2201FC P2201-FC The NOx sensor (cylinder bank 1) has a malfunction
• P2201FD The NOx sensor 1 (cylinder bank 1) has a malfunction
• P204FFD The Adblue system (cylinder bank 1) has a malfunction
• P220322 The NOx sensor 1 (cylinder bank 1) has a short circuit to positive. The signal amplitude is greater than the maximum amplitude
• P2201E3 Component NOx sensor upstream of SCR catalytic converter has a malfunction
• P22A6-77 P22A677 The heater of NOx sensor 2 (cylinder bank 1) has an electrical fault. The commanded position cannot be reached
• P2201 Nox sensor circuit Range/Performance Bank 1 Sensor 1
• P229F62 Rakenneosassa NOx-tunnistin SCR-katalysaattorin jalken on toimintahairio. Signaalivertailiu on virheellinen
• P220162 Rakenneosassa NOx-tunnistin ennen SCR-katalysaattoria on toimintahairio. Signaalivertailiu on virheellinen
• P229F09 Seurausvika NOx-pitoisuuden paastoraja-arvo on ylitetty (AdBlue-laatu on puutteellinen)
• P225F2A Rakenneosan signaali NOx-tunnistin SCR-katalysaattorin jalkeen on jatkuvasti minimiarvossa. Signaalimuutosta ei ole
• P22A122 Nox sensor 2 (cylinder bank 1) has a short circuit to positive. The signal amplitude is greater than the maximum amplitude
• P22AA-00 P22AA00 The heater of NOx sensor 2 (cylinder bank 1) has a sporadic malfunction. There is a general failure
• P229F-62 P229F62 NOx sensor 2 (cylinder bank 1) has a malfunction. The signal comparison is faulty
• P220163 The NOx sensor (cylinder bank 1) has a malfunction
• P229F85 NOx sensor 2 (cylinder bank 1) has a malfunction. There is a signal above the permissible limit value

Mercedes-Benz part numbers:

• A0009053503
• A 000 905 35 03
• MA0009053503
• MA000905350364
• A000905350364

Continental part numbers

• 5WK96682D
• 5WK9 6682D
• 5WK96683C

More compatible part numbers

• A0009055300
• A0009057000 5WK96682A
• A0035428818 5WK96606
• A0065427218 5WK96677

Hella Gmbh und Co. KgaA part numbers

• 6PN358307-13
• 6PN358307-131

Mercedes Benz compatibility list:

• Sprinter W906 Van 2016
• 109 111 114 116 119 516 CDI BlueTec
• W447 Vito Metris Tourer Bus 2014 2015 2016 2017 2018
• V200d V220d V250d 2.2L
• S Class: W221 Facelift
• S class W222
• S00d S320d S350d BlueTEC diesel
• SLK class R172
• C Class W205 Saloon Sedan W205 2015 2016 2017 2018
• C220d BlueTEC 2.1 diesel C250d 4MATIC
• C300h Hybrid BlueTEC
• C class S205 C220d Wagon Estate
• C class C180d BlueTEC diesel
• E class C207 Coupe 2010 2011 2012 2013 2014 2015
• E class A207 Cabriolet Convertible 2010 2011 2012 2013 2014 2015
• 2.0L CDI E220d E250d diesel
• GL X164 GL350 Bluetec 3.0L CDI
• W166 Facelift SUV 2012 2013 2014 2015
• ML250 ML350 BlueTEC diesel 4MATIC
• GLA X156 GLA350d 2014 - 2017

Please note: This list is not full, NOX sensor may fit other car models as well, please check provided part numbers, pictures and compare to your old parts.
