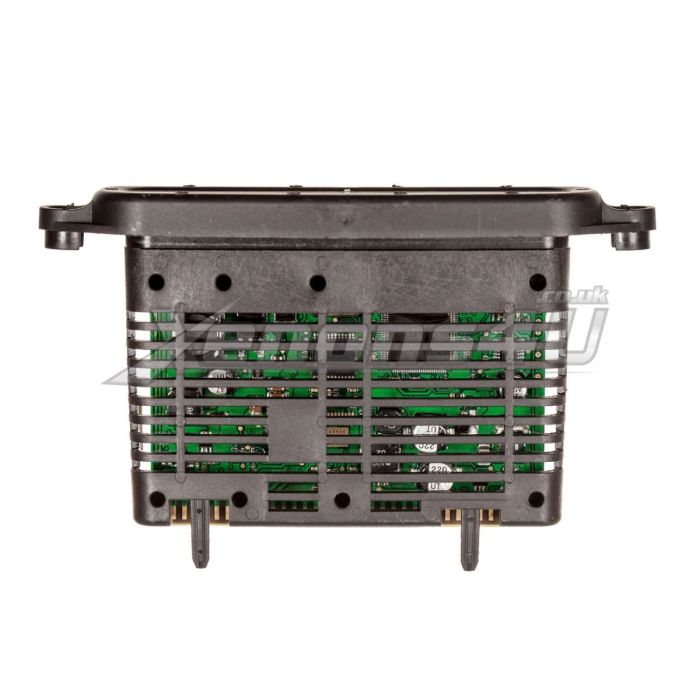

7262947 532385807 AHL TFL TMS Headlight Driver Module

£129.95
In stock

Fast Delivery

Secure Checkout

  • What's Included: 1 Module
  • Condition: New
  • Manufacturer: Xenons4U
  • Warranty: 1 Year
  • For BMW with AHL TFL adaptive xenon headlights
  • BMW part number: 7262947 03 AHL/TFL
  • LEAR part number: 532385807 04
  • Placements: Left or Right side

7262947 03 532385807 AHL TFL TMS Headlight Driver Module for bmw cars.

AHL/TFL TMS Module is factory fitted on 5 Series F10 F11 Pre-Facelift and F07 GT with Xenon Adaptive Headlamps and D1S 35W Gas Discharge HID bulbs.

532385807 04 headlight control module also known as Insert Computer and it is compatible with lear or bmw brand.

Module is responsible for light levelling also know as vertical aim control, LED Angel Eyes (Halo Rings) Daytime Running Lights and fron turn signal indicator lights.

To identify when you need to replace headlight control module there are many different malfunctions and errors, it could show red headlight error sign, show vertical aim control failure, it means that your xenon lights can't be alligned and light will be pointed downwards only, also it controls LED Angel Eyes (Daytime Running Lights) if they flicker or both rings have stopped to shine at all or LED turn signal dooesnt work it means that bmw headlight driver module has failed.

Additionally if you are seeing any malfunction related to above functions or getting headlight vertical aim control failure or side/daytime lights fault message, it means that module needs to be replaced.

These are the most common issues when you can identify, that 7262947 03 headlight module has failed and needs to be replaced with new.

By replacing LEAR TMS driver with our part you will save massive amount of money, because dealer always suggest to buy brand headlight housing, which is not necessary in this case.

Please double check provided BMW and LEAR part numbers to make sure it is correct part for your car.

Each headlight uses one 726294703 module unit, coding is required after replacing part, otherwise vertical aim won't work.

If you are unsure about fitment, please contact our customer support for help.

BMW DTC diagnostic trouble codes:

  • 800FC7 Internal fault in headlight driver module, left
  • 800FC3 Initialisation fault in headlight driver module, left
  • 800FC6 Internal fault in headlight driver module, right
  • 800FC2 Initialisation fault in headlight driver module, right
  • 800F86 Daytime Driving Light / Side Light, left, faulty
  • 800F87 Daytime Driving Light / Side Light, right, faulty
  • 800F88 Output daytime driving light / side light, left, short-circuited
  • 800F89 Output daytime driving light / side light, right, short-circuited
  • 800FCB Headlight driver module (TMS), left, faulty
  • 800FCE Headlight driver module (TMS), right, faulty
  • 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
  • 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
  • 800FC0 LWR fault in headlight driver module, right
  • 800FC1 LWR fault in headlight driver module, right
  • 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
  • 800F40 Direction Indicator, Front Left, Faulty
  • 800FD0 Design/Side Marker Light, Left, Faulty

The most common warning messages for faulty TMS module:

  • Daytime/parking lamp malfunction
  • Left turn signal malfunction
  • Right turn signal malfunction
  • Turn indicator front left failure
  • Turn indicator front right failure

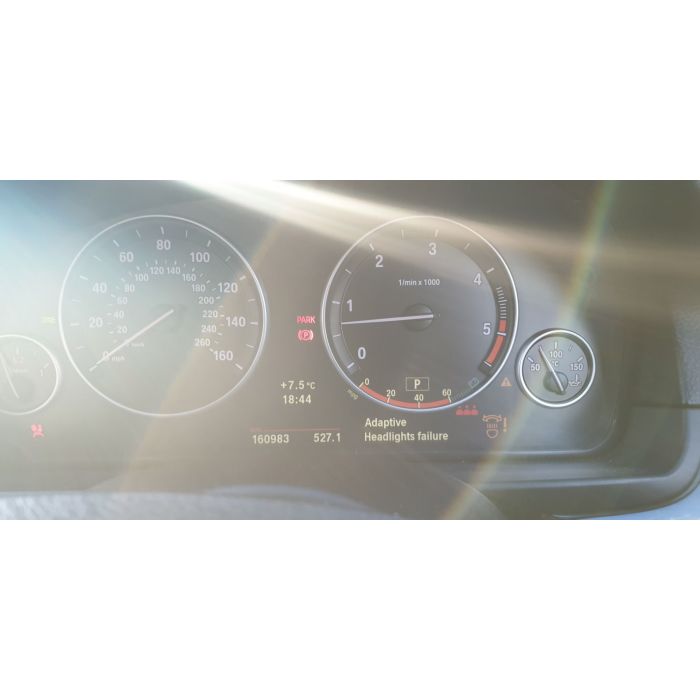

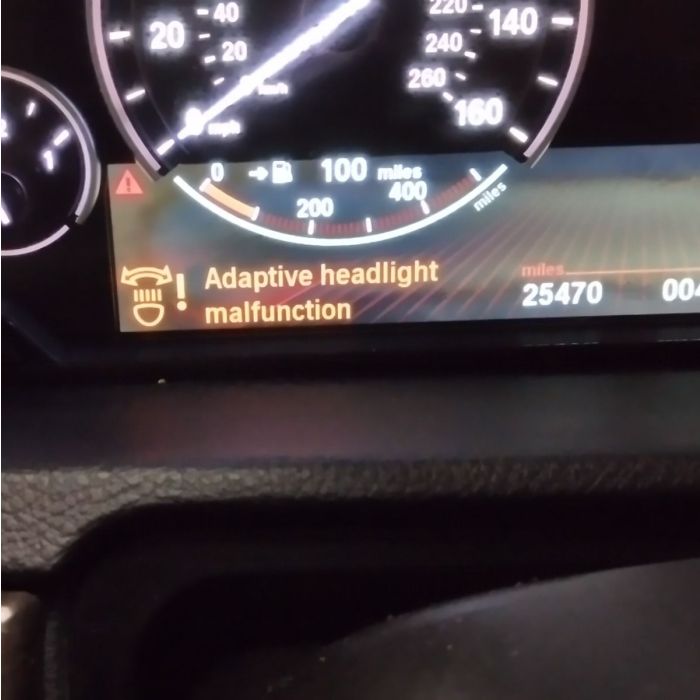

  • Adaptive headlights failure

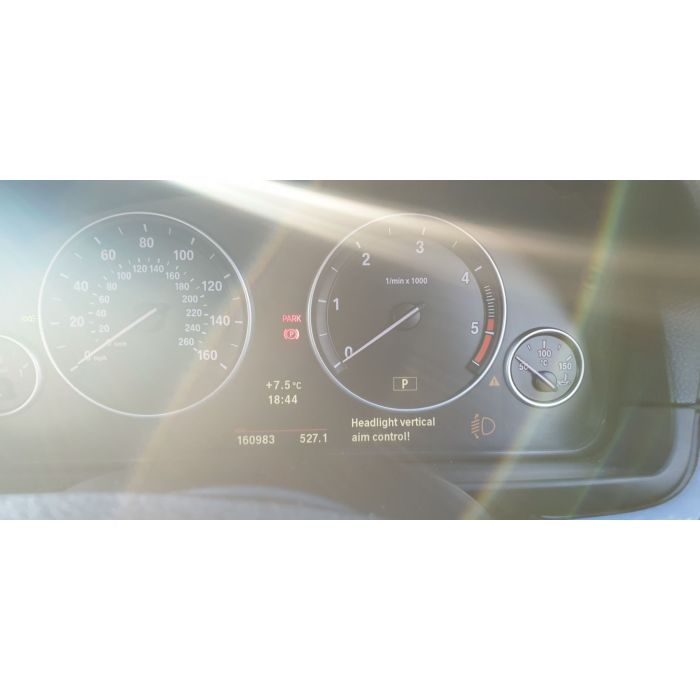

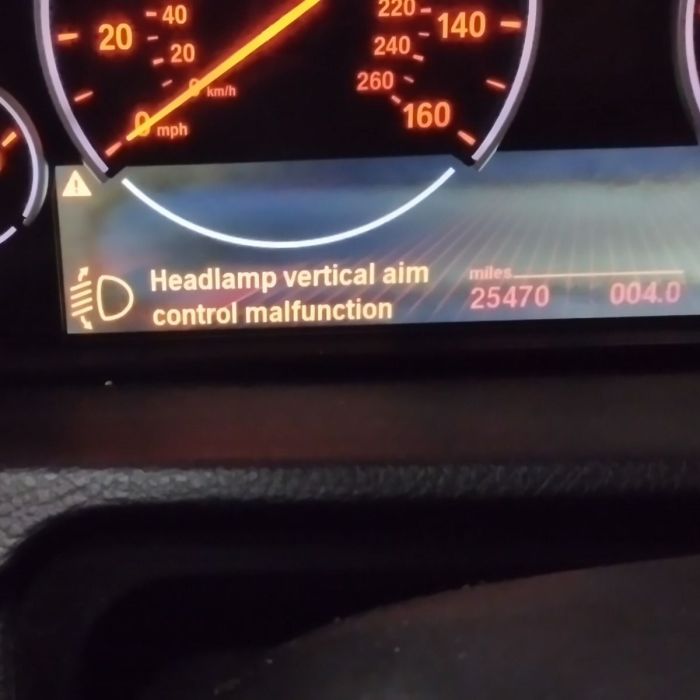

  • Headlight Vertical Aim Control Failure

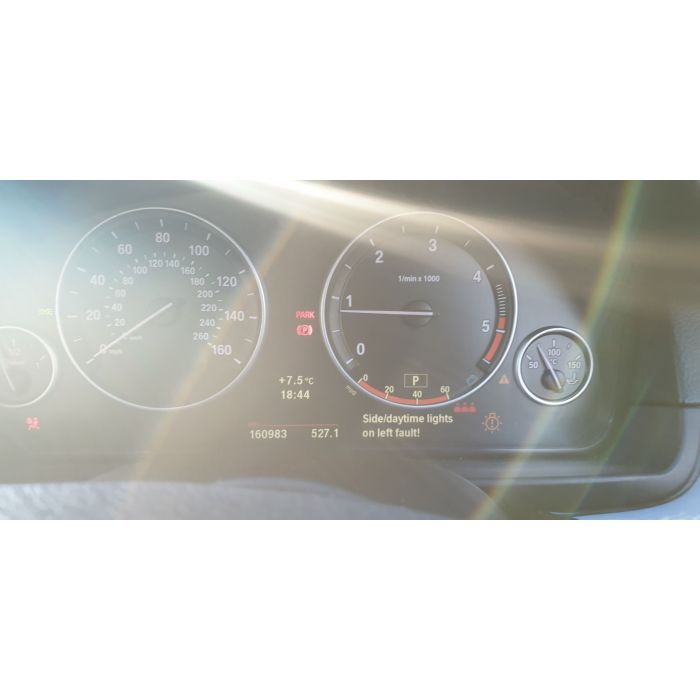

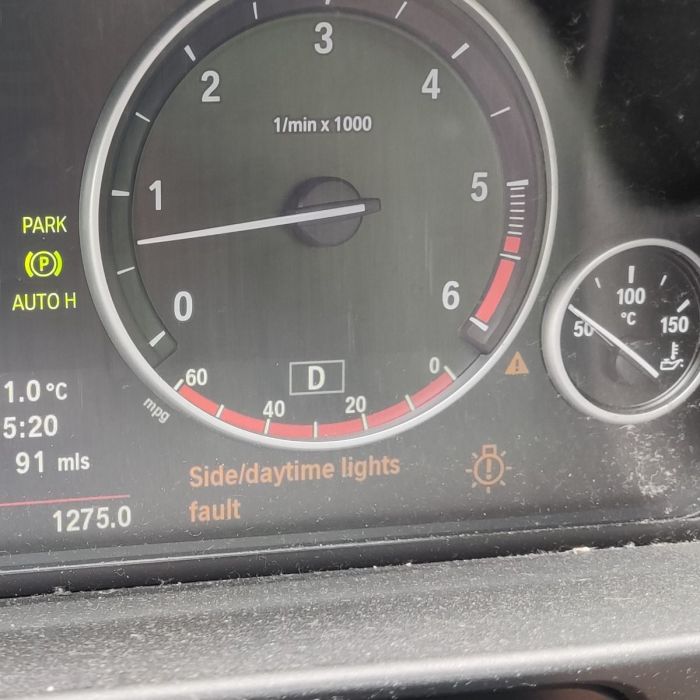

  • Side/daytime lights fault
  • Adaptive Lichtsysteme defekt
  • Fernlicht links defekt
  • Fernlicht rechts defekt
  • Abblendlicht links defekt
  • Abblendlicht rechts defekt
  • Leuchtweitenregulierung defekt

BMW part numbers:

  • 7262947 03
  • 726294703
  • 7262947 02
  • 726294702
  • AHL/TFL
  • AHLTFL

LEAR part numbers:

  • 532385807 04
  • 53238580704
  • 532385807 02
  • 53238580702

Compatible cars:

  • BMW 5 Series F10 Saloon Sedan Pre-Facelift 2010, 2011, 2012, 2013
  • BMW 5 Series F11 Estate Touring Pre-Facelift 2010, 2011, 2012, 2013
  • BMW 5 Series F07 GT Gran Turismo Pre-Facelift & Facelift 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
  • 5 Series: 520i, 523i, 528i, 530i, 528xi, 535i, 550i, 520d, 525d, 530d, 535d, M5, M Sport
