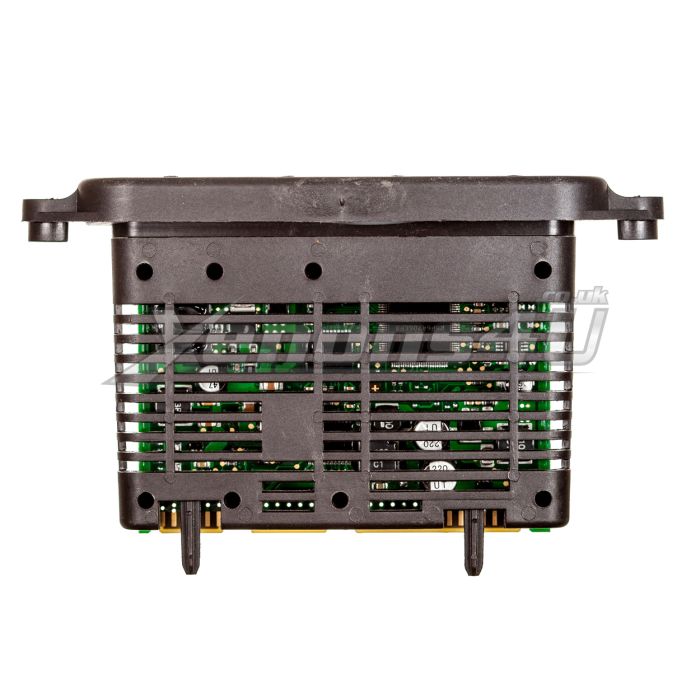

7304062 535214802 AHLF20 TMS Headlight Driver Module

7304062 AHLF20 535214802 TMS Headlight Driver Module

LEAR 7304062 535214802 TMS Driver Module is factory fitted on BMW 1 Series F20 and F20 with Xenon Adaptive Headlights and D1S 35W Gas Discharge HID bulbs for main beam.

LEAR TMS ballast also known as headlight driver module is responsible for controlling vertical aim, Angel Eyes (Halo Rings) and front turn signal (indicators).

Direct replacement to old faulty genuine BMW 7304062 AHLF20 LEAR 535214802 TMS Headlamp driver module

The most common BMW 1 series F20 F21 Pre-Facelift warning messages

Adaptive headlights failure
Headlight Vertical Aim Control Failure
Side/daytime lights fault
Turn indicator front left failure
Turn indicator front right failure

BMW part numbers:

63117304062
7304062 02

Lear part numbers:

535214802 00
53521480200

More compatible part numbers

63117316144 7316144 02 535214804 03
63117305238

Compatible BMW 1 series F20 F21 Pre-Facelift Adaptive Xenon headlamps

7229694-10 1ZS010741-44/AK
7229694-08 1ZS010741-44/AI
7229694-07 1ZS010741-44/AH
7229693-10 1ZS010741-43/AK
7296907-07 1ZS010741-63/AJ
63117296907
63117296908 7296908
63117296909 7296909
1ZS010741-671
1ZS010741-67/AA
1ZS010741-68/AA
1ZS010741-681
1ZS010741-651
7229693-09 1ZS010741-43/AJ
7229693-08 1ZS010741-43/AI
7229693-07 1ZS010741-43/AH
7229694-11
1LL010741-57/AA
1LL010741-571
1LL010741-58/AA
1LL010741-581
7296911-07 1LL010741-53/AJ

Compatible BMW cars

1 Series F20 Hatchback Pre-Facelift
2010 2011 2012 2013 2014 2015
1 Series F21 Hatchback Pre-Facelift
2010, 2011, 2012, 2013, 2014, 2015
114i 116i 118i 125i M135i M140i 114d 116d EfficientDynamics Edition
118d xDrive 120d xDrive 125d M-Sport
Diesel Petrol Gasoline
