7304063 535215802 BIXF20 TMS Module

£89.99
In stock

Fast Delivery

Secure Checkout

  • What's Included: 1 BIXF20 Module
  • Condition: New
  • Warranty: 1 Year
  • Manufacturer: Xenons4U
  • BMW part numbers: 7304063 02
  • LEAR part number: 535215802 00
  • Placements: Front Headlights Left or Right side

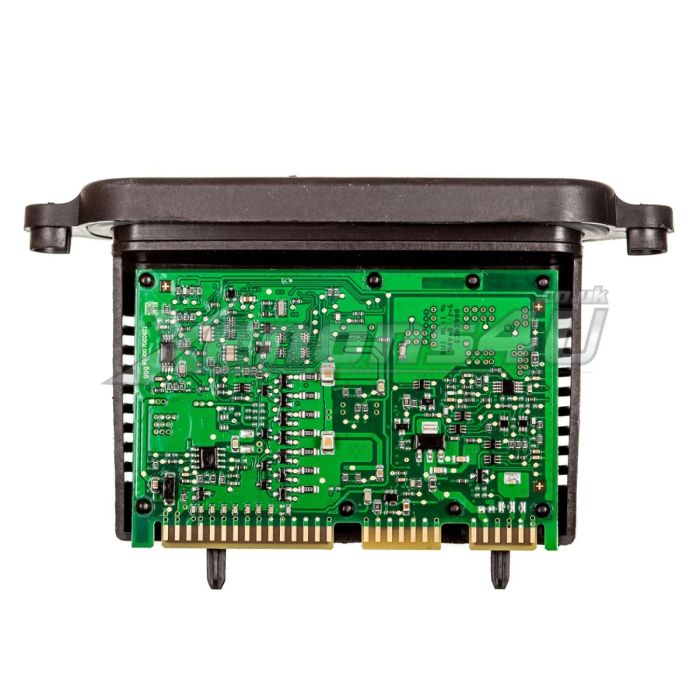

7304063 535215802 BIXF20 TMS Headlight Driver Module

LEAR 535215802 BIX F20 TMS Driver Module is factory fitted on BMW 1 Series F20 and F20 Pre-Facelift with Xenon Headlights and D1S HID bulbs for main beam.

BMW 7304063 02 Xenon headlamps must be without adaptive cornering function, if it has adaptive this control unit won't work.

TMS ballast module is responsible for controlling few functions on headlight, such as Angel Eyes, Daytime Running Lights (DRL), front turn signal indicators.

7304063 BIXF20 ballast doesn't require coding and it is direct replacement to faulty genuine bmw or lear brand part.

One headlamp uses one 7304063 TMS driver module.

The most common diagnostic trouble fault codes

  • 800FC3 Initialization fault in left headlamp driver module
  • 800FC2 Initialization fault in right headlamp driver module
  • 800FC3 Initialisation fault in headlight driver module left
  • 800FC2 Initialisation fault in headlight driver module right
  • 800FC7 Internal fault in STML (Left hand headlamp driver module)
  • 800FC8 Internal fault in STML (Right hand headlamp driver module)
  • 800FC7 lin bus, headlight driver module (TMS) right, communication fault
  • 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
  • 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
  • 800F86 Daytime Driving Light / Side Light, left, faulty
  • 800F87 Daytime Driving Light / Side Light, right, faulty
  • 800F88 Output daytime driving light / side light, left, short-circuited
  • 800F89 Output daytime driving light / side light, right, short-circuited
  • 800FCB Headlight driver module (TMS), left, faulty
  • 800FCE Headlight driver module (TMS), right, faulty
  • 800FC0 LWR fault in headlight driver module, right
  • 800FC1 LWR fault in headlight driver module, right
  • 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
  • 800F40 Direction Indicator, Front Left, Faulty
  • 800FD0 Design/Side Marker Light, Left, Faulty
  • 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
  • 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
  • 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit

The most common BMW warning messages

  • Daytime/parking lamp malfunction
  • Left turn signal malfunction
  • Right turn signal malfunction
  • Turn indicator front left failure
  • Turn indicator front right failure
  • Adaptive headlights failure
  • Headlight Vertical Aim Control Failure
  • Side/daytime lights fault
  • Parking/daytime lights
  • Lighting system front left failure
  • Lighting system front right failure
  • Adaptive Lichtsysteme defekt
  • Fernlicht links defekt
  • Fernlicht rechts defekt
  • Abblendlicht links defekt
  • Abblendlicht rechts defekt
  • Leuchtweitenregulierung defekt

BMW part numbers

  • 63117304063
  • 7304063 02
  • 730406302

LEAR part numbers

  • 535215802 00
  • 53521580200

More compatible part numbers

  • 63117316145
  • 7316145 02
  • 731614502
  • 535215804 05
  • 53521580405

Compatible BMW cars

  • 1 Series F20 5-door hatchback 2010 2011 2012 2013 2014 2015
  • 1 Series F21 3-door hatchback 2010 2011 2012 2013 2014 2015
  • 114i 116i 118i 125i M135i M140i petrol gasoline
  • 118i M-Sport Shadow Edition M-Sport
  • 114d 116d EfficientDynamics Edition 118d 120d xDrive 125d diesel¬†
