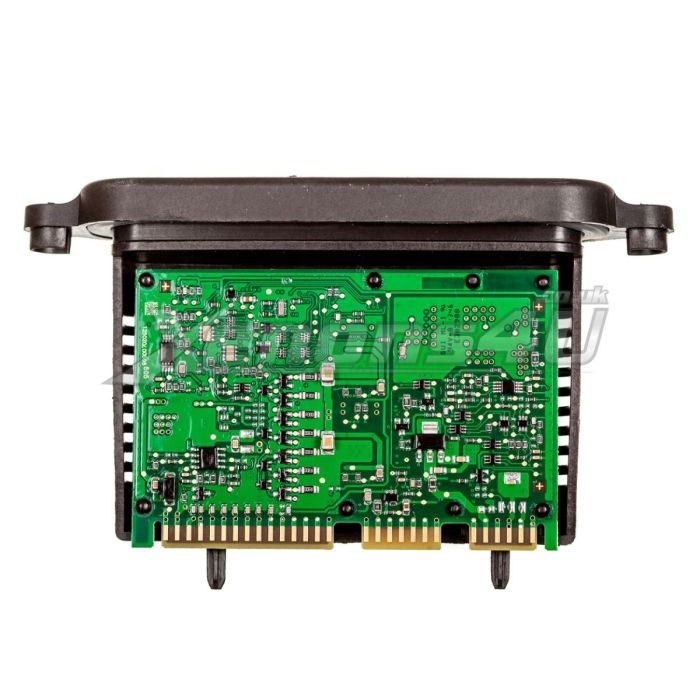

7316142 535216803 AHLF30 TMS Headlight Driver Module

7316142 535216803 TMS AHLF30 Headlight Driver Module.

LEAR 7316142 AHL F30 TMS module is factory fitted on 3 series F30 F31 and F34 GT Pre-Facelift cars with adaptive D1S Bi-Xenon headlamps.

LEAR 535216803 headlamp tms module is reponsible for controlling Halo Rings also known as Angel Eyes or LED Daytime Running or Driving lights and adaptive xenon lights.

When module fails you will usually get warning message saying that vertical aim failure has stopped working.

Coding is required after replacing faulty genuine BMW 7316142 AHLF30 LEAR 535216803 headlamp module.

The most common BMW warning messages

• Side/daytime lights fault
• Regolazione fari

BMW part numbers

• 7316142 02
• 731614202

Lear part number

• 535216803 00
• 53521680300

More compatible part numbers

• 63117316186
• 7316186 02
• 731618602
• 535216806 09
• 535216806 05
• 53521680609
• 53521680605

Compatible BMW cars

• 3 Series F30 Saloon Sedan Pre-Facelift
• 2011 2012 2013 2014 2015
• 3 Series F31 Estate Pre-Facelift
• 2011 2012 2013 2014 2015
• 3 Series F34 Gran Turismo (GT) Pre-Facelift
• 2012 2013 2014 2015
• 318i 320i 330i 340i 330e M-Sport M3 petrol gasoline
  316d 318d 320d 325d 330d 335d xDrive diesel
