7316145 535215804 BIXF20 TMS Module

£89.99
In stock

Fast Delivery

Secure Checkout

  • What's Included: 1 BIXF20 Module
  • Condition: New
  • Warranty: 1 Year
  • Manufacturer: Xenons4U
  • BMW part numbers: 7316145 02
  • LEAR part number: 535215804 05
  • Placements: Front Headlights Left or Right side

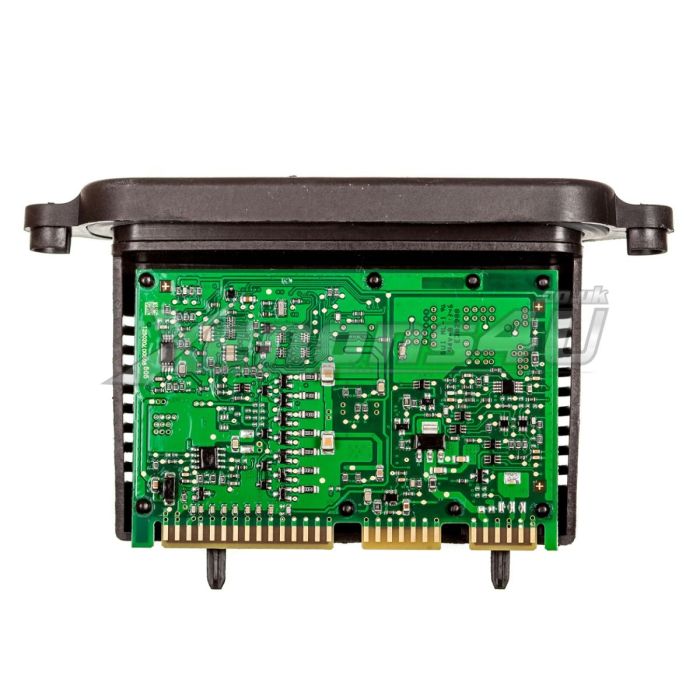

7316145 535215804 BIXF20 TMS Headlight Driver Module

LEAR 535215804 BIX F20 TMS Driver Module is factory fitted on BMW 1 Series F20 and F20 Pre-Facelift with Xenon Headlights and D1S HID bulbs for main beam.

BMW 7316145 02 Xenon headlamps must be without adaptive cornering function, if it has adaptive this control unit won't work.

TMS ballast module is responsible for controlling few functions on headlight, such as Angel Eyes, Daytime Running Lights (DRL), front turn signal indicators.

7316145 BIXF20 ballast doesn't require coding and it is direct replacement to faulty genuine bmw or lear brand part.

One headlamp uses one 7316145 TMS driver module.

The most common diagnostic trouble fault codes

  • D90D2F Headlight Driver Module TMS Left LIN: No Lin-Slave

The most common BMW 1 series F20 F21 warning messages

  • Headlight vertical aim control failure

BMW part numbers

  • 63117316145
  • 7316145 02
  • 731614502

LEAR part numbers

  • 535215804 05
  • 53521580405

More compatible part numbers

  • 63117304063
  • 7304063 02
  • 730406302
  • 535215802 00
  • 53521580200

Compatible BMW 1 series F20 F21 Xenon headlamps

  • BMW 7229687-11
  • Hella 1LL010741-23/AL

Compatible BMW cars

  • 1 Series F20 5-door hatchback 2010 2011 2012 2013 2014 2015
  • 1 Series F21 3-door hatchback 2010 2011 2012 2013 2014 2015
  • 114i 116i 118i 125i M135i M140i petrol gasoline
  • 118i M-Sport Shadow Edition M-Sport
  • 114d 116d EfficientDynamics Edition 118d 120d xDrive 125d diesel
