7316147 535217804 BIXF30 TMS Headlight Driver Module

7316147 01 535217804 00 BIXF30 TMS Headlight Driver Module.

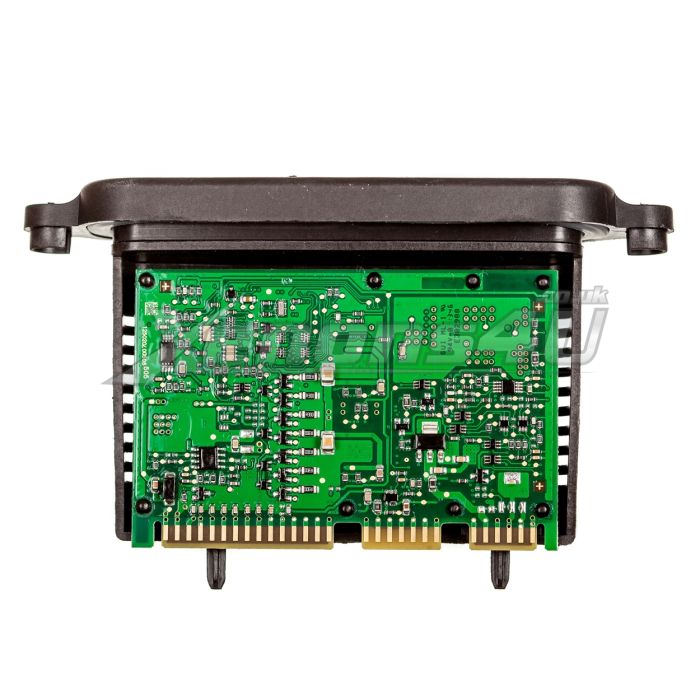

TMS headlight driver module is factory fitted on BMW 3 series F30, F31 and F34 Gran Turismo with Bi-Xenon headlights without adaptive lighting feature.

7316147 module is direct replacement for bmw or lear brand part.

BIX F30 Headlight Module is responsible for controling LED Angel Eyes (Halo Rings) and vertical light movement up or down and turn signals indicators.

If you are experiencing various malfunctioning errors on your 3 series such as red headlight icon, headlight warning light malfunction failure fault, vertical aim also known as adaptive headlight failure error, eye brow not working or flickering, LED Angel Eyes (Daytime Driving Lights) not working both rings at the same time or flickering, it means LEAR TMS headlight driver module has failed and it needs to be replaced.

BMW car dealer always suggest to replace whole headlamp, which will cost you a fortune to do that, but to fix this issue you can just replace tms driver module and it will work flawessly, there is no need to spend a lot of money and buy new headlamp housing when you don't need it.

Please double check provided part numbers to make sure it is correct part for your vehicle, if you are unsure, please contact our customer support for help.

Each headlamp uses one 7316147 01 TMS module per side.

Direct replacement and no modifications are required.

BMW DTC Diagnostic Trouble Codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty

The most common warning messages for faulty TMS module

• Side/daytime lights fault
• Regolazione fari

BMW oem part numbers

• 7316147 01
• 731614701

Lear part number:

• 535217804 00
• 53521780400

More compatible bmw and lear part numbers:

• 63117316147
• 7316147 02 731614702
• 535217805 01 535217805 03
• 7316147 01 731614701
• 535217804 00 53521780400
• 7316143 02 731614302
• 535217803 00

Compatible BMW cars:

• 3 Series F30 Saloon Sedan Pre-Facelift 2011 2012 2013 2014 2015
• 3 Series F31 Estate Touring Pre-Facelift 2011 2012 2013 2014 2015
• 3 Series F34 Gran Turismo (GT) Pre-Facelift 2012 2013 2014 2015
