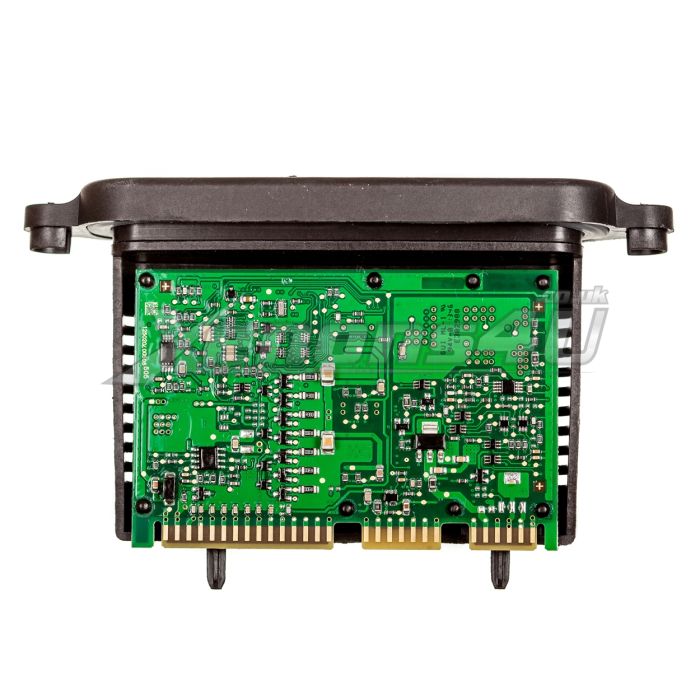

7316186 535216806 TMS AHLF30 Headlight Driver Module

7316186 535216806 TMS AHLF30 Headlight Driver Module.

BMW 7316186 AHL F30 TMS module is factory fitted on 3 series F30 F31 and F34 GT Pre-Facelift cars with adaptive Bi-Xenon headlamps.

LEAR 535216806 headlamp tms module is reponsible for controlling Halo Rings also known as Angel Eyes or LED Daytime Running or Driving lights and adaptive xenon lights.

When module fails you will usually get warning message saying that vertical aim failure has stopped working.

BMW part number 7316186 supersedes previous generation 7316142 headlight driver ballast.

Coding is required after replacing faulty genuine BMW 7316186 AHLF30 LEAR 535216806 headlamp module.

The most common BMW warning messages

• Daytime/parking lamp malfunction
• Left turn signal malfunction
• Right turn signal malfunction
• Turn indicator front left failure
• Turn indicator front right failure
• Adaptive headlights failure
• Adaptive headlight malfunction
• Headlight Vertical Aim Control Failure
• Headlamp vertical aim control malfunction
• Side/daytime lights fault
• Headlight vertical aim control!
• Side/daytime lights on left fault!
• Side/daytime lights on right fault!
• Turn indicator left failure
• Turn indicator right failure
• Adaptive Lichtsysteme defekt
• Fernlicht links defekt
• Fernlicht rechts defekt
• Abblendlicht links defekt
• Abblendlicht rechts defekt
• Leuchtweitenregulierung defekt

BMW part numbers:

• 63117316186
• 7316186 02
• 731618602

LEAR part numbers:

• 535216806 09
• 535216806 05
• 53521680609
• 53521680605

More compatible bmw and lear part numbers:

• 7316142 02
• 731614202
• 535216803 00
• 53521680300

BMW compatibility list

• 3 Series F30 Saloon Sedan Pre-Facelift
• 2011 2012 2013 2014 2015
• 3 Series F31 Estate Pre-Facelift
• 2011 2012 2013 2014 2015
• 3 Series F34 Gran Turismo (GT) Pre-Facelift
• 2012 2013 2014 2015
• 318i 320i 330i 340i 330e M-Sport M3 petrol gasoline
• 316d 318d 320d 325d 330d 335d xDrive diesel
