7316208 535212805 BIXF07 TMS Headlight Driver Module

7316208 535212805 BIXF07 TMS Headlight Driver Module for bmw cars

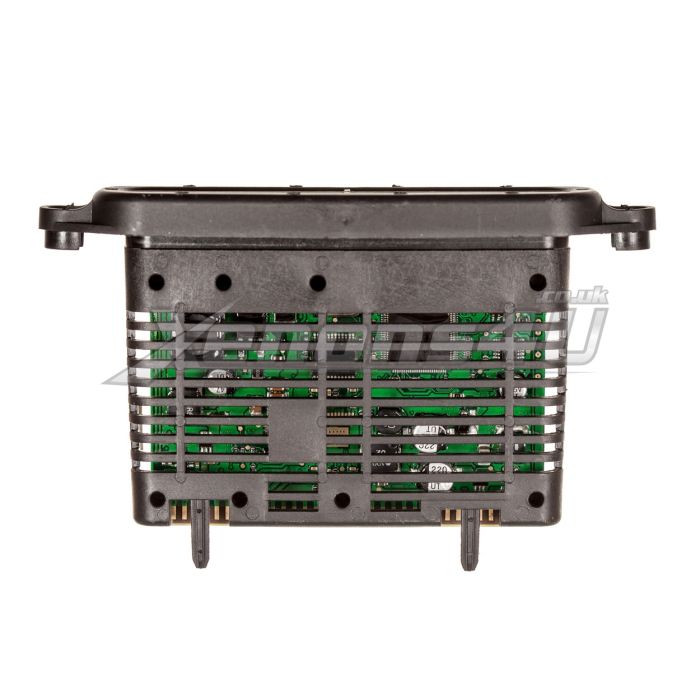

Headlight Driver module is factory fitted on BMW 5 Series with Xenon Headlights and D1S 35W gas discharge HID bulbs for main beam without adaptive lights also known as cornering lights or AHL AFS feature.

7316208 03 module controls halo rings side/daytime lights and fron turn signal indicator lights.

If you are seeing any malfunction related to above functions or getting headlight vertical aim control failure or side/daytime lights fault message, it means that module needs to be replaced.

BIX F07 535212805 TMS Control driver module fits xenon light headlamps only without adaptive curve lighting feature.

BMW headlight driver unit can be fitted to driver's or passenger's side, left or either right side.

Please double check provided BMW and LEAR part numbers to make sure it is correct part for your vehicle.

Each headlight uses one TMS 535212805 BIX F07 module, there few different types of this part.

Our LED headlamp TMS driver module doesn't require coding.

The most common diagnostic trouble fault codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FCC Coding errors in the right headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC2 Coding errors in the right headlamp driver module
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F86 Daytime running light/left parking defect
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F87 Daytime running light/right parking defect
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty
• 800FC0 LWR fault in headlight driver module, right
• 800FC1 LWR fault in headlight driver module, right
• 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
• 800F40 Direction Indicator, Front Left, Faulty
• 800FD0 Design/Side Marker Light, Left, Faulty
• 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
• 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 800F8D Abbiegelicht rechts defekt
• 800FC9 LIN-Bus Scheinwerfertreibermodul (TMS) rechts: Kommunikationsfehle
• 800FC6 Internal fault in the right headlamp module

The most common warning messages for faulty TMS module:

• Daytime/parking lamp malfunction
• Parking/daytime lights
• Left turn signal malfunction
• Right turn signal malfunction

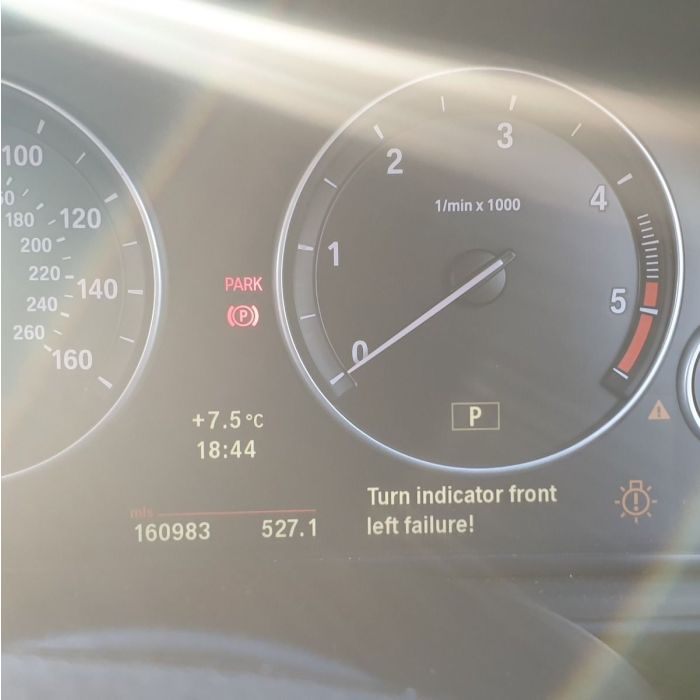

• Turn indicator front left failure
• Turn indicator front right failure

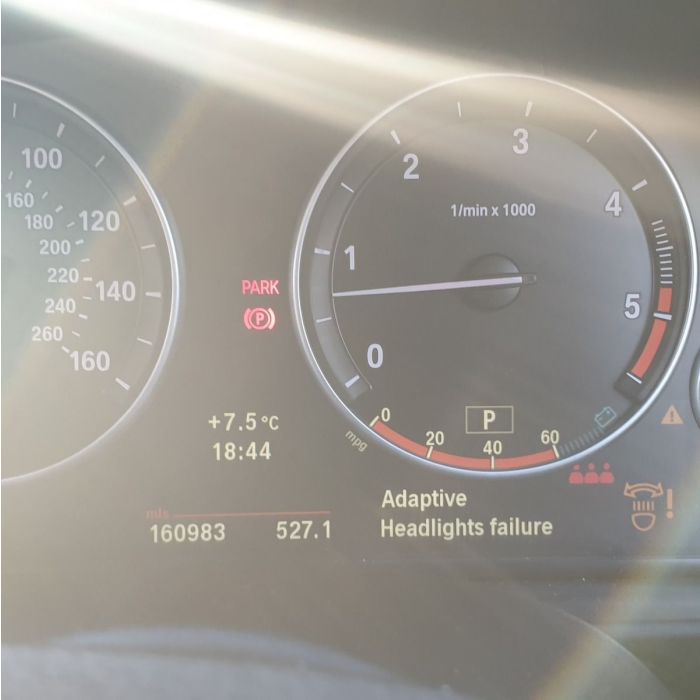

• Adaptive headlights failure
• Adaptive headlight malfunction

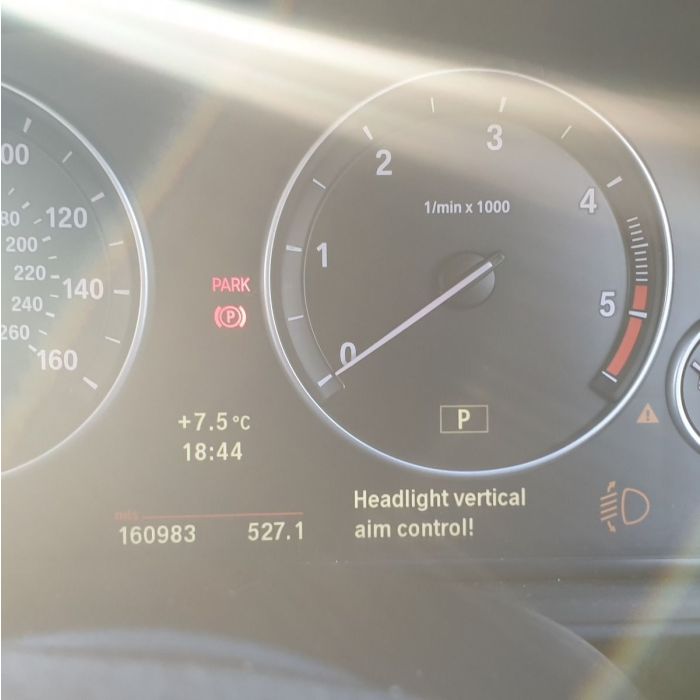

• Headlight Vertical Aim Control Failure
• Headlamp vertical aim control malfunction

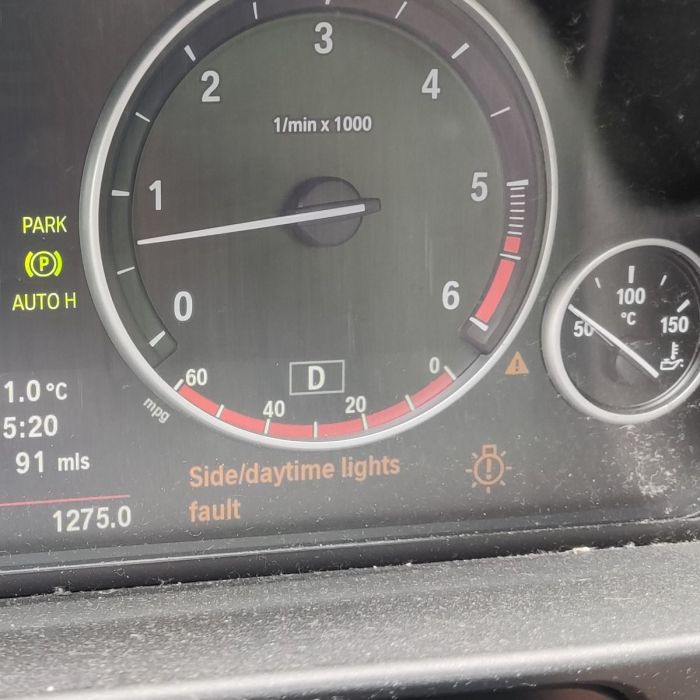

• Side/daytime lights fault
• Headlight vertical aim control!

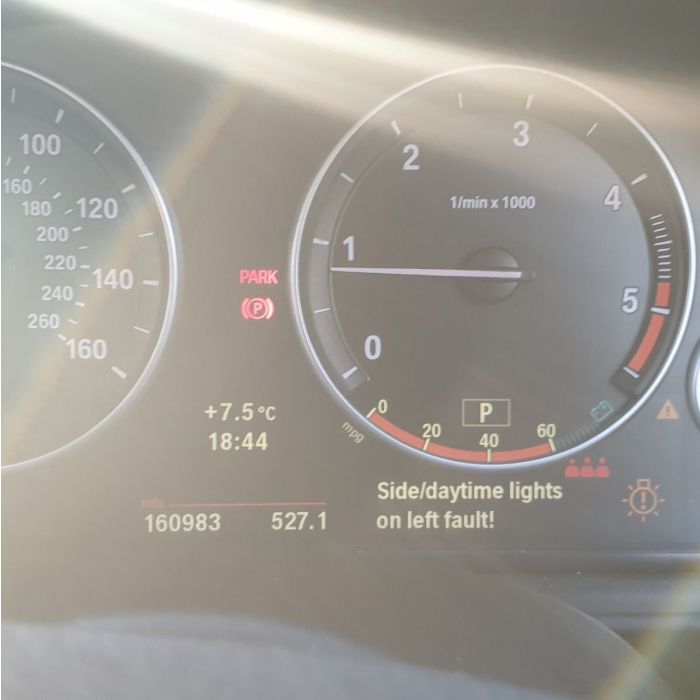

• Side/daytime lights on left fault!
• Side/daytime lights on right fault!
• Turn indicator left failure
• Turn indicator right failure
• Turn Indicator front left failure!
• Turn Indicator front right failure!
• Left Cornering light failure
• Right cornering light failure
• Adaptive Lichtsysteme defekt
• Leuchtweitenregulierung defekt
• Leuchtweiten-Regulierung defekt
• Kurvenlicht ausgefallen!
• Leuchtweiten-regulierung gestort!
• Blinker vorn links defekt
• Blinker vorn rechts defekt
• Blinker links defekt
• Blinker rechts defekt
• Veilleuse/feu croisement jour def.! defectueux
• Panne feu de croisement de jour!
• Veilleuse et feu de croisement de jour defectueux
• Phares directionnels gauches défectueux
• Phares directionnels droits défectueux
• Panne clignotant avant gauche
• Panne clignotant avant droite
• Clignotant gauche defectueux
• Clignotant droite defectueux
• Reglage portee des phares defectueux
• Defaut reglage portee des phares!
• Clignotant avant gauche defectueux
• Clignotant avant droite defectueux
• Parkeringsljus/varselljus defekt
• Blinkers vanster fram defekt
• Blinkers höger fram defekt
• Ljusviddsreglering defekt
• Ljus Vid Reglering defekt
• Kurvljus defekt
• Anomalia no controlo da altura dos farois!
• Pisca esquerdo com falhas
• Pisca direito com falhas
• Pisca Certo com falhas
• Pisca luzes conduc diurna com falhas
• Pisca/luzes conduc. diurna com falhas
• Pisca dianteiro esq. nao funciona
• Pisca dianteiro dir. nao funciona
• Eclairage virage defectueux
• Stand-/Tagfahrlicht links ausgefallen!
• Stand-/Tagfahrlicht rechts ausgefallen!
• Stand-/Tagfahrlicht defekt
• Standlicht und Tagfahrlicht defekt
• Leuchtweitenregulierung der scheinwerfer defekt
• iLuz de pos. y cond. diurna der. averiada!
• iLuz de pos. y cond. diurna izq. averiada!
• Luz de posición y conducción diurna derecho averiada
• Luz de posición y conducción diurna izquierda averiada
• iRegulacion alcance luces!
• Fallo regulacion alcance luces
• Fallo de la luz de curvas
• Alcance de luces
• Panne veilleuse/feu croisement jour D!
• Avaria luce posizione e luce diurna!
• Avaria regolazione altezza fari!
• Indicatore direzione sinistro guasto
• Indicatore direzione destro guasto
• Parkeer- en dagrijlicht defect
• Richtingaanwijzer links defect
• Richtingaanwijzer rechts defect
• Richtingaanwijzer linksvoor defect
• Richtingaanwijzer rechtsvoor defect
• Defect koplampafstelling

TMS ballast model:

• BIX F07
• BIXF07

BMW part numbers:

• 7316208 03
• 731620803

LEAR part numbers:

• 535212805 07
• 53521280507

More compatible bmw and lear part numbers:

• 535212803 01
• 53521280301
• 535212805 05
• 53521280505
• 7316208 01
• 731620801

Compatible BMW F10 F11 F07 GT headlamps part numbers

• 1EL010131-22/AL 7203246-13
• 1EL010131-22/AP 7203246-17
• 1EL010131-22/AM 7203246-14
• 1EL010131-51/AJ 7271911-08
• 1EL010131-22/AJ 7203246-11
• 1EL010131-21/AK 7203245-12
• 1LL011087-23/AF 7317133-05
• 1LL010130-23/AV 7199609-22
• 1LL010130-23/AP 7199609-16
• 1LL010130-23/AR 7199609-18
• 1LL010131-54
• 1LL010131-531
• 1LL010131-04/AL 7203242-11
• 1LL010131-03/AL 7203241-11
• 1LL010131-23/AJ 7203247-11
• 1LL010131-24/AJ
• 1LL010131
• 1ZS010130-44/AM 7199616-13
• 1ZS010130-44/AK 7199616-11
• 1ZS010131-41/AK
• 1ZS010131-44/AS 7203254-20 7203248-11 7203254-20
• 1ZS010131-44/AM 7203254-14
• 1ZS010131-44/AP 7203254-17
• 1ZS010131-43/AP 7203253-17
• 1ZS010130-41/AG 7199613-07
• 1ZS010131-41/AP 7203254-17
• 1ZS010131-44/AT 7203254-21
• 1ZS010131-41/AM 7203251-14
• 1ZS010131-41/AI 7203251-10
• 1ZS010131-41/AK 7203251-12
• 1ZS010131-42/AI 7203252-10
• 1ZS010131-43/AJ 7203253-11
• 1ZS010131-45/AM 7203255-14
• 1ZS010131-46/AN 7203256-15
• 1ZS010131-46/AJ 7203256-11
• 1ZS010131-46/AT 7203256-21
• 1ZS010131-66
• 1ZS010131-65/AJ 7271903-07
• 1ZS010130-43/AK 7199615-11
• 1ZS010131-43/AH 7203253-09
• 1ZS010131-42/AR 7203252-19
• 1ZS010131-41/AR 7203251-19
• 1ZS010130-41/AK 7199613-11
• 1ZS010131-45/AK 7203255-12
• 1ZS010131-43/AT 7203253-21

Compatible BMW cars

• 5 Series F10 Saloon Sedan Pre-Facelift 2010 2011 2012 2013
• 5 Series F11 Estate Touring Pre-Facelift 2010 2011 2012 2013
• 5 Series F07 GT Gran Turismo Pre-Facelift 2008 2009 2010 2011 2012 2013
• 5 Series F07 GT LCI Facelift 2014 2015 2016 2017
• 520i 523i 528i 530i 528xi 535i 550i M5 petrol gasoline
• 520d 525d 530d 535d diesel xDrive M-Sport
