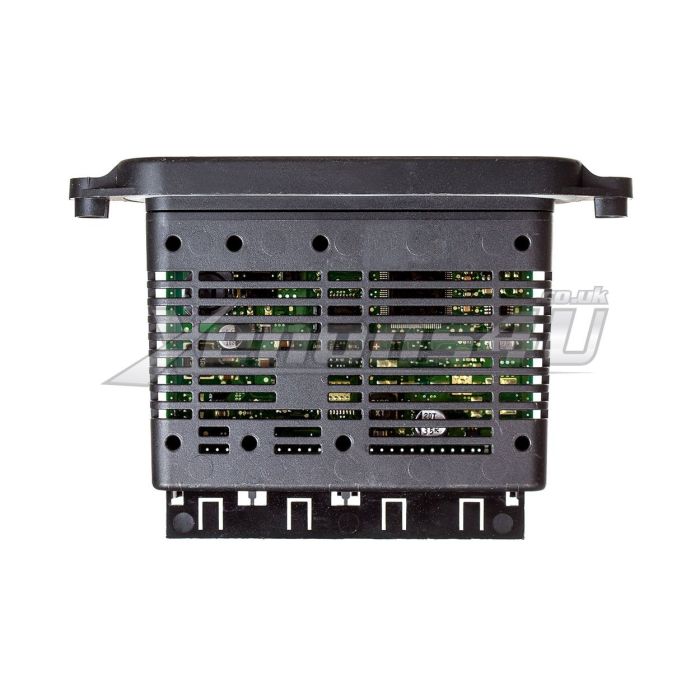

7363090 535214852 AHLF22 TMS Driver Module

7363090 535214852 AHL F22 TMS Headlight Driver module

LEAR AHL F22 7363090 01 ballast is factory fitted to BMW 2 Series F22 F87 M2 and F23 cars with adaptive Bi-Xenon headlamps.

How to identify if your headlight driver module has failed, there are few easy steps.

First of all check all the fuses, if they are in working order, secondly check what kind of malfunctions or on-board computer errors are poping up.

When both halo rings (Angel Eyes) stop to work, front indicators (turn signal) don't work anymore then it is definitely that TMS module has failed.

Additionally for AHL F22 headlights it could show vertical aim control failure on-board computer error.

7363090 TMS Driver Module fits only Xenon also known as Bi-Xenon (Bixenon) headlamps.

Please double check provided BMW and LEAR part numbers to make sure it is correct part for your vehicle.

Direct replacement to faulty genuine BMW 7363090 LEAR 535214852 03 AHLF22 TMS headlight driver module.

The most common diagnostic trouble fault codes

• 804201 Right headlight driver module (TMS) Daytime driving lights or position light, right has short circuit

The most common warning messages for faulty TMS module

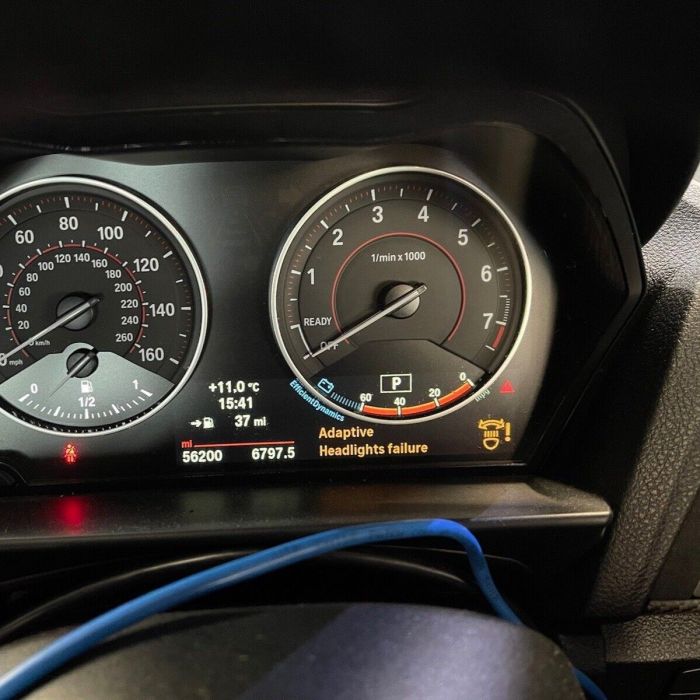

• Adaptive Headlights failure
• Headlight vertical aim control failure

BMW part numbers:

• 63117363090
• 7363090 01
• 736309001

LEAR part numbers:

• 535214852 03
• 53521485203

Compatible BMW cars:

• 2 Series: F22 Coupe 2012 2013 2014 2015 2016 2017
• 2 Series: F87 M2 Coupe 2014 2015 2016 2017
• 2 Series: F23 Convertible Cabriolet 2014 2015 2016 2017
• 218i 220i 228i 230i 235i 240i M235i M240i M2 xDrive petrol gasoline
• 218d 220d 225d diesel M-Sport
