7440880 7427614 7409625 7398839 7380781 TMS LED Module

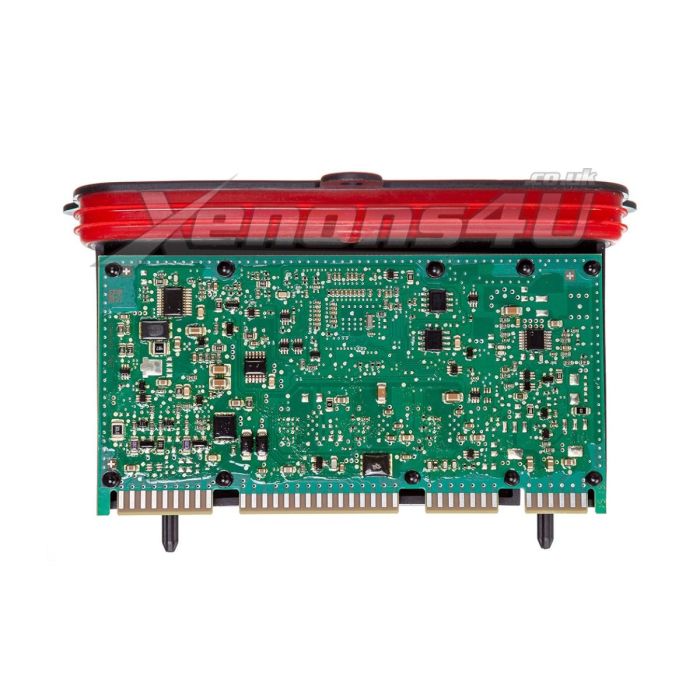

7440880 7427614 7409625 7398839 7380781 LED TMS Headlight Driver Control Module

LEAR 7409625 7398839 7380781 TMS LED headlamp module is factory fitted to BMW X series such as F15 X5 and F16 X6 SUV with full adaptive LED headlights.

LED adaptive headlamps mean that when you turn steering wheel to the left or right side - LED lights move to the same direction as well, this function also known as cornering lights.

To identify when you need to replace headlight control module there are many different malfunctions and errors, it could show red headlight error sign, show vertical aim control failure, it means that your LED lights can't be alligned and light will be pointed downwards only or adaptive lighting doesn't work, also it controls LED Angel Eyes (Daytime Running Lights) if they flicker or both rings have stopped to shine at all, LED turn signal (front indicator) dooesnt work or low or high LED beam doesn't work, then it means that bmw headlight driver module has failed.

These are the most common issues when you can identify, that headlight module has failed and needs to be replaced with new.

By replacing LEAR 7440880 7427614 TMS driver you will save massive amount of money, because dealer always suggest to buy brand headlight housing, which is not necessary in this case.

LEAR headlight ballast fits passenger's or driver's side.

Coding is required after replacing old LEAR TMS LED module.

The most common diagnostic trouble codes DTCs

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty

The most common BMW warning messages

• Adaptive Headlights failure
• Lighting system front left failure
• Lighting system front right failure
• Headlight vertical aim control failure
• Adaptivni světlomety vadne
• Osvetlovaci zarizeni vpredu vpravo vadne
• Osvetlovaci zarizeni vpredu levá vadne
• Dosah světla
• Regulace dosahu svetel vadna

LEAR and BMW part numbers

• 63117440880 7440880 01 535100C47 00 535100C47
• 63117427614 7427614 01 535100C4J 00
• 63117409625 7409625 01 740962501 535100C4E 01
• 63117398839 7398839 01 739883901 535100C48 00
• 63117380781 7380781 01 535100C47 00
• 7377146 535100846 00 53510084600

Compatible BMW cars

• X5 F15 2012 2013 2014 2015 2016 2017 2018
• X5M F85 2013 2014 2015 2016 2017 2018
• sDrive35i xDrive35i xDrive50i xDrive40e petrol gasoline
• sDrive25d xDrive25d xDrive40d M50d diesel
• X6 F16 2012 2013 2014 2015 2016 2017 2018 2019
• sDrive35i xDrive35i xDrive50i Petrol Gasoline
• xDrive30d xDrive40d M50d M-Sport diesel
• X6M F86 2013 2014 2015 2016 2017 2018 2019
