857647101 5WK96699B NOX Sensor
- What's Included: 1 NOX Sensor
- Condition: New
- Warranty: 1 Year
- Manufacturer: Xenosn4U
- Continental part number: 5WK96699B
- BMW part numbers: 13628576471, 857647101
- Placements: Exhaust system
857647101 5WK96699B NOX sensor
Continental 5WK96699B Nitrogen Oxide sensor is factory fitted on many different bmw cars
If you have did on-board computer scan and your car is showing error code about NOX sensor probe, it means that sensor has failed.
NOX stands for Nitrogen Oxide.
Error cleaning may be required, but just once after fitting new NOX sensor, it can be done by yourself, no need to visit BMW dealer.
5WK96699B Sensor fits many different BMW cars: E90, E91, F10, F11, F30, F25 X3, E70 F15 X5, F01 and many other models.
Information from original sticker: bmw ag made in germany continental 857647101.
Replacement sensor will save you a fortune and you will comply with enviromental laws again.
The most common BMW warning messages

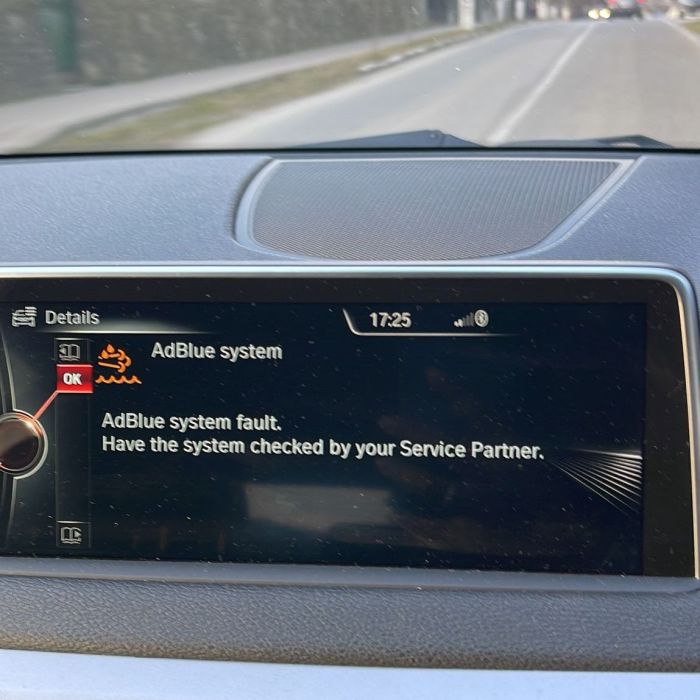

- AdBlue system fault
The most common diagnostic trouble codes dtc
- 2AEC Nitrogen Oxide Sensor Self Diagnostics
2AF0; 2B05 nitric oxide sensor, heating
2AF2; 2B06; 2B09 nitric oxide sensor, Lambda linear
2AF4; 2B07; 2B0A NOx sensor, electrical
2AF6; 2AFB; 2B0B nitric oxide sensor, Lambda binary
2AF9 nox sensor, nox signal: coast mode check
2EAE NOx sensor message missing (timeout)
30D6 nitric oxide sensor, plausibility
30D8 NOx sensor, Sensor damaged
30DA NOx sensor, heating time
30DC nitric oxide senor, heating
30DE NOx sensor – Lambdaprobe before catalyst, Korrelation
30E0 NOx sensor, Offset
30E2 nitric oxide sensor, thrust test
30E4 nitric oxide sensor, aging
30E6 nitric oxide sensor, dynamics
25C200 Nitrogen Oxide sensor after SCR catalytic converter, signal: Open circuit
25C300 Nitrogen Oxide sensor after SCR catalytic converter, signal: Short circuit to ground or positive
2BC500 Nitrogen oxide sensor downstream of SCR catalytic converter, message: missing
2BC700 Nitrogen Oxide sensor downstream of SCR catalytic converter, message: missing - 2AC600 SCR system: Efficiency Too Low, Poor AdBlue Quality Detected
- 26F500 SCR System: Efficiency Too Low
BMW part numbers:
- 8 576 471 01
- 857647101
- 8576471
- 13628576471
Continental part number:
- 5WK9 6699B
- 5WK96699B
More compatible oem part numbers
- 13628589846 858984601 5WK96699C
- 13628518791 851879101 5WK96699A
- 13628511666 851166601 5WK96699
- 13628509721
- 13627812530
BMW compatibility list:
- 1 Series F20 LCI Facelift 2014 2015 2016 2017 2018 2019
- 1 Series F21 LCI Facelift 2014 2015 2016 2017 2018 2019
- 2 Series F22 LCI Facelift 2016 2017 2018 2019
- 2 Series F23 LCI Facelift 2016 2017 2018 2019
- 3 Series E90 LCI Facelift 2008 2009 2010 2011
- 3 Series F30 2011 2012 2013 2014
- 3 Series F31 2011 2012 2013 2014
- 3 Series F30 LCI Facelift 2015 2016 2017 2018
- 3 Series F31 LCI Facelift 2015 2016 2017 2018
- 5 Series F07 GT LCI Facelift 2012 2013 2014 2015 2016 2017
- 5 Series F10 LCI Facelift 2013 2014 2015 2016
- 5 Series F11 LCI Facelift 2013 2014 2015 2016
- 7 Series F01 F02 LCI Facelift 2013 2014 2015
- X Series F25 X3 Facelift 2013 2014 2015 2016
- X Series F15 X5 2013 2014 2015 2016 2017 2018
- xDrive30d diesel
- X Serie F16 X6 2014 2015 2016 2017 2018 2019
Please note: This list is not full, NOX sensor may fit other car models as well, please check provided part numbers, pictures and compare to your old parts.
