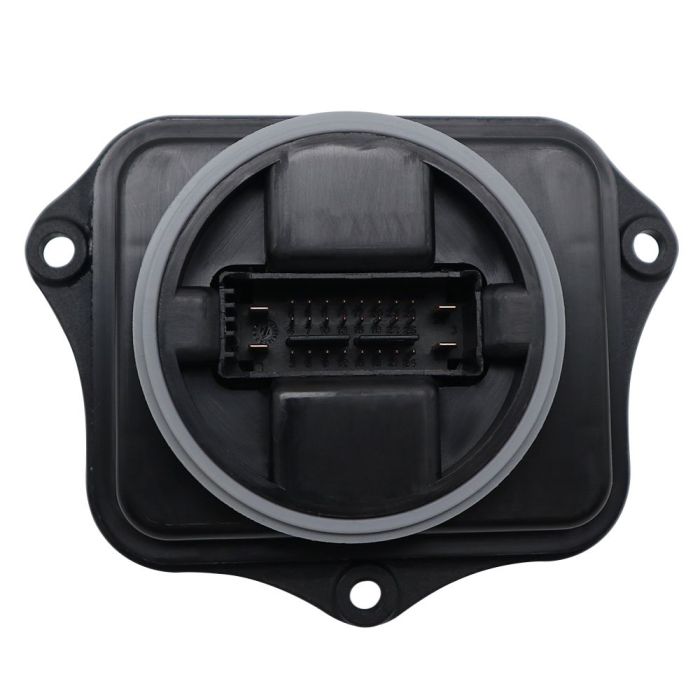

90051650 3G0941329 AFS Leistungsmodul Module

90051650 3G0941329 AFS Leistungsmodul module headlight cornering ballast

Valeo 3G0941329 AFS headlight cornering unit is factory fitted on Volkswagen VW cars, which have LED headlamps.

If your LED Lights movement has stopped to work and you see on-board computer error, it means that this AFS 3G0 941 329 module has failed and needs to be replaced with new.

Mostly of the times once you turn on LED Headlights the light will point downwards and not come up.

There is no need to buy brand new headlamp unit, just replace this faulty AFS ballast 3G0941329.

Information from original sticker: VLS VF2 H02 S0003.

Coding might be required after replacing part.

The most common VW Volkswagen warning messages

• Error: cornering light (AFS)

The most common diagnostic trouble codes DTCs

• 55 Headlamp Range Control
• C108313 Left Stationary AFS - Open Circuit
• C108413 Right stationary AFS - Open circuit
• C108231 - Right headlamp power output stage No signal
• C1082F0 - Right headlamp power output stage
• C108131 - Left headlamp power output stage No signal
• C1081F0 - Left headlamp power output stage

Valeo part number:

• 90051650

VW Audi Seat part numbers:

• 3G0 941 329
• 3G0941329

Compatible VW Volkswagen Passat B8 3G LED headlamps

• Valeo 90064974 3G2941113A
• Valeo 90136116 3G2941081G

Compatible cars:

• VW Passat B8 3G with LED headlights
• Alltrack Variant Saloon Sedan Estate Wagon
• 2014 2015 2016 2017 2018
• GT GTE 4MOTION Petrol Gasoline Diesel
