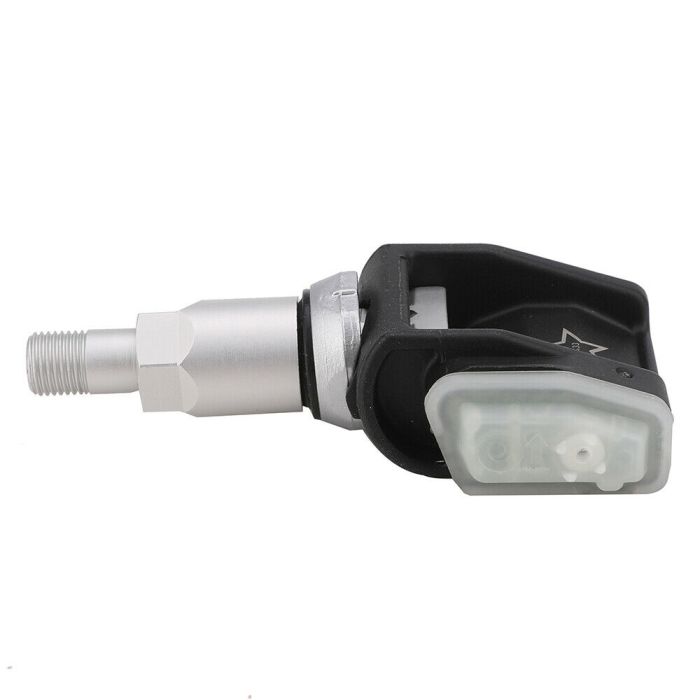

Mercedes-Benz A0009052102 6876955-02 152769-10 0280-15-8001 Tyre Pressure Sensor

Genuine Mercedes-Benz A0009052102 6876955-02 152769-10 0280-15-8001 TPMS RDCi Tyre Pressure sensor

6876955-02 wheel nut sensor is factory fitted and used on many different bmw cars.

RDCi Wheel pressure sensor comes together with attached nut and it replaces anatel 0280-15-8001 brand sensor.

Tyre pressure control system is factory fitted to all cars for driver' safety to make sure there is no malfunction or leaking air inside the wheel, which could lead to the accident.

When battery of the 152769-10 tire sensor has died or sensor was damaged or there are no wheel sensors fitted at all, then tyre pressure monitor system in short TPMS will trigger an error code to be displayed on the dashboard.

The most common mercedes-benz diagnostic trouble fault codes

• C159916 The battery of the tire pressure sensor has a malfunction. The limit value for electrical voltage has not been attained

The most common BMW warning messages

• Tyre Pressure Monitor failure
• Tyre Pressure Monitor (RDC) failure
• Tire Pressure Monitor (RDC) failure
• Unable to detect any loss of tyre pressure. Check tyre pressures manually
• If problem recurs, have it checked by your service partner

Tyre pressure sensor uses 433 Mhz frequencies and original sensor was made in UK.

No coding is required after replacing 6876955-02 wheel sensor, just install new sensor and after good 30 minutes a sensor will code itself to the car.

You can replace as many sensors as you want, all four the same time or just that ones, which have malfunction.

Tire pressure sensor is compatible with many different part numbers, a list of part numbers are below.

Anatel part numbers:

• 0280-15-8001
• 0280158001

BMW part numbers:

• 36106876955
• 6876955-02
• 687695502

Other part numbers:

• 152769-10
• 15276910

More compatible bmw part numbers

• 6887140-01 688714001
• 36106887140 6887140-02
• 688714002
• 36106876957
• 36106872803
• 36106872774 6872774-02

More compatible mercedes-benz part numbers

• A000 905 39 07
• A0009053907
• A000 905 00 30
• A0009050030
• A0009052102Q04
• A0009052102Q05

BMW compatibility list:

• 1 series F40 2019 -
• 3 series G20 G21 2019 2020 2021
• 5 series G30 G31 2017 2018 2019 2020 2021
• 520i 530i 540i M550i xDrive M5 petrol
• 520e 530e 545e PHEV Hybrid iPerformance
• 518d 520d 525d 530d 540xDrive M550d xDrive diesel
• 6 series G32 GT Gran Turismo 2017 2018 2019 2020
• 6 series F12 Gran Coupe 2018 -
• 7 series G11 G12 2015 2016 2017 2018 2019 2020
• 8 series G14 G15 G16
• X3 G01 SUV 2017 2018 2019 2020
• X4 G02 2018 2019 2020
• X5 G05 SUV 2018 2019 2020
• X6 G06 2020 2021
• X7 G07 2019 2020 2021
• Z4 G29 2019 2020 2021
• Rolls-Royce Cullinan
• Rolls-Royce Ghost
• Rolls-Royce Phantom

Mercedes-Benz compatibility list:

• A class W177 2018 2019 2020 2021
• A class Z177 V177 LWB Saloon Sedan
• 5-Door Hatchback
• 4- Door Saloon Sedan
• A160 A180 A200 A220 A250 4MATIC A35 A45 AMG petrol
• A160d A180d A200d A220d A220e A250e diesel Plug-in Hybrid
• B class W247 2019 2020 2021
• CLA C118
• E class W213 Saloon Sedan 2016 2017 2018 2019 2020
• E class S213 Estate
• E class C238 Coupe E220d E250d BlueTEC 4MATIC
• E class A238 Convertible Cabriolet
• E200d E220d E300de E350d E400d 4MATIC BlueTEC diesel
• E200 E250 E300 E300e E350 E350e E400 E450 E43 E53 E63 AMG petrol
• CLS C257
• G class W464 SUV
• GLA H247 2020 2021
• GLB X247
• GLE V167 Coupe
• GLS X167
• GT-4 X290
• Sprinter VS30
• Toyota Supra 2019 2020 2021

Please note: tire pressure sensor might fit other car models as well, please check old part number.
