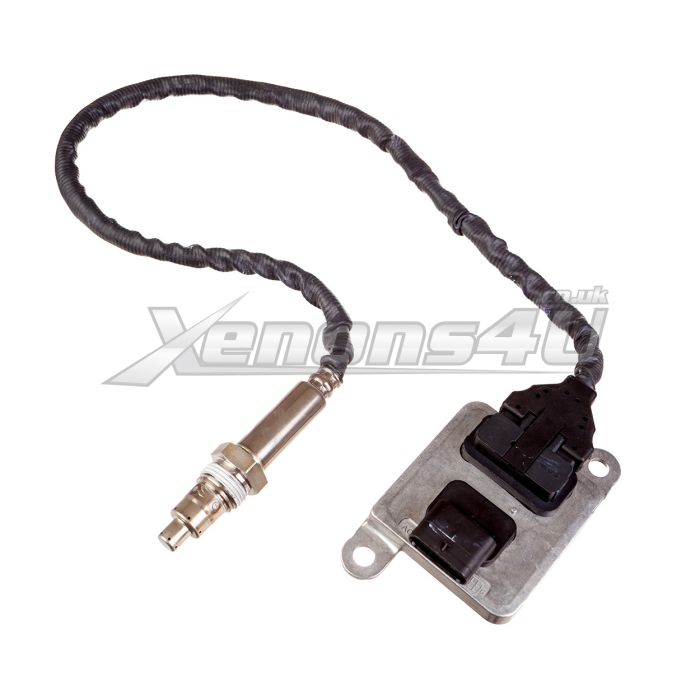

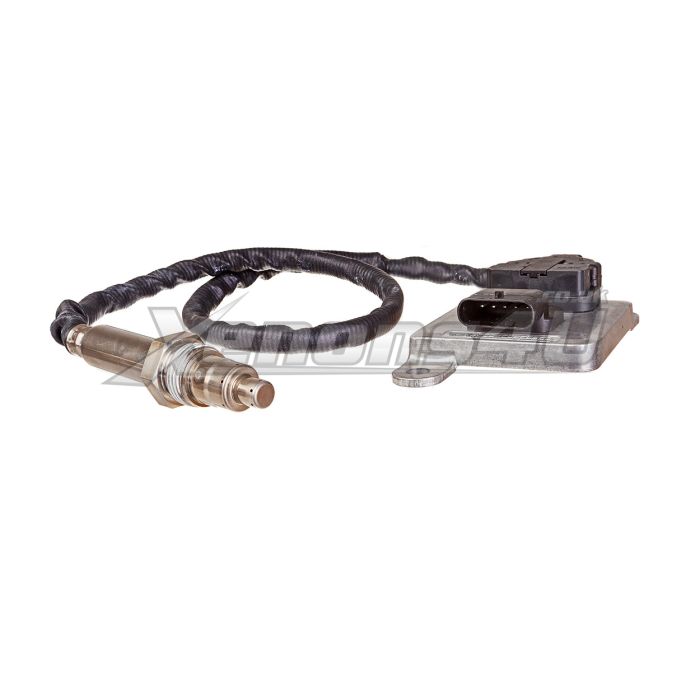

A0009052809 A2C16442600-291 NOX Sensor

A0009052809 A2C16442600-291 NOX sensor

A0009052809 Nitrogen Oxide control unit is direct replacement to faulty genuine mercedes-benz or continental A000 905 28 09 sensor.

If you have did on-board computer scan after seeing check engline light on the dashboard and your car is showing any of these error codes P229F62 P229F P2202 U029E00 U029E U029D00 U029D, it means that NOX sensor has failed.

It is always recommended to fix this issue as soon as possible to avoid any damages to DPF filter, otherwise diesel particulate matter or soot can clog filter and it will cost you thousands to fix.

For your piece of mind we are offering 12 month warranty.

NOX stands for Nitrogen Oxide.

NOX sensor NS0004 NS 0004 ZGS 001 Q 01 is also called as oxygen sensor or lambdasonde, lambda zonde sonde or DPF control unit.

Sensor is fitted to all Mercedes-Benz cars with EURO 6 EURO6 for 4-Motion 4Motion 4-Matic 4Matic and BlueTec models.

Error cleaning may be required, but just once after replacing upstream front NOX sensor on the exhaust system.

Once sensor is replaced you can delete error codes by yourself with phone and simple app, there is no need to visit dealer and spend £65 for nothing.

All steps are very easy:

• 1. Download app
• 2. Plug-in OBD2 Bluetooth scanner to car's OBD port
• 3. Connect your phone with scanner via bluetooth
• 4. Read all error codes and clear them

A2C16442600-291 sensor fits many different Mercedes-Benz cars W205 S205 A205 C205 Facelift, W213 S213 C238 A238 and many other.

A000 905 28 09 diesel exhaust sensor has few more compatible part numbers, which are written below in the part numbers section.

Replacement sensor probe with ballast unit will save you a fortune, solve your NOX problems and you will comply with enviromental laws again.

NOX-Sensor in other languages: Capteur Nox and Sensore De NOX.

Mercedes-Benz dealer will charge you over £500 for a single sensor.

The most common warning messages

• AdBlue malfunction em. op. in x mi km see owner's man.
• AdBlue system malfunction See Owner's Man.
• AdBlue system malfunction Emergency modie in x mls km
• Cannot measure fluid level AdBlue
• Eng. Start not possible in x mi km

The most common diagnostic trouble codes DTC

• P229E-11 P229E11 - NOx sensor 2 (cylinder bank 1) has an electrical fault. There is a short circuit to ground
• P220F77 P220F-77 - The heater of NOx sensor 2 (cylinder bank 1) has an electrical fault. The commanded position cannot be reached
• P220F77 P220F-77 Nox sensor heater control circuit range / performance bank 1 sensor 2. The commanded position cannot be reached
• P229F85 P229F-85 NOx sensor 2 (cylinder bank 1) has a malfunction. There is a signal fault or the message is faulty
• P229E13 P229E-13 NOx sensor 2 (cylinder bank 1) has an electrical fault. There is an open circuit
• P220F NOx sensor heater control circuit range / performance bank 1 sensor 2
• P229F09 P229F-09 Nox sensor 2 cylinder bank 1 has a malfunction. There is a component fault
• P13F600 The engine cannot be started because the exhaust aftertreatment system has been tampered with
• P13DF09 P13DF-09 The Adblue system has a malfunction. There is a component fault.
• P229F92 NOx sensor 2 (cylinder bank 1) has a malfunction. The function or the instruction is faulty
• U029E-02 Communication with NOx sensor 2 has a malfunction. There is a general signal failure
• P1BC3-00 P1BC300 Additional Fault Freeze Frame Data for Fault analysis (Data set 03). There is a general failure
• P13E4-00 P13E400 The remaining driving distance is limited due to a malfunction in the AdBlue system. There is a general failure
• P229EFB NOx sensor 2 (cylinder bank 1) has an electrical fault
• P2200FA The NOx sensor 1 (cylinder bank 1) has an electrical fault
• P220013 The NOX sensor 1 (cylinder bank 1) has an electrical fault. There is an open circuit
• P220011 The NOx sensor 1 (cylinder bank 1) has an electrical fault. There is a short circuit to ground
• P229E NOx sensor 2 Bank 1 Fault In electric circuit
• U029D00 - Lost communication with NOX sensor A
• U029D00 - Communication with nox sensor has a malfunction
• P22A122 NOx sensor 2 (cylinder bank 1) has a short circuit to positive. The signal amplitude is greater than the maximum amplitude
• P2200-11 P220011 The NOx sensor (cylinder bank 1) has an electrical fault. There is a short to Ground
• P2200-13 P220013 The NOx sensor (cylidner bank 1) has an electrical fault. There is an open circuit
• P2200 NOx sensor Circuit Bank 1 Sensor 1
• P2203-22 P220322 The NOx sensor (cylinder bank 1) has a short circuit to positive. The signal amplitude is greater than the maximum amplitude
• P220322 NOx sensor (bank 1) Signal Amplitude too great
• P2201-FC P2201FC The NOx sensor (cylinder bank 1) has a malfunction
• P22A0-21 P22A021 NOx sensor 2 (cylinder bank 1) has a short circuit to ground. The signal amplitude is less than the minimum amplitude
• P22FA84 The switchover between the maximum and minimum values of NOx sensor 1 (Cylinder bank 1) is too slow. There is a signal below the permissible limit value
• P220F77 NOx sensor 2 heating - Cannot reach nominal position
  P22FD84 Changeover too slow between the maximum and minimum value of the NOx sensor 2 (Bank 1) - Signal too low
• P229F92 Sensor NOx 2 - Wrong function or control
• P229F85 Sensor NOx 2 - Signal too high
• P220162 P2201-62The signal of the component NOx sensor is implausible. The following test procedure are always required to be
  carried out completely
• P2201-25 P220125 The NOx sensor (cylinder bank 1) has a malfunction. The signal waveform or shape does not appear to be correct
• P225A-85 P225A85 The calibration value for NOx sensor 1 (cylinder bank 1) was not recognized. There is a signal fault or the message is faulty
• P229F NOx sensor 2 Bank 1 Implausible Signal
• P229F17 NOx sensor 2 (cylinder bank 1) is faulty. The limit value for electrical voltage has been surpassed
• U029E87 Communication with the NOx sensor 2 is faulty. The message is lost

Mercedes-Benz part numbers:

• A000 905 28 09
• A0009052809

Continental part number:

• A2C16442600-291
• A2C16442600291

More compatible part numbers

• A0009058511 A3C01067600-609
• MA0009058511 MA000905851180
• A000905851180
• A0009050108 A2C13684300-286
• A0009059703 5WK96682E A2C12548200-082G

Mercedes Benz compatibility list:

• GLE C292 Coupe GLE300d GLE350d 4MATIC 3.0L
• GLE W166 SUV GLE350d diesel BlueTEC 2016
• GLC C253 Coupe X253 GLC250d diesel BlueTEC
• C class W205 Saloon Sedan 2014 2015 2016 2017 2018 2019 2020
• 2.1L diesel
• C class C205 Coupe C220d 2.2L CDI Pre-Facelift
• C class C220d C250d BlueTEC 4MATIC AMG Line
• C class A205 Convertible Cabriolet 2015 2016 2017
• C220d C250d diesel BlueTEC AMG Line
• Convertible Cabriolet
• E class W213 E250d BlueTEC CDI V6
• SLC R172 SLC250d Roadster AMG Line 2 Door 9G-Tronic
• 2015 2016 2017 2018
• Sprinter W906 3.4-t 5.6-t
• 2.0L 109 111 114 116 119 CDI 2.2CDI 314cdi 514cdi
• Mercedes-Benz Sprinter Luton Van L3 3.5T Tonnes
• 311 313 314 316 2.1L Cdi LWB Long Wheel Base
• Mercedes-Benz Sprinter Commercial Van Dropside Cage Tail Lift
• Mercedes-Benz Sprinter Dropside Tail Lift / Tipper
• Mercedes-Benz Sprinter Dropside Flatbed Pickup truck
• Mercedes-Benz Sprinter Dropside Double Cab

Please note: This list is not full, NOX sensor may fit other car models as well, please check provided part numbers, pictures and compare to your old parts.
