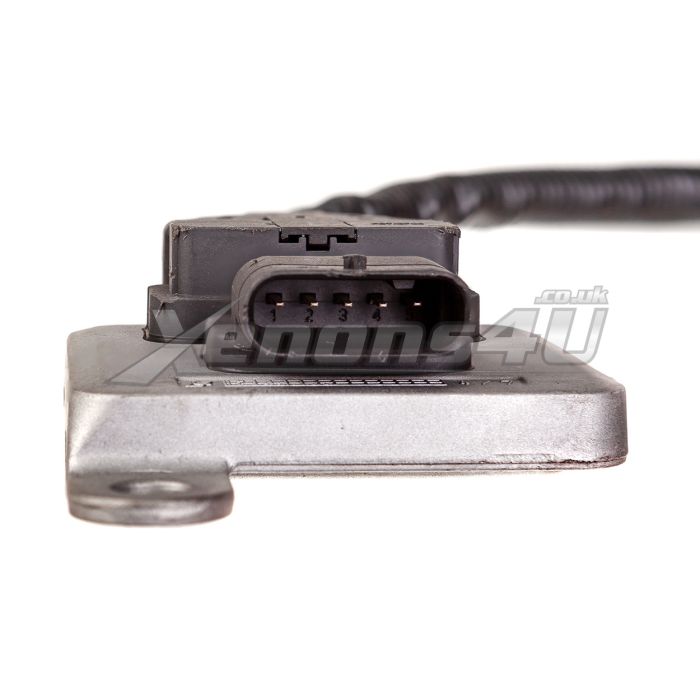

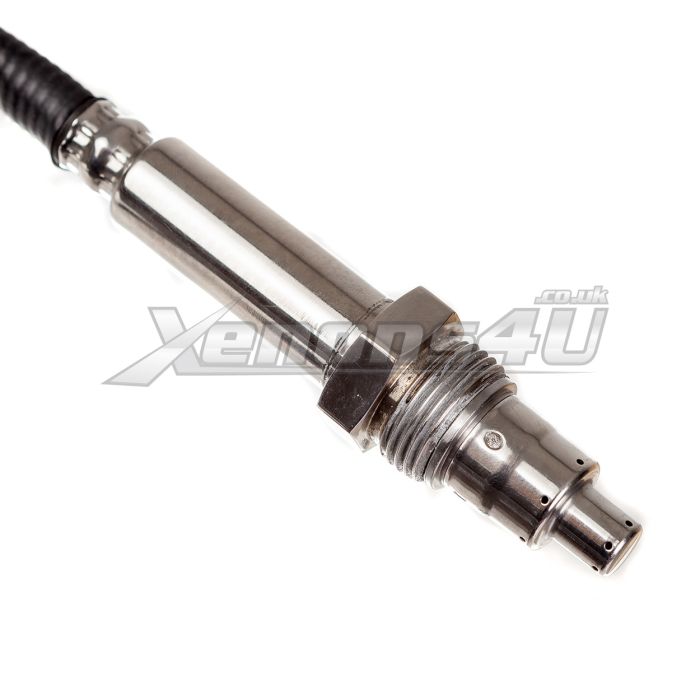

A0009052909 A2C16442800-292 NOX Sensor

A0009052909 A2C16442800-292 NOX sensor

A0009052909 Nitrogen Oxide control unit is direct replacement to faulty genuine mercedes-benz or continental brand part, no coding is required after replacing part.

If you have did on-board computer scan and your car is showing this error code P229F62 bank 1 or P2202 bank 2, it means that's NOX sensor has failed.

NOX stands for Nitrogen Oxide.

NOX sensor is fitted to Mercedes-Benz cars.

Information from original sticker: NS 0004, NS0004, ZGS 001, ZGS001, Q01, Q 01.

Error cleaning may be required, but just once after fitting new NOX sensor, it can be done by yourself, there is no need to visit Mercedes Benz dealer at all.

A2C16442800-292 sensor fits many different Mercedes-Benz cars.

Replacement sensor will save you a fortune and you will comply with enviromental laws again.

The most common warning messages for Mercedes-Benz sprinter

• AdBlue malfunction em. op. in x mi km see owner's man.
• AdBlue system malfunction See Owner's Man.
• AdBlue system malfunction Emergency modie in x mls km
• Cannot measure fluid level AdBlue
• Eng. Start not possible in x mi km

NOX sensor errors to identify faulty part:

• P22A1-22 P22A122 NOx sensor 2 (cylinder bank1) has a short circuit to positive. The signal amplitude is greater than the maximum amplitude.
• P229F-23 P229F23 NOx sensor 2(cylinder bank1) has a malfunction. No signal change: voltage level is too low.
• P220013 - The NOx sensor 1 (cylinder bank1) has an electrical fault. There is an open circuit.
• P220108 The NOx sensor (cylinder bank 1) has a malfunction. There is a signal fault or the message is faulty.
• P221408 The NOx sensor (cylinder bank 2) has a malfunction. There is a signal fault or the message is faulty.
• P221401 Nox sensor cylinder bank 2 malfunction.
• P2201-62 NOx sensor (cylinder bank 1) has a malfunction. The signal comparison is faulty.
• P2202 - NOx Sensor Circuit Low Bank 1
• P229FE1 P229F(E1) Nitrogen oxides (NOx) sensor 2, bank 1 - circuit range/performance
• P220A0(16) Nitrogen oxides (NOx) sensor 2, bank 1 - circuit low
• P229E(11) Nitrogen oxides (NOx) sensor 2, bank 1 - circuit malfunction
• P22A677 - The heater of NOx sensor 2 (cylinder bank 1) has an electrical fault. The commanded position cannot be reached.
• P2BA901 - The emission limit for the NOx concentration has been exceeded (Adblue quality is too low). There is a general electrical fault.
• P13DF09 - The Adblue system has a malfunction. There is a component fault.
• P13E400 - The remaining driving distance is limited due to a malfunction in the AdBlue system.
• P22A0 - Nitrogen Oxides NOx sensor 2 Circuit Low Voltage Bank 2
• P22A021 - NOx sensor 2 (cylinder bank 1) has a short circuit to ground. The signal amplitude is less than the minimum amplitude
• P229F - Nitrogen Oxides (NOx) sensor 2, bank 1 - circuit range/performance
• P13D-F09 The AdBlue system has a malfunction. There is a component fault.
• P229F-62 NOx sensor 2 (cylinder bank 1) has a malfunction. The Signal Comparison is faulty
• P229F-09 NOx sensor 2 (cylinder bank 1) has a malfunction. There is component fault.
• P220400 the nox sensor (cylinder bank 1) has a sporadic malfunction._
• P220000 the nox sensor (cylinder bank1) has an electrical fault._
• P220162 - The NOx sensor (cylinder bank 1) has a malfunction. The signal comparison is faulty.
• P204F96 - The AdBlue system (cylinder bank 1) has a malfunction. There is an internal component fault.
• P140300 - The control unit AdBlue has a malfunction.
• P220E77 - The heater of NOx sensor 1 (cylinder bank 1) has a malfunction. The commanded position cannot be reached.
• P229f09 - Nox sensor 2 cylinder bank 1 has a malfunction there is a component fault
• P229f28 - Nox sensor 2 cylinder bank 1 has malfunction
• P229F62 Signal of NOx sensor implausible
• P229F-92 P229F92 NOx sensor 2 (cylinder bank 1) has a malfunction. The function or the instruction is faulty
• P220F-77 P220F77 NOx sensor heater Control Circuit Range / Performance Bank 1 Sensor 2. The commanded position cannot be reached
• P2201-ED P2201ED The NOx sensor (cylinder bank 1) has a malfunction

Mercedes-Benz part numbers:

• A0009052909
• A000 905 29 09

Continental part number:

• A2C16442800-292

More compatible part numbers

• A0009058611
• MA000905861180 A3C01067900-610
• A0009050208 A2C13684500-287
• A0009059803 5WK96683E A2C12548400-083G

Mercedes Benz compatibility list:

• A class W176 A200 CDI
• B class W246
• B180 B200 B220 CDI
• CLA C117 Coupe CLA200 CDI
• GLA X156 GLA 200d CDI diesel
• GLE W166 SUV GLE300d GLE350d diesel BlueTEC
• 2016
• GLC C253 Coupe 2015 2016 2017 2018 2019 2020
• GLC X253 Hatchback
• GLC220d GLC250d diesel BlueTEC 4MATIC
• S class W222 S300d S350d BlueTEC 2015 2016 2017
• G class W463 2017 2018 2019 2020 2021
• G350d G400d diesel 463.348
• Sprinter W906 Van Bus
• Vito W447 2014, 2015, 2016, 2017, 2018
• 1.6 V200 V220 V250
• 109 111 114116 CDI 119 BlueTec

Please note: This list is not full, NOX sensor may fit other car models as well, please check provided part numbers, pictures and compare to your old parts.
