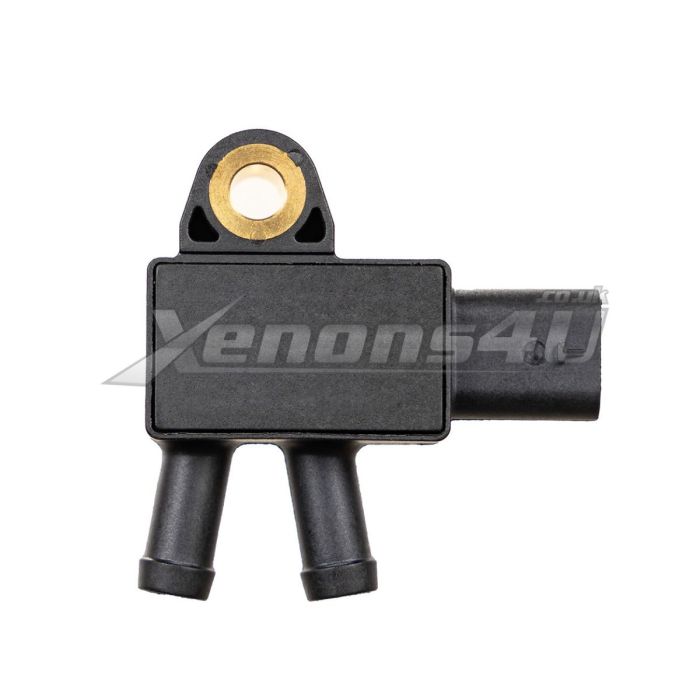

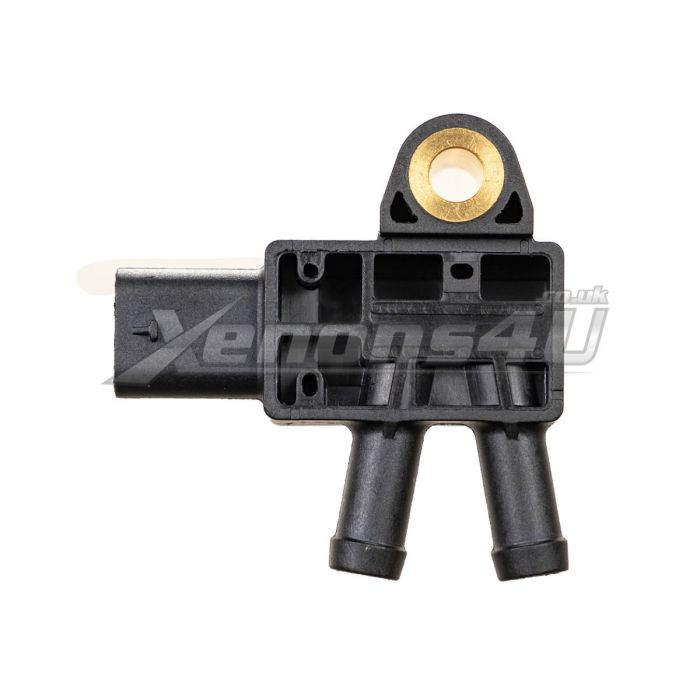

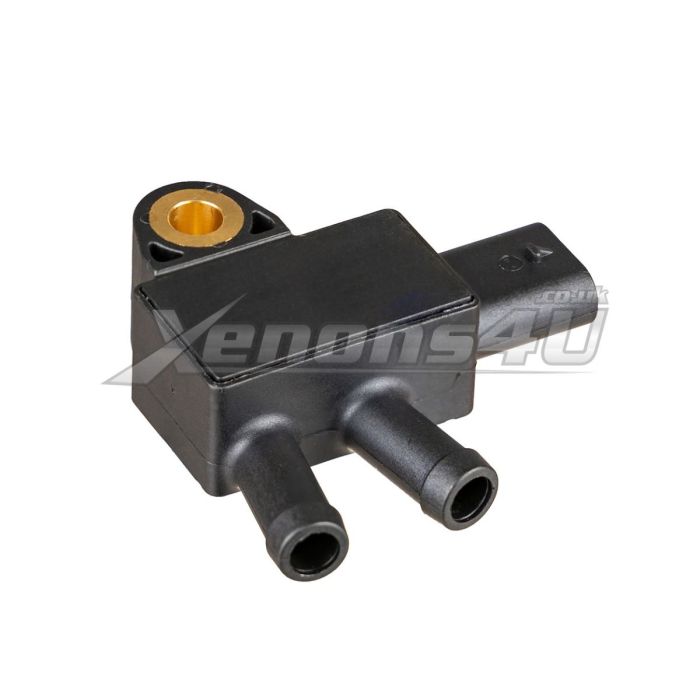

A0009056503 SD0001-5170 DPF Pressure sensor

A0009056503 SD0001-5170 DPF Diesel Particulate Filter Differential Pressure Sensor

Denso SD0001-5170 DPF sensor is factory fitted to many different Mercedes-Benz cars with diesel engine.

DPD sensor is direct replacement to an old faulty Denso SD0001-5170 or mercedes-benz A0009056503 brand sensor.

If are seeing check engine light CEL in short and did diagnostics, which any of these fault codes P0470 P0471 P0473 P0473 then it pin points you to the exhaust pressure sensor and there is nothing to worry about that, just buy new sensor replace it and you are ready to go.

A0009056503 part number could be also replaced with the following part number A6429050400.

Once DPF exhaust different pressure sensor is replaced with new part, delete fault codes and that would be it.

The most common diagnostic trouble codes

• P2452 DPF Diesel Particulate Filter Pressure Sensor A Circuit
• P2453 DPF Diesel Particulate Filter Pressure Sensor A Circuit Range/Performance
• P2454 DPF Diesel Particulate Filter Pressure Sensor A Circuit Low
• P2455 DPF Diesel Particulate Filter Pressure Sensor A Circuit High
• P2456 DPF Diesel Particle Filter, Differential Pressure Sensor, Implausible Signal
• P2462 DPF Diesel Particulate Filter Presure Sensor B Circuit Intermttent
• P2463 DPF Diesel Particulate Filter Restriction Soot Accumulation
• P2464 DPF Diesel Particulate Filter Differential Pressure Too Low Bank 2
• P2465 DPF Diesel Particulate Filter Differential Pressure Too High Bank 2
• P224B-00 P224B00 The pressure differential in the particulate filter (cylinder bank 1) is too high. There is a general failure
• P2453-28 P245328 The input for differential pressure sensor 1 in the particulate filter has a malfunction.
  The signal offset is out side the permissible range
• P2463-09 P246309 The soot content of the particulate filter is not OK. There is a component fault
• P245329 The input for differential pressure sensor 1 in the diesel or gasoline particulate filter has a malfunction. There is an invalid signal

Mercdes-Benz part numbers:

• A000 905 65 03
• A0009056503
• MA0009056503

Denso part numbers:

• SD0001-5170
• SD00015170

More compatible part numbers:

• A6429050400
• SD0001-5070

Compatible cars:

• E class W212 S212 A207 C207 E220 CDI
• E class W213 S213 C238 A238 220D
• C class W205 Saloon Sedan 2014 2015 2016 2017 2018
• C220 BlueTEC
• C220d 2.2L CDI diesel
• C class S205 Estate Wagon
• C class C205 Coupe
• C class A205 Convertible Cabriolet
• GLC C253 Coupe X253 Hatchback
• GLA 2.2 Diesel
• Sprinter Vito W906 Van Bus 210 CDI
• V class W447 Vito Bus Tourer 114 CDI V220d diesel
• 2017

Please note: this list is not full, sensor may fit other car models as well.
