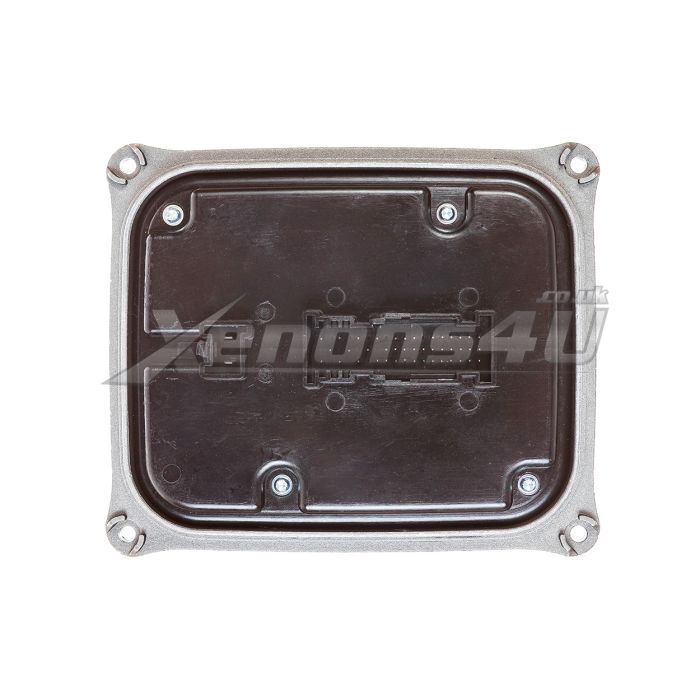

A2229008812 PXL2 Plus LED Module

A2229008812 PXL2 Plus LED Control Unit Module ballast also known as voltage converter

Mercedes A2229008812 control unit is responsible for powering up Low High beam (Main Dipped beam) LED lights of your car's headlights.

If you are having LED daytime running lights or turn signal front indicator malfunctions, low or high beams don't work, you will need to replace LED module.

Information from original sticker: PXL2PLUS PXL2 Plus.

We have collected compatible part numbrs, which could be found below, also other part numbers might have different letters for example PXL2 or PXL213, but all of them are compatible and exchangable with each other.

Coding is required once replaced with new A2229008812 PXL2Plus voltage converter.

The most common diagnostic trouble codes DTCs

• U117B00 Communication with control unit LED matrix of lamp unit has a malfunction
• B178356 Control Unit LED Driving lights actuation module has a malfunction. An incorrect or incompatible configuration was detected
• B178364 Control Unit LED driving lights actuation module has a malfunction. There is an implausible signal
• B1FB713 Temperature sensor 2 of control unit LED driving lights actuation module has a malfunction. There is an open circuit

The most common mercedes-benz warning messages

• Intell. Light System Inoperative

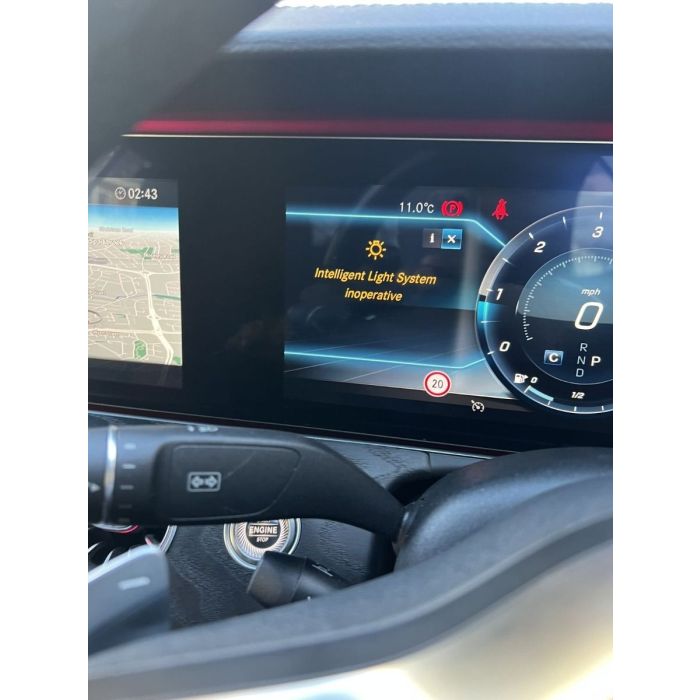

• Intelligent Light System inoperative
• ILS ohne Funktion
• Intell. Light System ur funktion
• Intell. Light system virker ikke
• Intell. Light system ne fonctionne pas
• Intell. Light System ohne Funktion
• Intell. Light system no funciona
• Intell. Light system guasto
• Intell. Light system functioneert niet
• Intell. Light system nieaktywny
• Sis. Luzes inteliente inoperacional
• Intell. Light System ur funktion
• Left main beam
• Right main beam

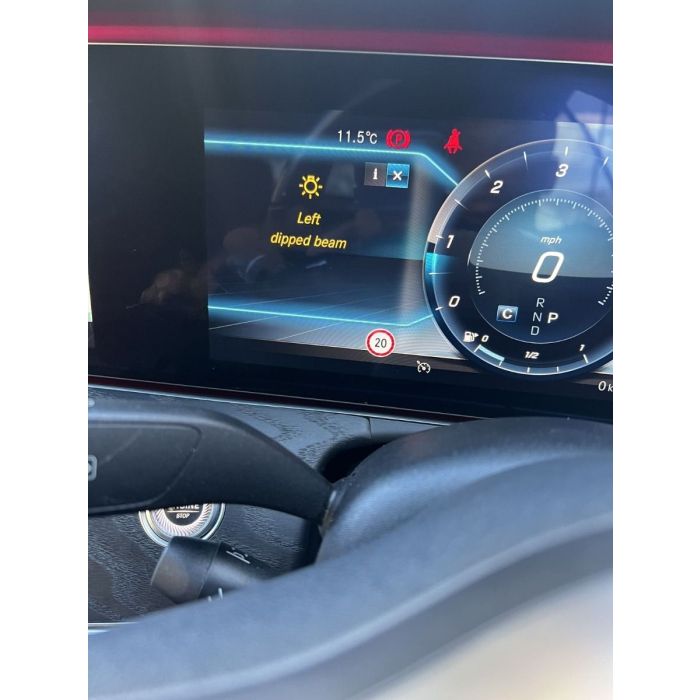

• Left dipped beam

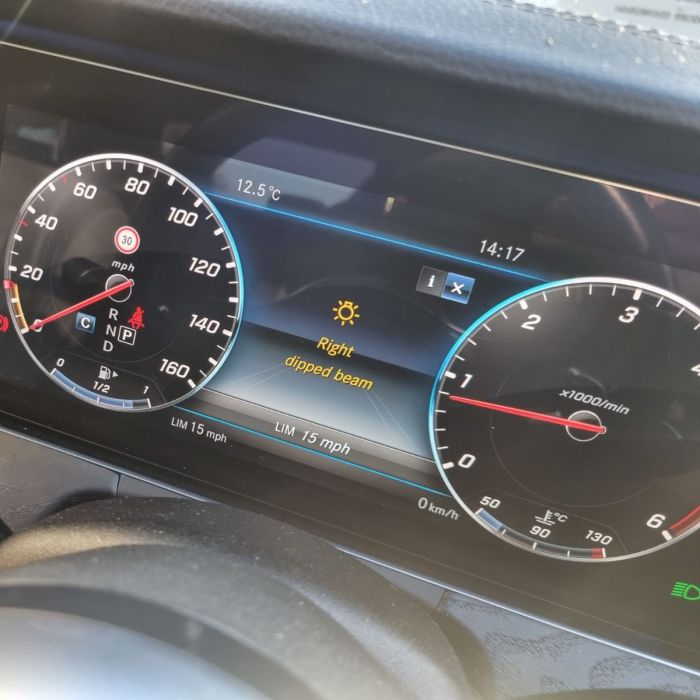

• Right dipped beam
• Check Left Low Beam
• Check Right Low Beam
• Abblendlicht links
• Abblendlicht rechts
• Luz de cruce izquierda
• Luz de cruce derecha
• Feu croisement gauche
• Feu croisement droit
• Halvljus vänster
• Halvljus höger
• Medios direita
• Medios esquerda
• Prawe swiatlo mijania
• Lewe swiatlo mijania
• Anabbagliante destro
• Anabbagliante sinistra
• Dimlicht rechts
• Dimlicht links

Software and hardware part numbers

• HW: A2229010305
• SW: A2229028311

Mercedes-Benz part numbers

• A222 900 88 12
• A2229008812

Lear part number

• 5C6111F01

More compatible part numbers

• MA2059006147 5C6113R03
• HW:A2229010305 SW: A2059020429
• A2139003911 PXL213 50DF11F08
• HW:A2139017900 SW:A2139026106
• A2059009534 5C6111F02
• HW:A2229010305 SW:A2059027018
• A2139006104 50DF12F04
• SW:A2139015303 SW:A2139023302
• A2139006507 A213-900-65-07
• A2059009534 5C6111F02 5C6113F00
• HW: A2229010305 SW: A2059027018

Compatible Mercedes Benz cars

• C class W205 S205 Facelift 2017, 2018, 2019 2020
• C class A205 Facelift Convertible Cabriolet 2017 2018 2019 2020
• C class C205 Facelift Coupe 2017 2018 2019 2020
• C180 C200C250 C300 C350 Hybrid petrol gasoline
• C400 C450 4MATIC C43 C63 C63S AMG
• C220d BlueTEC C250d C300de diesel
• E class W213 Saloon Sedan 2016, 2017, 2018, 2019 2020
• E clas S213 Estate 2016, 2017, 2018, 2019 2020
• E class Coupe C238 2016, 2017, 2018, 2019 2020
• E class Cabriolet Convertible A238 2017, 2018, 2019 2020
• E200 E250 E300 E300e E350 E350e Hybrid E400 E450 E43 E53 E63 E63S AMG
• E200d E220d E300de E350d E400d 4MATIC BlueTEC diesel
• CLS Class Coupe C257 2018, 2019 2020 2021
• CLS350 CLS450 CLS53 CLS63AMG 4MATIC petrol gasoline
• CLS220d CLS300d CLS350d CLS400d diesel
• G Class W463 SUV 2018 2019 2020
• G500 G550 G63 AMG
• GLE V167 W167 SUV 2019 2020 2021 2022
• GLE350 GLE350e GLE450 GLE53 GLE580 GLE63 GLE63S AMG 4MATIC
• Petrol Gasoline Plug in Hybrid
• GLE300d GLE350De GLE350d GLE400d 4MATIC diesel
• GLS X167 GLS450 GLS580
• GLC X253 C253 Facelift 2019 2020 2021
• GLC300 GLC350e GLC43 GLC63 AMG
• S Class W222 Facelift 2017 2018 2019 2020
• S450 S500 S560 S600 4MATIC S63 S65 AMG 4MATIC+ petrol
• S350d S400d 4MATIC diesel
• S560e Hybrid PHEV

Please note: this list is not full, module may fit other cars as well.
