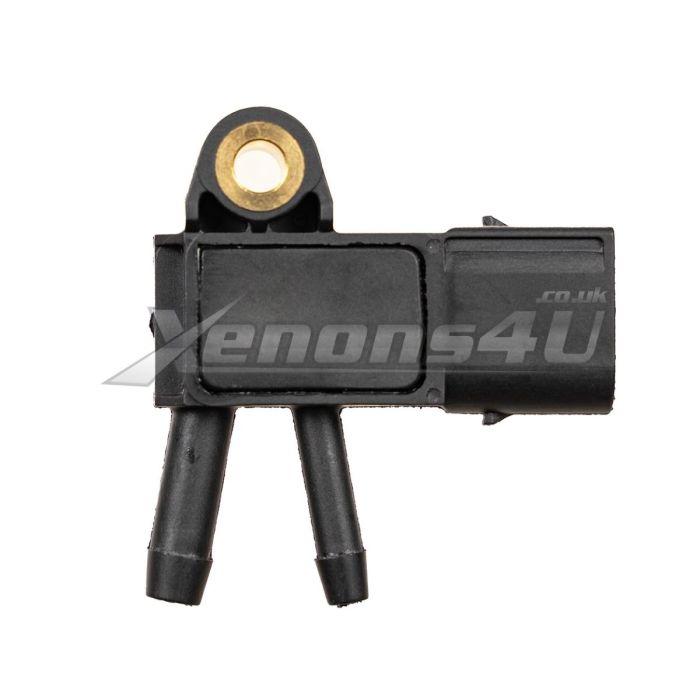

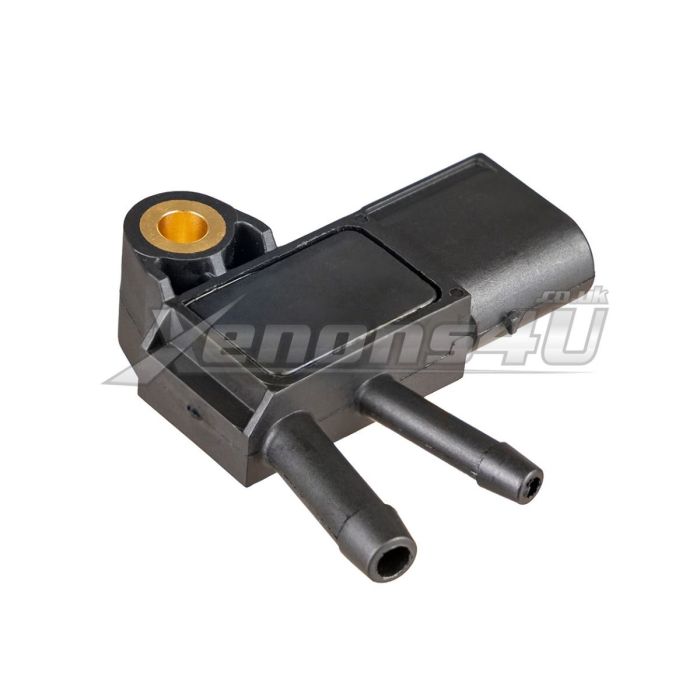

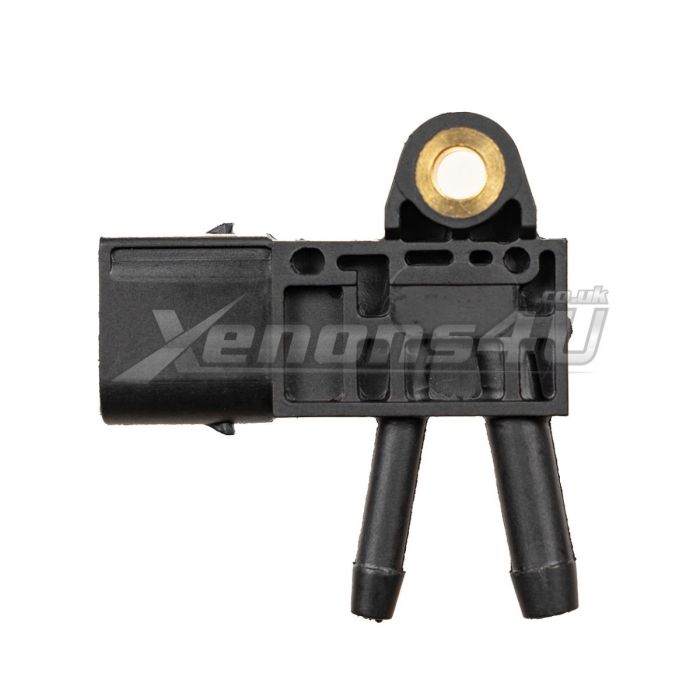

A6429050100 0281006279 DPF pressure sensor

A6429050100 0281006279 DPF pressure sensor

Bosch 0281006279 DPF sensor is factory fitted to many different Mercedes-Benz cars with diesel engine.

DPF means diesel particulate filter.

If are seeing check engine light CEL in short and did diagnostics, which any of these fault codes P0470 P0471 P0473 P0473 then it pin points you to the exhaust pressure sensor and there is nothing to worry about that, just buy new dpf sensor replace it.

Mercedes-Benz A6429050100 part number could be also replaced with other part numbers you can find down below.

Once DPF exhaust different pressure sensor is replaced with new part, delete fault codes and that would be it.

The most common mercedes-benz Sprinter W906 warning messages

• Exhaust filter: Drive at high engine speed
• See Owner's manual

The most common diagnostic trouble codes DTCs

• P0473 Exhaust Pressure Sensor 1, Signal Too High
• P2456 Diesel Particle Filter Differential Pressure Sensor Implausible Signal
• P0470 Exhaust Pressure Sensor A Circuit
• P0471 Exhaust Pressure Sensor A Circuit Range/Performance
• P0471-28 P047128 Exhaust back pressure sensor 1 has a malfunction. The signal offset is outside the permissible range
• P0473 Exhaust Pressure Sensor A Circuit High
• P0474 Exhaust Pressure Sensor A Circuit Intermittent
• P2463 Diesel Particulate Filter Restriction – Soot Accumulation
• P2453 Diesel Particulate Filter Pressure Sensor A - Circuit Range/Performance
• P2453 Diesel Particulate Filter Differential Pressure Sensor Range/Performance
• P244B Diesel Particulate Filter Differential Pressure Sensor Too High
• P2454 Diesel Particulate Filter Differential Pressure Sensor Circuit Low
• P245414 P2454-14 The input for differential pressure sensor 1 in diesel or gasoline particulate filter has a short circuit to groud. There is a short circuit to ground or an open circuit
• P244A7A The input for differential pressure sensor 1 in diesel or gasoline particulate filter (cylinder bank 1) is too low. Leakage or a defective seal was detected
• 11A800 The pressure differential in the diesel particulate filter is too high
• 118D00 A plausibility error exists in the component B28/20 Diesel Particulate filter differential pressure sensor
• 13AF00 The soot content of the diesel particulate filter is too high
• P244A00 The pressure Differential in the diesel particulate filter (cylinder bank 1) is too low
• P244A-00 The pressure differential in the particulate filter (cylinder bank 1) is too low. There is a general failure
• P245328 The input for differential pressure sensor 1 in the diesel or gasoline particulate filter has a malfunction. The signal offset is outside the permissible range
• P245328 The input for differential pressure sensor 1 in the diesel particulate filter has a malfunction. The Signal offset is outside the permissible range
• P245414 The input for differential pressure sensor 1 in the diesel particulate filter has a short circuit to groud. There is a short circuit to ground or an open circuit
• P244B00 The pressure differential in the diesel or gasoline particulate filter (Cylinder bank 1) is too high
• 15FD00 The Lower Limit Value of component B28/8 Differential pressure sensor DPF was dropped below not reached
• P2455 Diesel Particualte Filter Differential Pressure Sensor Circuit High
• P246309 The soot content of the diesel or gasoline particulate filter is not OK. There is a component fault
• P245512 The input for differential pressure sensor 1 in the diesel or gasoline particulate filter has a short
  circuit to positive. There is a short circuit to positive
• P2454 Diesel particulate filter (DPF) pressure sensor A - circuit low
• P244A Diesel particulate filter (DPF) - differential pressure too low
• P244B Diesel particulate filter (DPF) - differential pressure too high
• P2453 Diesel particulate filter (DPF) pressure sesnor A - circuit malfunction
• P246309 The soot content of the diesel particulate filter is not OK. There is a mechanical fault
• P245328 The input for differential pressure sensor 1 in the diesel particulate filter has a malfunction. There is an invalid signal

Mercdes-Benz part numbers:

• A642 905 01 00
• A6429050100

Bosch part numbers:

• 0281006279

More compatible part numbers:

• A0061539528
• A0061534928
• A0071536128

Compatible Mercedes-Benz cars

• GL X164 GL350 2011
• ML W164 ML320 ML350
• SLK R172
• C class W204 S204 C204 Coupe Facelift
• 2010 2011 2012 2013
• C220d C250d 2.2L diesel 651.911
• C350 CDI 3.0L BlueEfficiency
• C class S205 Facelift T-Model Estate Wagon 2011 2012 2013
• C200CDI C200 CDI
• GLK X204
• E class W212 Saloon Sedan 2010 2011 2012 2013 2014
• E class S212 Estate Wagon
• E class C207 Coupe
• E class A207 Convertible Cabriolet
• E220d E250d E350d CDI 3.0L BlueTEC diesel
• CLS W218 Coupe CLS350d 2012 2013 AMG Line
• CLS X218 Shooting Brake Estate Wagon
• S class W222 S320 CDI V6 2006 2007 2008
• S class W221 Facelift S350d
• R class R251 R320 R350
• W639 Vito Viano Facelift 2010 2011 2012 2013 2014 2015
• W639 Vito Tourer Bus 116CDI 2.2CDI diesel
• Sprinter W906 Van
• Smart 451 CDI

Please note: this list is not full, sensor may fit other car models as well.
