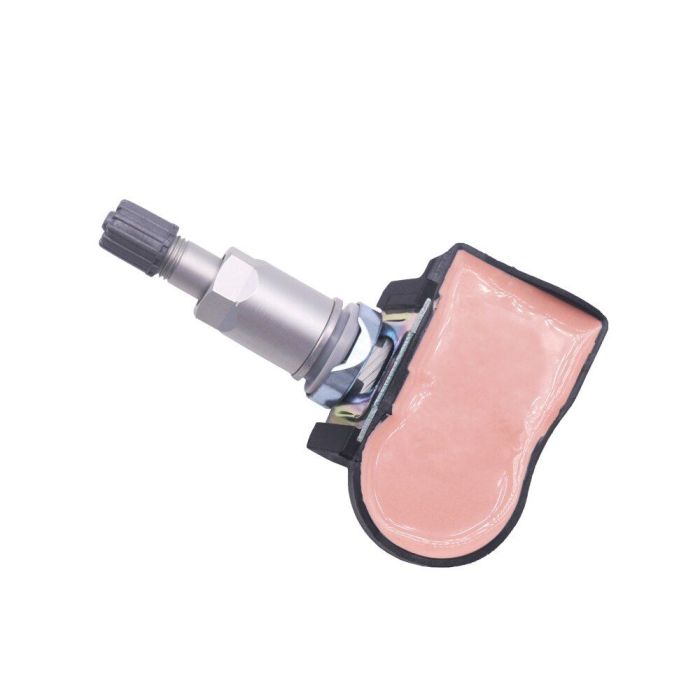

AH521A159AA S122780002D TPMS Tire Pressure Sensor

AH521A159AA S122780002D TPMS Tire Pressure sensor.

AH521A159AA wheel nut sensor is factory fitted and used on many different land rover and jaguar cars.

Wheel pressure sensor comes together with attached nut and it replaces fomoco brand sensor.

Tyre pressure control system is factory fitted to all cars for driver' safety to make sure there is no malfunction or leaking air inside the wheel, which could lead to the accident.

When battery of the sensor has died or sensor was damaged or there are no wheel sensors fitted at all, then tyre pressure monitor system in short TPMS will trigger an error code to be displayed on the dashboard.

The most common TPMS warning messages:

• Tyre Pressure Monitoring System Fault

Tire pressure sensor uses 433 Mhz frequencies.

No coding is required after replacing S122780002D wheel sensor, just install new sensor and after good 30 minutes a sensor will code itself to the car.

You can replace as many sensors as you want, all four the same time or just that ones, which have malfunction.

Tire pressure sensor is compatible with many different part numbers, a list of part numbers are below.

FoMoCo part numbers:

• AH521A159AA

Continental VDO part numbers:

• S122780002D

Jaguar part numbers

• 8G92-1A159-AB
• 8G921A159AB
• FW93-1A159-AB
• FW931A159AB
• GX631A159AA

Land Rover part numbers

• LR031712

Compatibility list:

• Land Rover Freelander LR2
• Land Rover Range Rover SUV L322
• Land Rover Range Rover Evoque
• Land Rover Range Rover Vogue 4.2 Supercharged
• Jaguar XJ351

Please note: tire pressure sensor might fit other car models as well, please check old part number.
