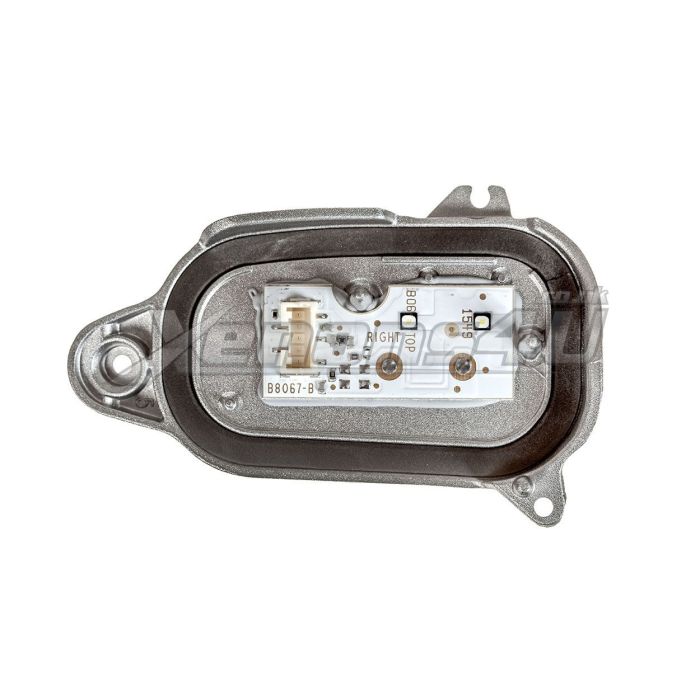

B8067-B 8R0941476B 8R0941476A LED DRL Module

LUMRO B8067-B 8R0941476A 8R0941476B DRL LED module with heat sink

LED DRL light source module fits only right side (driver's side in the UK) or passenger's side in left hand drive cars.

Audi 8R0941476 LED diode module fixes not working Daytime Running Lights.

Audi Q5 8R Facelift uses two parts, which are responsible for DRL LED lamps also known module and Delphi power control unit.

Firstly check if all fuses are in working order, next step is to change Delphi power unit to other side and check if LED lights are working, it is very common that Delphi unit fails as well.

Direct replacement to an old part, just unscrew, unplug and put new unit back.

8R0941476B is suitable only for the right side headlamp.

We have other side module in stock, as well.

The following three oem part numbers are compatible 8R0941476B 8R0941476 8R0941476A.

The most common diagnostic trouble codes

• 02897 - Supply Voltage for LED Module for DRL and Parking Light; Right
• 012 - Electrical Fault in Circuit

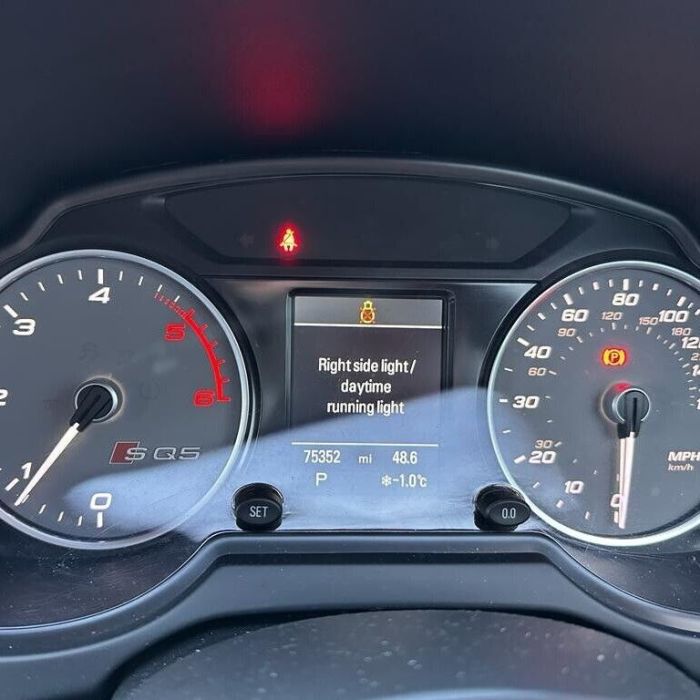

The most common Audi Q5 SQ5 8R warning messages

• Right Side light / Daytime Running Light
• Right Sidelight / Daytime Running Light
• Front right side light
• Luz de posicion / de marcha diurna derecho

Valeo part number:

• TOP B8067-B
• TOP B8067B

Audi part numbers:

• 8R0941476B, 8R0 941 476B
• 8R0941476, 8R0 941 476
• 8R0941476A, 8R0 941 476A

Compatible Audi Q5 SQ5 8R Facelift Headlamps

• Audi 8R0 941 006 D 8R0941006D
• Valeo 90038853

Compatibility list:

• Audi Q5 SQ5 8R Facelift SUV 2013 2014 2015 2016 2017
• 2.0 TFSI Hybrid 2.0 3.0 TFSI quattro petrol
• 2.0 TDI 3.0 TDI quattro SQ5 3.0 TDI diesel
