7316145 7304063 BIXF20 TMS Headlight Driver Module
- What's Included: 1 BIXF20 Module
- Condition: New
- Warranty: 1 Year
- Manufacturer: Xenons4U
- BMW part numbers: 7316145 730406
- LEAR part number: 535215804 535215802
- Placements: Front Headlights Left or Right side

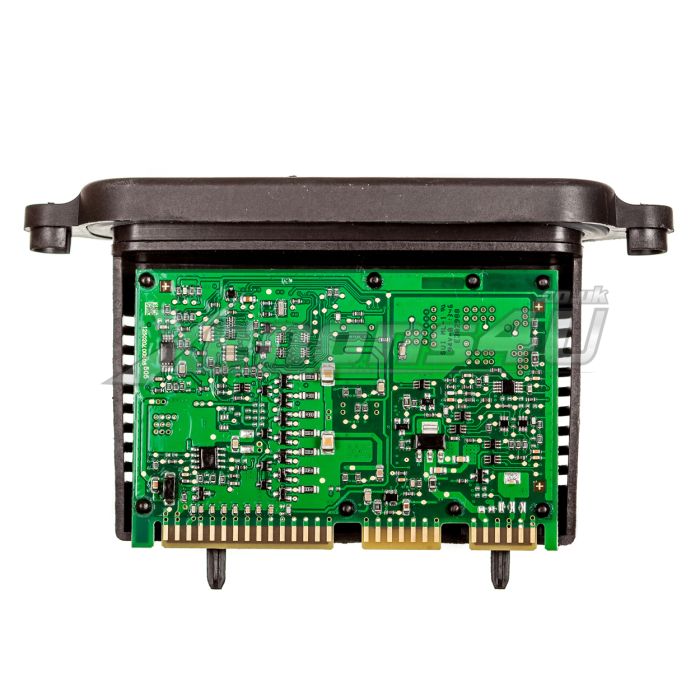

7316145 7304063 BIXF20 TMS Headlight Driver Module
BMW LEAR BIX F20 TMS Driver Module is factory fitted on BMW 1 Series F20 and F20 Pre-Facelift with Xenon Headlights and D1S HID bulbs for main beam.
Xenon headlamps must be without adaptive cornering function, if it has adaptive this control unit won't work.
TMS ballast module is responsible for controlling few functions on headlight, such as Angel Eyes, Daytime Running Lights (DRL), front turn signal indicators.
7316145 ballast doesn't require any coding.
Please double check provided part numbers to make sure it is correct part for your vehicle.
Each headlight uses one piece BIXF20 BIX F20 TMS module.
BMW DTC Diagnostic Trouble Codes
- 800FC3 Initialization fault in left headlamp driver module
- 800FC2 Initialization fault in right headlamp driver module
- 800FC3 Initialisation fault in headlight driver module left
- 800FC2 Initialisation fault in headlight driver module right
- 800FC7 Internal fault in STML (Left hand headlamp driver module)
- 800FC8 Internal fault in STML (Right hand headlamp driver module)
- 800FC7 lin bus, headlight driver module (TMS) right, communication fault
- 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
- 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
- 800F86 Daytime Driving Light / Side Light, left, faulty
- 800F87 Daytime Driving Light / Side Light, right, faulty
- 800F88 Output daytime driving light / side light, left, short-circuited
- 800F89 Output daytime driving light / side light, right, short-circuited
- 800FCB Headlight driver module (TMS), left, faulty
- 800FCE Headlight driver module (TMS), right, faulty
- 800FC0 LWR fault in headlight driver module, right
- 800FC1 LWR fault in headlight driver module, right
- 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
- 800F40 Direction Indicator, Front Left, Faulty
- 800FD0 Design/Side Marker Light, Left, Faulty
- 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
- 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
- 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
The most common BMW warning messages
- Daytime/parking lamp malfunction
- Left turn signal malfunction
- Right turn signal malfunction
- Turn indicator front left failure
- Turn indicator front right failure
- Adaptive headlights failure
- Headlight Vertical Aim Control Failure
- Side/daytime lights fault
- Parking/daytime lights
- Lighting system front left failure
- Lighting system front right failure
- Adaptive Lichtsysteme defekt
- Fernlicht links defekt
- Fernlicht rechts defekt
- Abblendlicht links defekt
- Abblendlicht rechts defekt
- Leuchtweitenregulierung defekt
BMW part numbers:
- 63117316145 7316145 02 731614502
- 63117304063 7304063 02 730406302
- 63117305238 7305238
LEAR part numbers:
- 535215804 05
- 53521580405
- 535215802 00
- 53521580200
Compatible BMW 1 series F20 F21 Xenon headlamps
- BMW 7229687-11 Hella 1LL010741-23/AL
Compatible BMW cars:
- 1 Series: F20 5-door hatchback 2010, 2011, 2012, 2013, 2014, 2015
- 1 Series: F21 3-door hatchback 2010, 2011, 2012, 2013, 2014, 2015
- 114i 116i 118i 125i M135i M140i petrol gasoline
- 118i M-Sport Shadow Edition
- 114d 116d EfficientDynamics Edition 118d 120d xDrive 125d diesel
