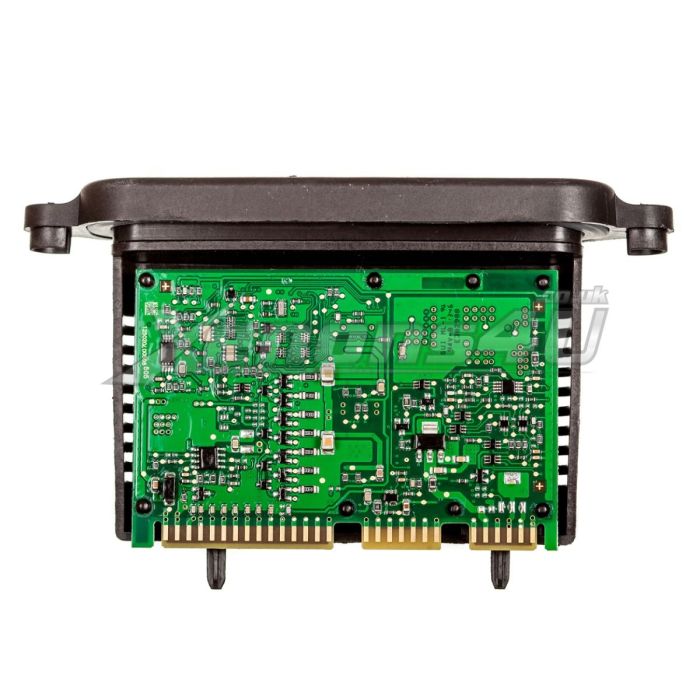

BMW F30 F31 F34 GT Headlight TMS Driver Module for LEAR 7316147 7316143 7316186 7316142 part numbers.
TMS Module is used on BMW F30, F31 and F34 Gran Turismo and F35 with Xenon AHL Headlights.
AHL Headlight Module is responsible for controling DRL LED Angel Eyes (Halo Rings) and vertical light movement up or down.
If you are experiencing various malfunctioning errors on your 3 series such as red headlight icon, headlight warning light malfunction failure fault, vertical aim also known as adaptive headlight failure error, eye brow not working or flickering, LED Angel Eyes (Daytime Driving Lights) not working both rings at the same time or flickering, it means LEAR TMS headlight driver module has failed and it needs to be replaced.
BMW car dealer always suggest to replace whole headlamp, which will cost you a fortune to do that, but to fix this issue you can just replace tms driver module and it will work flawessly, there is no need to spend a lot of money and buy new headlamp housing when you don't need it.
Please double check provided part numbers to make sure it is correct part for your vehicle, if you are unsure, please contact our customer support for help.
Each headlamp uses one TMS module per side.
Direct replacement and no modifications are required.
- 63117316147, 7316147
- 63117316143, 7316143
- 63117316186, 7316186, 7316186 01
- 63117316142, 7316142, 7316142 02
Lear part number:
- 535216805, 535216805 00
- 535216803, 535216803 00
- BMW 3 Series F30 2011, 2012, 2013, 2014, 2015 Pre-Facelift
- BMW 3 Series F31 2011, 2012, 2013, 2014, 2015 Pre-Facelift
- BMW 3 Series F34 Gran Turismo (GT) 2012, 2013, 2014, 2015 Pre-Facelift
- BMW 3 Series F35 2011, 2012, 2013, 2014, 2015 Pre-Facelift
