7316187 535217881 BIXF10 TMS Headlight Driver Module

£119.95
In stock

Fast Delivery

Secure Checkout

  • What's Included: 1 BIX F10 TMS Module
  • Condition: New
  • Warranty: 1 Year
  • Manufacturer: Xenons4U
  • BMW part numbers: 63117316187 7316187 BIXF10
  • LEAR part numbers: 535217881 5352178A1
  • Placements: Front Headlights Left or Right side

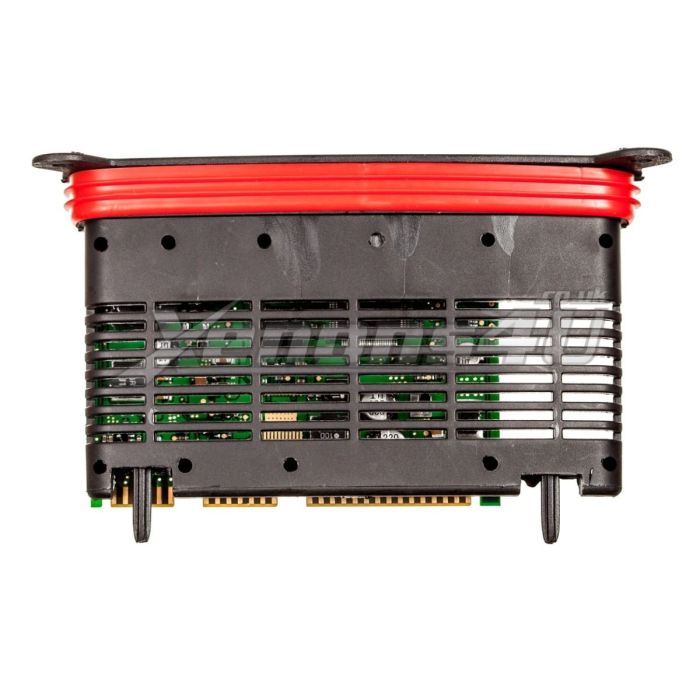

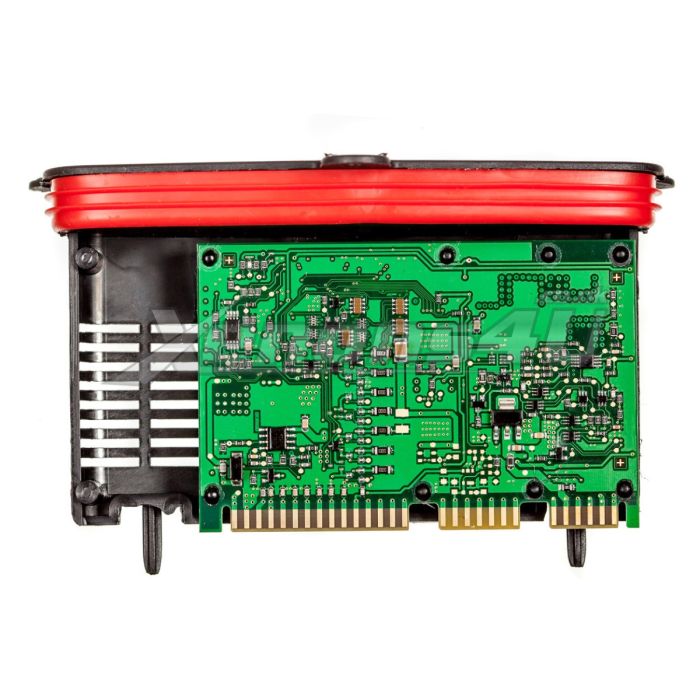

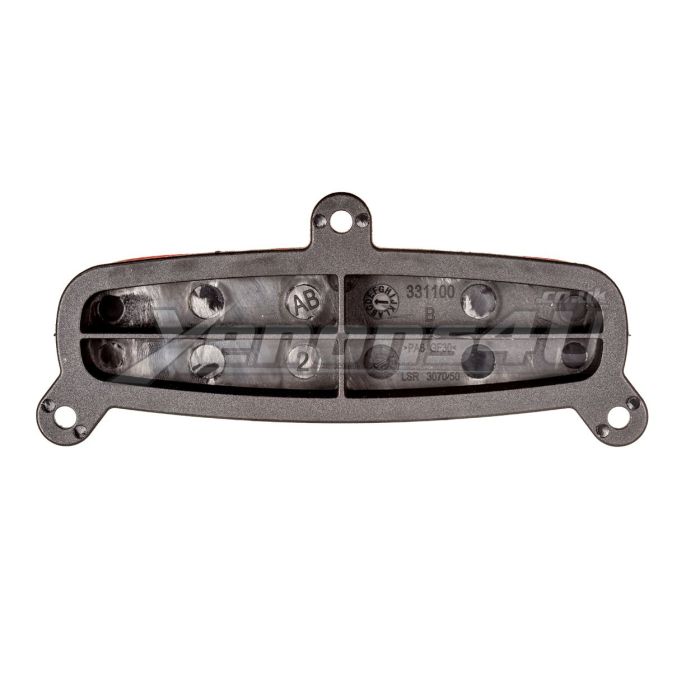

7316187 535217881 BIXF10 TMS Headlight Driver Module

BMW BIXF10 7316187 headlight driver module is factory fitted on BMW with Xenon Headlamps and D1S 35W Gas Discharge HID bulbs without adaptive feature.

63117316187 driver module also known as Insert Computer and is direct replacement to lear brand part.

7316187 BIX F10module is responsible for controlling Xenon Lights, Halo Rings (Angel Eyes) and front indicators (turn signals, blinker).

Sometimes BMW cars experience sidelight (Angel Eyes) malfunction when only one halo ring stops to work, in this case it will be LED module (diode) to blame, not TMS ballast, but if both angel eyes have stopped to work the same time then it will be difinitely 7316187 ballast to blame for.

If you are experiencing any of these applications have malfunctions, when you will need to replace part.

There is no need to buy brand new headlight housing as BMW dealer suggests.

TMS Driver Module fits BMW with Xenon Light headlamps without adaptive lighting option also known as curve lighting function.

Please double check provided part numbers to make sure it is correct part for your car.

Each headlight uses one unit of 7316187 BIX F10 BIXF10 TMS module.

BMW part number BIXF10 7316187 is compatible with 7355073 as well.

BMW DTC Diagnostic Trouble Codes

  • 800FC3 Initialization fault in left headlamp driver module
  • 800FC2 Initialization fault in right headlamp driver module
  • 800FC3 Initialisation fault in headlight driver module left
  • 800FC2 Initialisation fault in headlight driver module right
  • 800FC7 Internal fault in STML (Left hand headlamp driver module)
  • 800FC8 Internal fault in STML (Right hand headlamp driver module)
  • 800FC7 lin bus, headlight driver module (TMS) right, communication fault
  • 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
  • 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
  • 800F86 Daytime Driving Light / Side Light, left, faulty
  • 800F87 Daytime Driving Light / Side Light, right, faulty
  • 800F88 Output daytime driving light / side light, left, short-circuited
  • 800F89 Output daytime driving light / side light, right, short-circuited
  • 800FCB Headlight driver module (TMS), left, faulty
  • 800FCE Headlight driver module (TMS), right, faulty

The most common BMW warning messages

  • Daytime/parking lamp malfunction
  • Left turn signal malfunction
  • Right turn signal malfunction
  • Turn indicator front left failure
  • Turn indicator front right failure
  • Adaptive headlights failure
  • Headlight Vertical Aim Control Failure
  • Side/daytime lights fault
  • Ljusviddsreglering defekt
  • Ljusviddsreglering for stralkastare defekt

BMW part numbers:

  • 63117316187
  • BIXF10 7316187 03
  • 731618703

LEAR part numbers:

  • 535217881
  • 53521788109
  • 53521788106
  • 5352178A1 09
  • 5352178A109
  • 53521788102
  • 53521788105

More compatible bmw part numbers:

  • 7355073
  • 735507301

BMW compatibility list:

  • 3 Series F80 M3 2012, 2013, 2014, 2015
  • 3 Series F80 M3 LCI 2015, 2016, 2017
  • 4 Series F32 2013, 2014, 2015, 2016
  • 4 Series F82 M4 2013, 2014, 2015, 2016
  • 4 Series F33 2013, 2014, 2015, 2016
  • 4 Series F83 M4 2013, 2014, 2015, 2016
  • 4 Series F36 2013, 2014, 2015, 2016
  • X Series X5 F15 2013, 2014, 2015, 2016
  • X Series X5 M F85 2013, 2014, 2015, 2016
  • X Series X6 F16 2013, 2014, 2015, 2016
  • X Series X6 M F86 2013, 2014, 2015, 2016
  • 5 Series F10 Facelift LCI Saloon Sedan 2013, 2014, 2015, 2016
  • 5 Series F11 Facelift LCI Estate Touring Wagon 2013, 2014, 2015, 2016
  • 5 Series 520i 528i 530i 535i 550i M5 petrol
  • 518d, 520d, 525d, 530d, 535d diesel M-Sport
