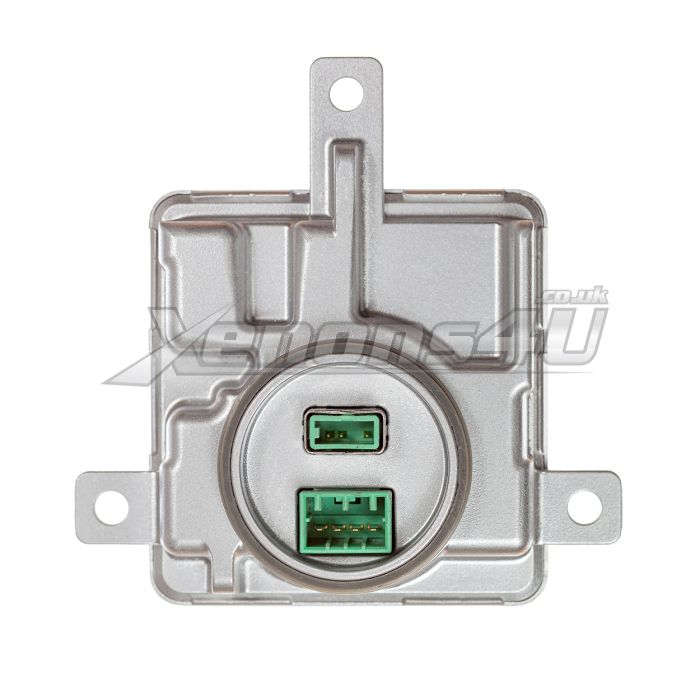

Mitsubishi Electric W003T22171 8K0941597F Xenon Ballast

Genuine Mitsubishi Electric W003T22171 8K0941597F xenon hid ballast control unit

Mitsubishi Electric W003T22171 Xenon Light ballast is responsible for controlling DLS D8S D6S 25W HID gas discharge headlight lights.

If your lights are blinking, shutting down without any reason or not turning on at all, it means that headlamp ballast has failed.

Mitsubishi Electric 8K0.941.597.F Xenon ballast is factory fitted on many different german made cars such as Audi, VW, Seat, Porsche and so on.

Information from original sticker: MH7 H03/S0003 12Z05 DLS D8S D6S 2000h 25W MAX 1300V DC 42V AC made in japan.

8K0941597F ballast fits left or right side on the car, could be fitted to any vehicle, where the same part number was found.

DLS D8S D6S HID bulbs are new generation bulbs, which uses only 25W power and provides the same lumenous flux as 35W bulbs.

No coding is required after replacing old ballast.

The most common vw volkswagen warning messages

• Check left dipped/main headlight beams!
• Check right dipped/main headlight beams!
• Check front-left dipped beam!
• Check front-right dipped beam!

The most common Porsche warning messages

• Check front left dipped headlight
• Check front right dipped headlight

Mitsubishi Electric part number

• W003T22171

VAG part numbers

• 8K0941597F
• 8K0.941.597.F

More compatible part numbers

• 8K0.941.597D
• 8K0941597D
• W003T21771

Compatible VW Volkswagen Amarok 2H headlamps

• 2H1941015AG
• 2H1941016AG

Compatible VW Volkswagen Touareg 7P facelift headlamps

• 7P1941031 1EL011937-01
• 7P1941032 1EL011937-02

Compatible VW Volkswagen Beetle 5C A5 headlamps

• 5C2941032A 1LL010793-24
• 5C1941031E 1EL010793-41

Compatible Porsche Cayenne 92A 958 Facelift Xenon headlamps

• 7P5.941.031.CR 7P5941031CR
• Hella 1LL011745-43
• 7P5.941.032.CR 7P5941032CR
• Hella 1EL011745-44

Compatible cars:

• Audi A1 S1 2011, 2012, 2013, 2014, 2014
• VW Touareg 7P Facelift SUV 2015 2016 2017 without adaptive headlight function
• R-Line
• 3.0 3.6 4.2 V6 FSI TSI BlueMotion Petrol Gasoline
• VW Amarok 2H Facelift Pickup Truck 2013 2014 2015 2016 2017 2018 2019 2020
• 2.0 TSI Petrol Gasoline
• 2.0 TDI CR DPF BiTDI diesel 4Motion
• 3.0 TDI CR BlueMotion SCR DPF V6
• VW Caddy 2K 2nd Facelift 2015 2016 2017 2018 2019 2020
• Highline Estate Box Maxi Life Panel Van
• 2.0L TDI Diesel
• 4MOTION BlueMOTION Startline
• VW Beetle 5C A5 Coupe Convertible Cabriolet Turbo
• 2012 2013 2014 2015 2016 2017
• Porsche Macan 95B
• Macan S Diesel 3.0L V6
• Macan S GTS Turbo
• Porsche Cayman GT4 2014 2015 2016
• Porsche Cayenne 92A 2015 2016 2017 2018
• S GTS E-Hybrid Diesel Turbo S petrol gasoline
• with headlight part number 7P5941032CS 7P5941031CS only
