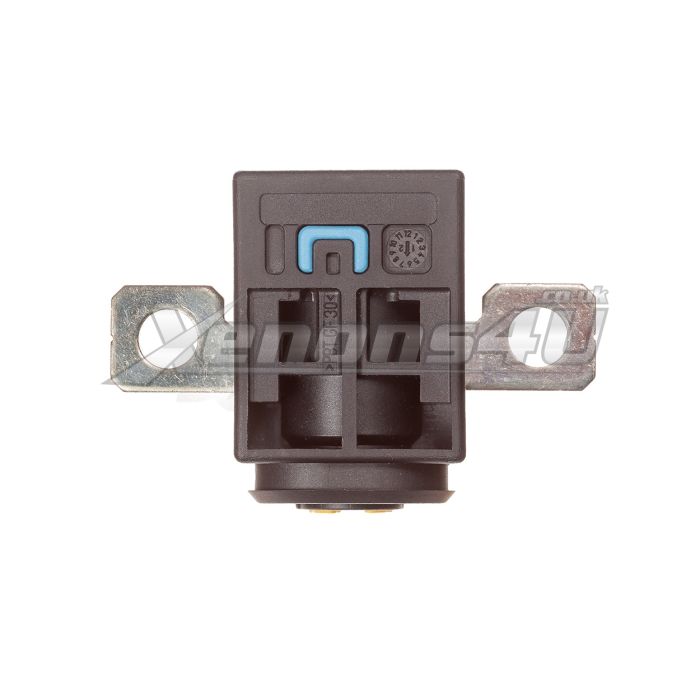

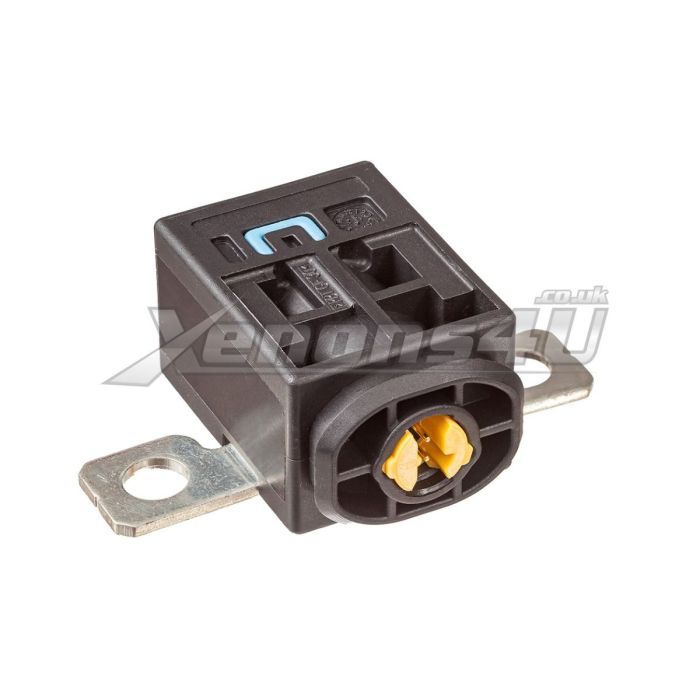

N000000004516 battery overload protection pyrofuse

N000000004516 32V/200PTE150-MBN10309 battery pyrotechnic overload protection pyrofuse

N000000004516 Pyrotechnic Battery Disconnect pyrofuse fits many different mercedes-benz cars.

In addition pyrofuse could fit other brand cars as well.

If car has been in accident or battery overload fuse doesn't work when you will need to replace with pyroswitch.

Pyrofuse's main purpose is that when car gets into accident and airbag deploys it shut downs high voltage battery to avoid fire and furhter damage to the electronics.

N000000004516 pyrotechnical battery overload bracket pyroswitch is compatible with few other part numbers, which could be found below.

Mercedes-Benz DTC diagnostic trouble codes

• B273513 The squib for the on-board electrical network wire Pyrofuse is faulty. An open circuit exists
• B27352B The squib for the on-board electrical network wire Pyrofuse is faulty. The electrical wires have a short circuit to one another
• B00792B The squib for the emergency tensioning retractor (ETR/GUS) for belt end fitting (driver) is faulty. The electrical wires have a short circuit to one another
• B1C3200 Control Unit Supplemental Restraint system (SRS) has detected a crash

Mercedes Benz part numbers:

• N000000004516

Other part number:

• 32V/200PTE150-MBN 10309
• 32V/200PTE150-MBN10309

AutolivNCS-France part numbers:

• ActuatorPSS-1
• 0080-P1-10.0017
• 0080-P1-100017

Compatible mercedes-benz cars:

• Mercedes-Benz GLK X204 220CDI BlueEFFICIENCY
• Mercedes-Benz C class W204 S204 C204
• Mercedes-Benz GL X164 SUV
• Mercedes-Benz E class W212 Saloon Sedan
• Mercedes-Benz E class S212 Estate T-Model
• Mercedes-Benz E class C207 Coupe
• Mercedes-Benz E class W207 A207 Convertible Cabriolet
• E200 E250 E300 E350 E500 E53 E63 AMG
• BlueEfficiency CGI 4MATIC
• Petrol Gasoline
• E200 E220 E250 E300 E350 CDI BlueTEC BlueEFFICIENCY 4MATIC
• AMG Line Diesel
