N000000006984 battery overload protection pyrofuse

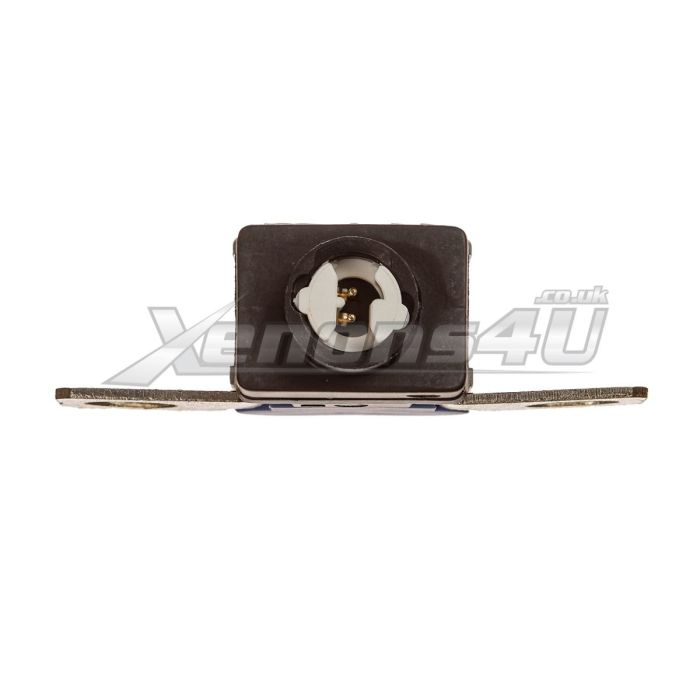

N000000006984 battery pyrotechnic overload protection pyrofuse

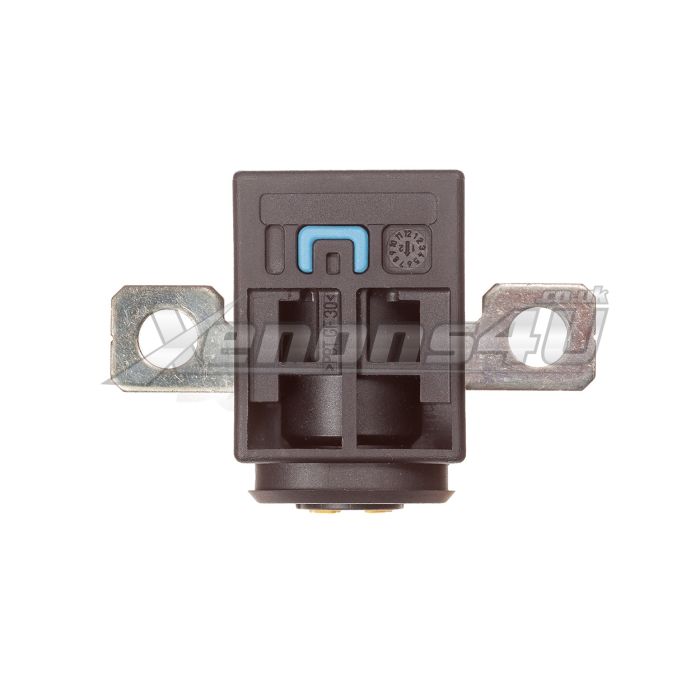

MBN10309-PF4-PTE200/400V Pyrotechnic Battery Disconnect pyrofuse fits many different mercedes-benz cars.

In addition pyrofuse could fit other brand cars as well.

If car has been in accident or battery overload fuse doesn't work when you will need to replace with pyroswitch.

Pyrofuse's purpose is to shut down high voltage after car gets into accident and airbag is deployed to avoid more damages.

N000000006984 pyrotechnical Trennelement PTE battery overload bracket pyroswitch is compatible with few other part numbers, which could be found below.

Pyrofuse is usually fitted inside car's fuse box module.

Mercedes W447 Vito and Viano ActuatorPSS-1 0080-P1-100017 Crash pyrofuse is located inside A4475404326 fuse box, there is no need to buy brand new fuse box to start engine.

Mercedes-Benz DTC diagnostic trouble codes

• B273513 The squib for the on-board electrical network wire Pyrofuse is faulty. An open circuit exists
• B27352B The squib for the on-board electrical network wire Pyrofuse is faulty. The electrical wires have a short circuit to one another
• B27352B The squib for pyrofuse On-Board electrical network Line has a malfunction. The electrical lines have a short circuit to each other
• B00792B The squib for the emergency tensioning retractor (ETR/GUS) for belt end fitting (driver) is faulty. The electrical wires have a short circuit to one another
• B1C3200 Control Unit Supplemental Restraint system (SRS) has detected a crash
• B27352B L"allumeur pour le pyrofusible cable du reseau de bord presente un defaut de fonctionnement. Les cables
  electriques presentent un court-circuit entre eux.
• B2735-13 B273513 The squib for pyro fuse on-board electrical network line has a malfunction. There is an open circuit
• B2806-13 B280613 The Squib for refrigerant accident safeguard 1 has a malfunction. There is an open circuit

Mercedes Benz pyrofuse part numbers

• N000000006984
• A000000006984

Mercedes Benz fuse box part numbers, which use pyorfuse

• A4475404326
• A0005408250
• MA0005408250
• A0005407712

Other part number:

• MBN10309-PF4-PTE200/400V
• MBN 10309-PF4-PTE200/400V

AutolivNCS-France part numbers:

• ActuatorPSS-1
• 0080-P1-10.0017
• 0080-P1-100017

Compatible mercedes-benz cars

• V Class W447 Vito Viano Van Bus 2014 20215 2016 2017 2018 2019 2020
• 2.2CDI BlueTEC V200 V220 CDI V250 CDI 4MATIC
• Viano 2.0CDI 4MATIC BlueEfficiency 2.2CDI 3.0CDI
• Vito 110CDI 111CDI 113CDI 116CDI 120CDI 122CDI
• GLE W167 Coupe GLE53 AMG GLE63 S AMG
• 2019 2020 2021 2022
• GLS X167 2019 2020 2021 2022
• GLS450 4MATIC EQ Boost
• GLS580 4MATIC Mild Hybrid EQ Boost
• C class W205 Saloon Sedan 2015 2016 2017 2018
• C class S205 Estate T-Model
• C300e C350e Plug-In hybrid
• C class W205 Saloon Sedan Facelift 2018 2019 2020
• C class C205 Coupe Facelift 2018 2019 2020
• C200 EQ Boost Mild Hybrid
• GLC C253 Coupe
• GLC X253 Hatchback
• GLC350e
• E class W213 E53 E63 AMG 2019 2020 2021
• E class W213 S213 2016 2017 2018 2019 2020 2021
• E350e Plug-In Hybrid E300De PHEV
• CLS C257 2018 2019 2020
• CLS350 CLS450 CLS53 AMG 4MATIC
• CLS220d CLS300d CLS350d CLS400d 4MATIC
• EQC N293
• EQC350 EQC400 4MATIC EV
• 2019 2020 2021 2022
• Tesla Model X
• Tesla Model S
