W003T22073 W003T22071 W003T22072 8K0941597E Xenon Ballast

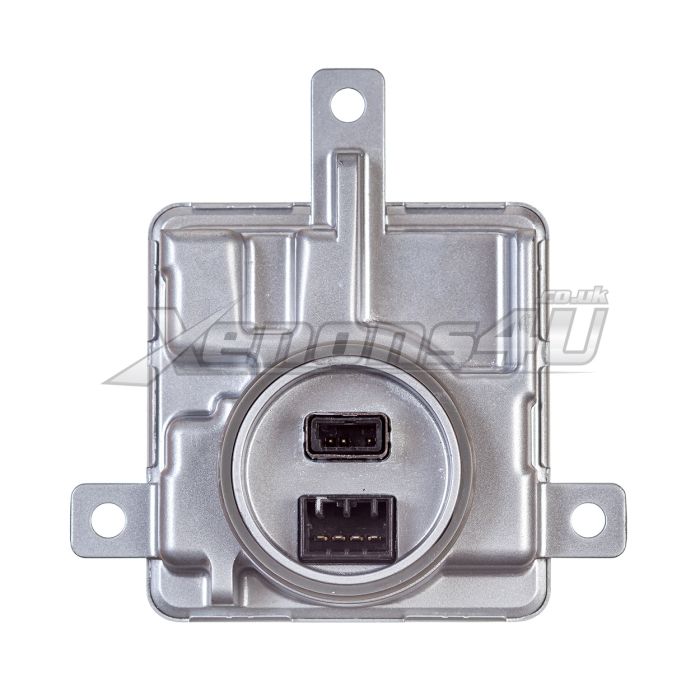

Xenons4U W003T22073 W003T22071 W003T22072 8K0941597E Xenon Ballast Control Unit

Mitsubishi Electric 8K0941597E is factory fitted on many different VAG group cars such as Audi VW Skoda Seat Porsche.

8K0.941.597.E xenon headlamp ballast uses D3S 35W gas discharge HID bulbs for xenon or bi-xenon headlamps.

8K0941597E xenon control unit is direct replacement to faulty genuine mitsubishi electric brand part and replaces both part numbers W003T22071 and W003T22073.

If your lights are flickering, shutting down without any reason or not turning on at all, it means that headlamp ballast has failed.

Information from original sticker: D3S, D3R, D4S, D4R 2000H/35W MAX 1300V DC 42V AC MH7.

Ballast fits left or right side on the car, could be fitted to any vehicle, where the same part number was found.

No coding is required after replacing headlight ballast and in addition it fits and replaces other older mitsubishi electric or keboda brand xenon ballasts as well.

The most common diagnostic trouble fault codes DTCs

• 00979 Bulb Right Dipped Light M31 Open Circuit/Short with Power
• 00979 Lamp for Low Beam; Right (M31): Open or Short to Plus
• 00978 Bulb Left Dipped Light M29 Open Circuit/Short with Power
• 00978 Lamp for Low Beam; Left (M29): Open or Short to Plus

The most common VW Volkswagen Skoda warning messages

• Check left dipped/main headlight beams!
• Check right dipped/main headlight beams!

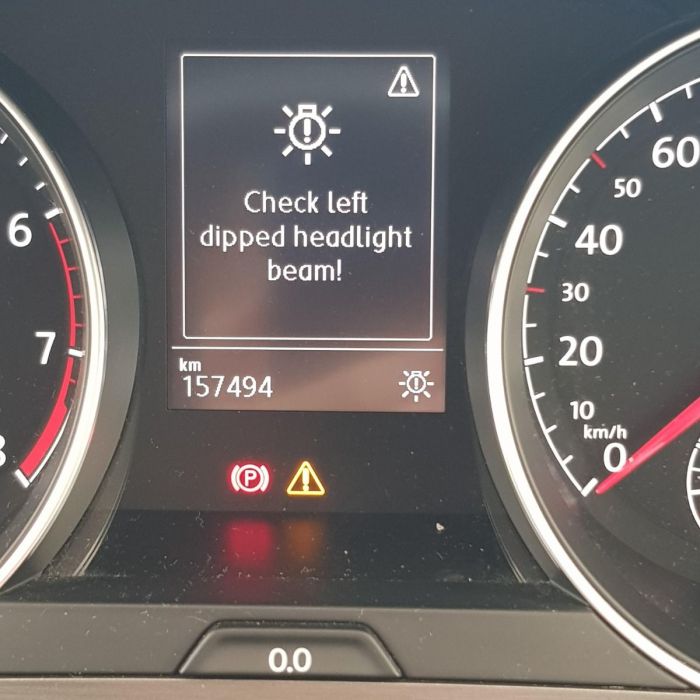

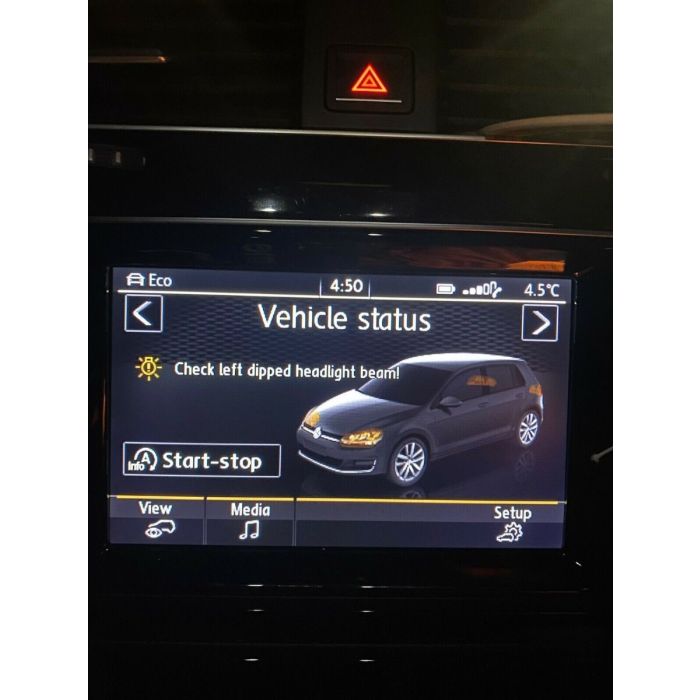

• Check left dipped headlight beam!

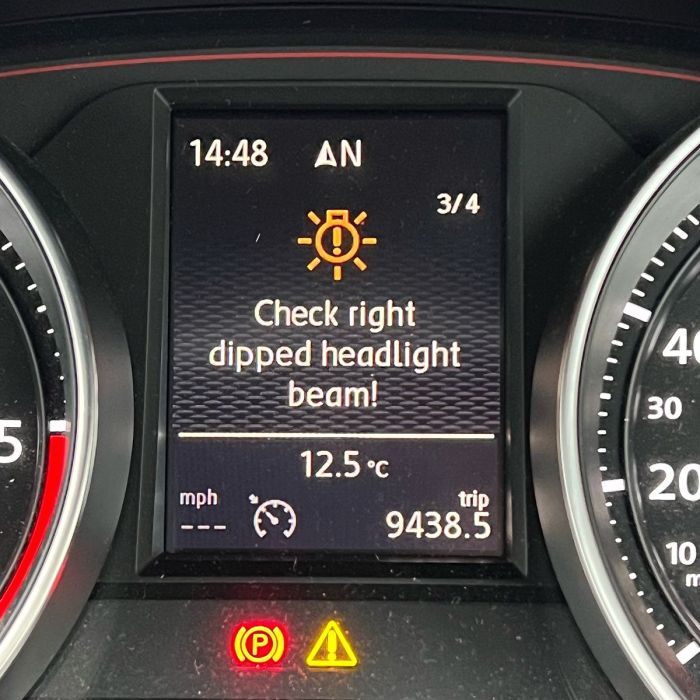

• Check right dipped headlight beam!
• Check front-left dipped beam headlight!
• Check front-right dipped beam headlight!
• Check front left low beam!
• Check front right low beam!
• Check front-left dipped beam!
• Check front-right dipped beam!
• Check left low beam headlight!
• Check right low beam headlight!
• Compruebe la luz de cruce delantera izquierda
• Compruebe la luz de cruce delantera derecha
• Tarkasta oikea lahivalo!
• Tarkasta vasen lahivalo!
• Controllare l'anabbagliante anteriore sinistro!
• Controllare l'anabbagliante anteriore destro!
• Controlez feu croisem. avant gauche!
• Controlez feu croisement avant gauche!
• Controlez feu croisem. avant droit!
• Controlez feu croisement avant droit!
• Controlez le feu de croisement gauche!
• Controlez le feu de croisement droit!

The most common audi warning messages

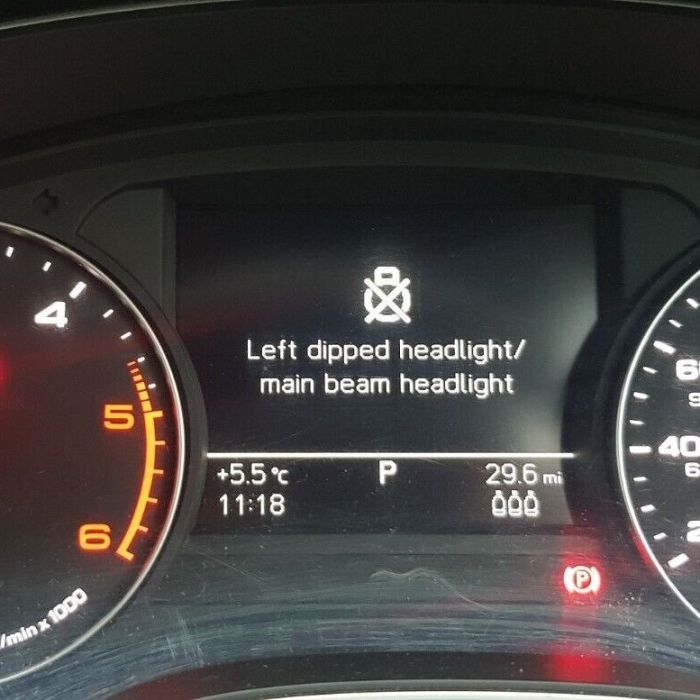

• Left dipped headlight / main beam headlight
• Right dipped headlight / main beam headlight
• Left low beam headlight/high beam headlight
• Right low beam headlight/high beam headlight

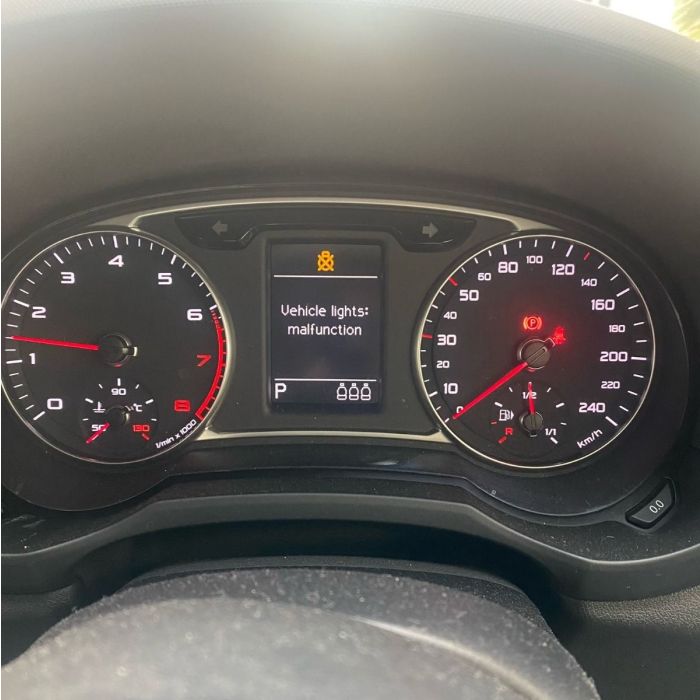

• Vehicle lights: Malfunction

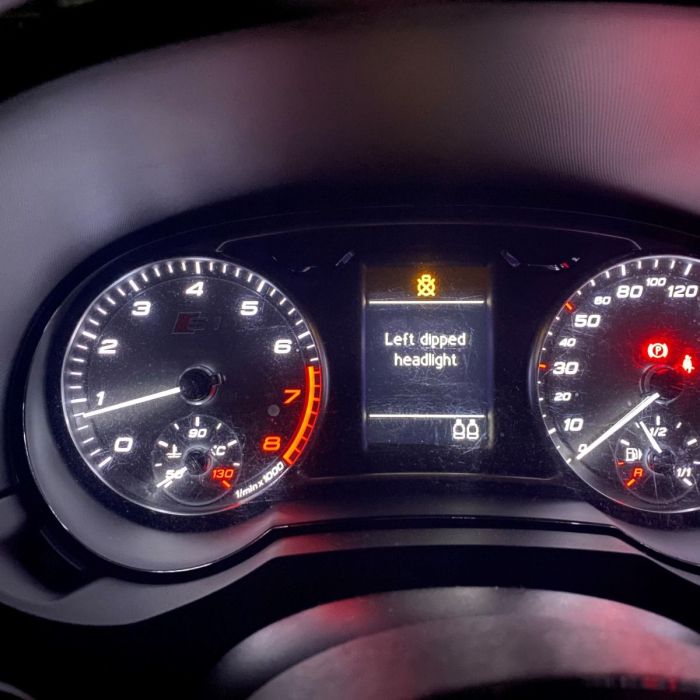

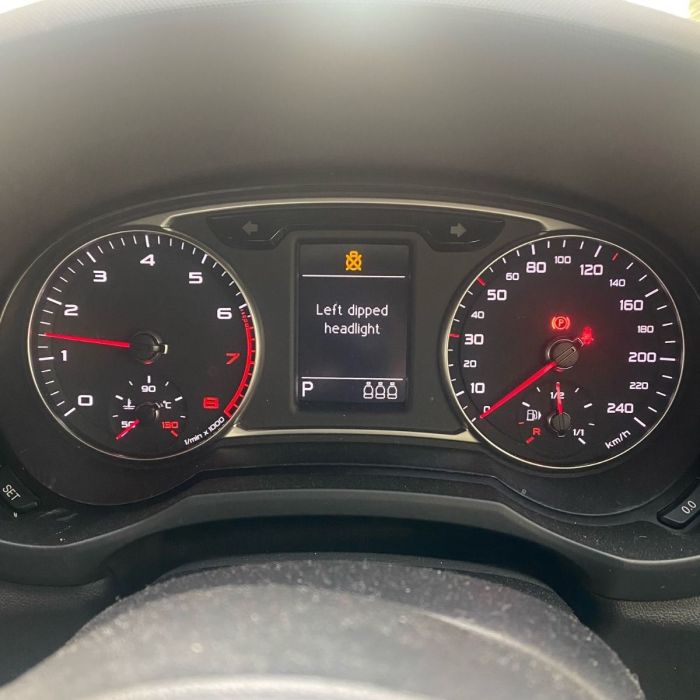

• Left dipped headlight
• Right dipped headlight
• Feu de route/croisement gauche
• Feu de route/croisement droit
• Feu de croisement/route gauche
• Feu de croisement/route droit
• Luz de carretera izquierda
• Luz de carretera derecho
• Luz de cruce/luz carretera izquierda
• Luz de cruce/luz carretera derecho
• Fahrzeugbeleuchtung: Störung! Bitte Service aufsuchen
• Abblend-/ Fernlicht rechts
• Abblend-/ Fernlicht links

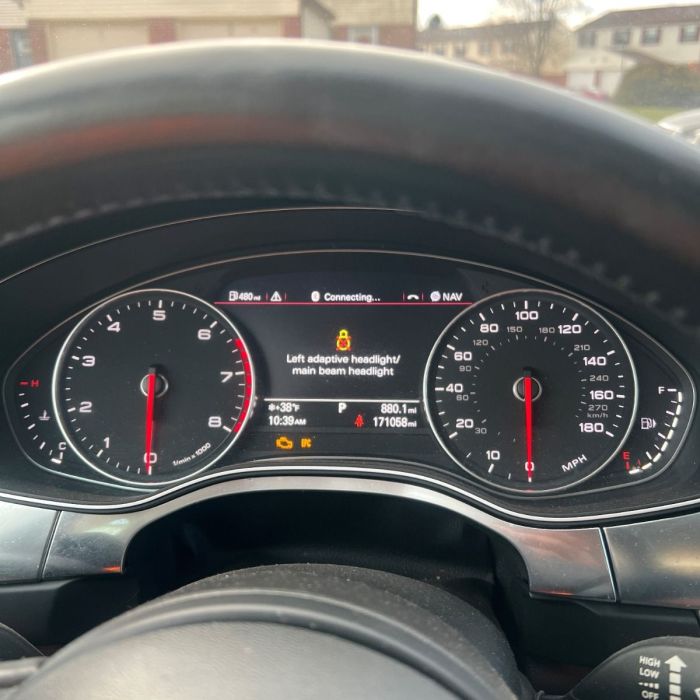

• Left Adaptive Headlight/main beam headlight
• Right Adaptive Headlight/main beam headlight

The most common Volvo warning messages

• Headlamp System Malfunction Service required
• Stralkastarsystem funktionsfel! Service erfordras

The most common Porsche warning messages

• Check front left dipped headlight
• Check front right dipped headlight
• Check front left dipped beam light
• Check front right dipped beam light

Mitsubishi Electric part number:

• W003T22071
• W003T22073
• W003T22072

VAG part numbers:

• 8K0.941.597.E
• 8K0 941 597E
• 8K0941597E

More compatible part numbers:

• 8K0.941.597 8K0941597
• 8K0.941.597.B 8K0941597B
• 8K0.941.597.C 8K0941597C

Chrysler part number

• 68294630AA
• 68294630-AA
• 68170821AA

Porsche part numbers

• 991.618.323.03
• 99161832303
• 691.31.125.99d
• 6913112599d

Volvo part numbers

• 31335777

MOBIS part numbers

• BAM92-143700
• BMA92143700

Hella part numbers

• 5DV009935-03
• 5DV 009.935-03

Magneti Marelli part numbers

• 711307329386

More comaptible Mitsubishi Electirc part numbers

• W003T22071
• W003T22072
• W003T22073
• W003T22771
• 722.61.150.99
• 7226115099
• W003T21971
• W003T18471
• W003T20171

Compatible Audi headlamps

• Audi A1 S1 8X
• 8XA941005C
• 8XA941006

Compatible cars:

• Chrysler 300C 300S LX 3.0 CRD 3.0CRD SRT-8 2011 2012 2013 2014 2015 2016 2017 2018
• Chrysler 300 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
• Dodge Viper 2013 2014 2015 2016 2017 2018
• Lancia Thema LX Saloon Sedan 2011 2012 2013 2014
• Porsche 911 991 2012, 2013, 2014, 2015
• Porsche 911 991 GT3 2014, 2015
• Porsche 911 Turbo 2014, 2015
• Porsche Boxster 2012, 2013, 2014, 2015
• Porsche Cayman 2014, 2015
• Porsche Macan 95B 2014 2015 2016
• Macan 2.0L Turbo diesel
• Macan S diesel 3.0L V6 diesel
• Macan S
• Macan GTS
• Macan Turbo
• 3.0L V6 DCT 4x4 3.6L petrol gasoline
• Volvo V40 Cross Country D2 T2 Estate
• Volvo V40 D4 190 R Design 5DR
• R-Design
• 2012 2013 2014 2015 2016
• Volvo V60
• Volvo XC40 SUV
• Seat Alhambra 2011, 2012, 2013, 2014, 2015
• Skoda Octavia III MK3 3 2012, 2013, 2014, 2015, 2016
• Skoda Superb 2012, 2013, 2014, 2015
• Audi A1 S1 8XA 8XF
• Audi Q3 RSQ3 8UB 8UG
• Audi A3 S3 8P 8PA Facelift 2008, 2009, 2010, 2011
• Audi A3 S3 8V 2012, 2013, 2014, 2015
• A3 S4 8V Saloon Sedan Hatchback Sportback Cabriolet Convertible
• Audi A4 S4 B8 2008, 2009, 2010, 2011, 2012, 2013, 2014
• A4 Quattro Allroad Avant Saloon Sedan 2.0 TDI TFSI FSI
• Audi A6 S6 RS6 C6 Facelift 2008, 2009, 2010
• Audi A6 S6 RS6 C7 2011, 2012, 2013, 2014
• Audi A5 S5 2008, 2009, 2010, 2011, 2012, 2013, 2014
• A5 S5 RS5 8T3 Coupe 8TA SportBack Convertible Cabriolet
• Audi Q5 SQ5 8R S-Line Pre-Facelift and Facelift 2008, 2010, 2011, 2012, 2013, 2014 2015 2016
• Q5 2.0 TFSI, 3.2 FSI, 2.0 TDI, 3.0 TDI Quattro
• Audi Q7 8L 2009, 2010, 2011, 2012, 2013, 2014
• Audi A7 S7 RS7 4G 2010, 2011, 2012, 2013, 2014, 2015
• Audi A8 S8 D4 2009, 2010, 2011, 2012, 2013, 2014
• VW Polo MK5 5 6R 2009, 2010, 2011, 2012
• VW Golf MK7 7 VII Hatchback 2013 2014 2015 2016 2017 2018 2019
• Golf 1.2 1.6 1.0 1.4 1.8 R-Line TSI BlueMotion 1.6 2.0 TDI
• GTE GTD GTI R e-Golf variant Estate SportWagen Sportsvan Alltrack Hatchback
• VW Volkswagen Golf MK7 VII Alltrack 2015 2016 2017
• S SE SEL DSG
• VW Jetta 6 2011, 2012, 2013, 2014, 2015
• VW Passat 362 365 B7 Facelift 2010, 2011, 2012, 2013
• VW Passat B8 2014, 2015, 2016 2017 2018
• Passat 1.4 1.8 2.0 TSI 1.6 2.0 TDI SCR GTE Alltrack Variant BlueMotion
• VW Pheaton 2010, 2011, 2012, 2013, 2014, 2015
• VW EOS MK2 2
• VW Tiguan 2011, 2012, 2013, 2014, 2015
• VW Sharan MK2 7N 2010, 2011, 2012, 2013, 2014, 2015
• VW Scirocco 3 Facelift 2014, 2015, 2016, 2017
• VW Touareg 7P 2010, 2011, 2012, 2013, 2014, 2015
• VW Passat CC Facelift 2012, 2013, 2014 2015 2016 2017
• VW Touran 1T 2010, 2011, 2012, 2013, 2014
• Lamborghini Aventador 2012 2013 2014 2015 2016
