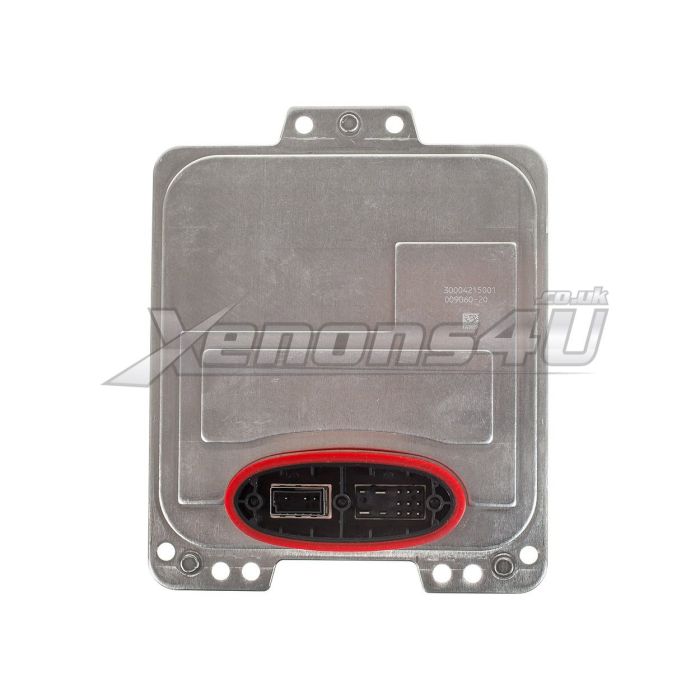

5DC009060-20AL A2129003502 AFS-GDL-Steuergerat Xenon Ballast

5DC009060-20AL A2129003502 AFS-GDL Steuergerat Xenon Ballast control unit

Hella 5DC009060-20AL is factory fitted on Mercedes-Benz brand E-class Pre-Facelift cars  W212 Saloon, S212 Estate, A207 Convertible and C207 Coupe with D1S Bi-Xenon headlights.

The main malfunctions when hella 5DC 009 060-20AL xenon ballast fails is main beam or high beam stops working, xenon lights are shutting down without any reason at random times.

In addition it has range adjustment function.

Information from original sticker: 1100V DC 85V AC 35W nom. made in Germany.

When replaced Mercedes-Benz A2129003502 xenon control unit, it will need one-time coding.

Below you will find compatible Hella and Mercedes-Benz part numbers.

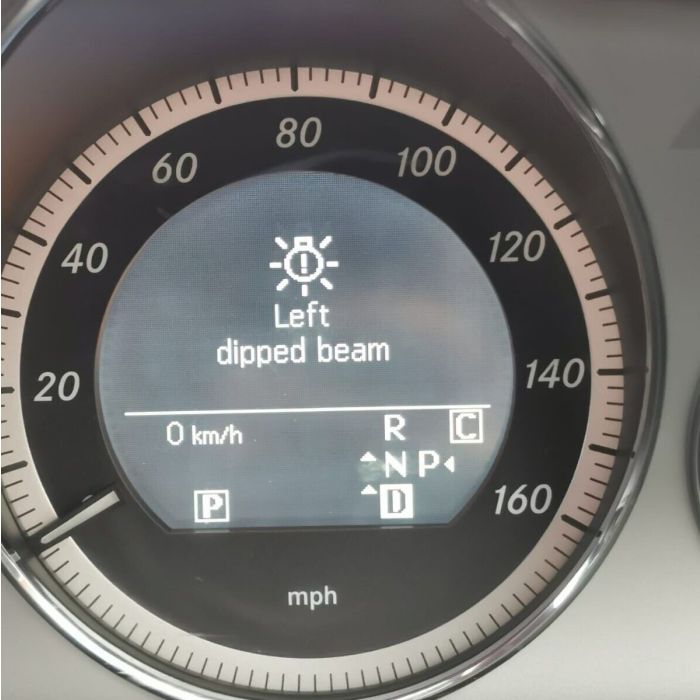

The most common mercedes-benz warning messages

• Low beam left
• Low beam right
• Dipped beam left
• Dipped beam right
• Active Light System currently unavailable
• Left dipped beam
• Right dipped beam

Software and Hardware part numbers

• HW: A2128205626
• SW: A2129026701

Hella part numbers

• 5DC 009 060-20AL
• 5DC009060-20AL

Mercedes-Benz part numbers

More compatible part numbers

• 5DC009060-20AN
• LU: A2129007804
• HW: A2128205626
• SW: A2129024202
• 5DC009060-20AK
• LU: A2129001200
• HW: A2128205626
• SW: A2129023101 A2129023100
• 5DC009060-20AM
• LU: A2129007804
• HW: A2128205626
• SW: A2129024202
• A2128205526
• MA212900780480
• 5DC009060-21

Compable Mercedes-Benz E class W212 S212 C207 Xenon headlamps

• A2128204961 KZ
• A2128204961KZ
• Hella 1ZT009702-65

Compatible Mercedes-Benz cars

• E Class W212 Saloon Sedan Pre-Facelift 2009 2010 2011 2012 2013
• E Class S212 Estate Wagon Pre-Facelift 2009 2010 2011 2012 2013
• E Class C207 Coupe Pre-Facelift 2009 2010 2011 2012 2013
• E Class A207 Convertible Cabriolet Pre-Facelift 2010 2011 2012 2013
• E200 E250 E300 E350 E500 4MATIC BlueEfficiency Petrol Gasoline
• E63 AMG 4MATIC
• AMG Line
• E200 E220 E250 E300 E350 BlueTEC CDI 4MATIC Diesel
