7363091 535215852 TMS BIXF22 Headlight Driver Module

£119.99
In stock

Fast Delivery

Secure Checkout

  • What's Included: 1 Module
  • Condition: New
  • Warranty: 1 Year
  • Manufacturer: Xenons4U
  • BMW part number: 7363091
  • LEAR part number: 535215852 BIXF22
  • Placements: Left or Right side

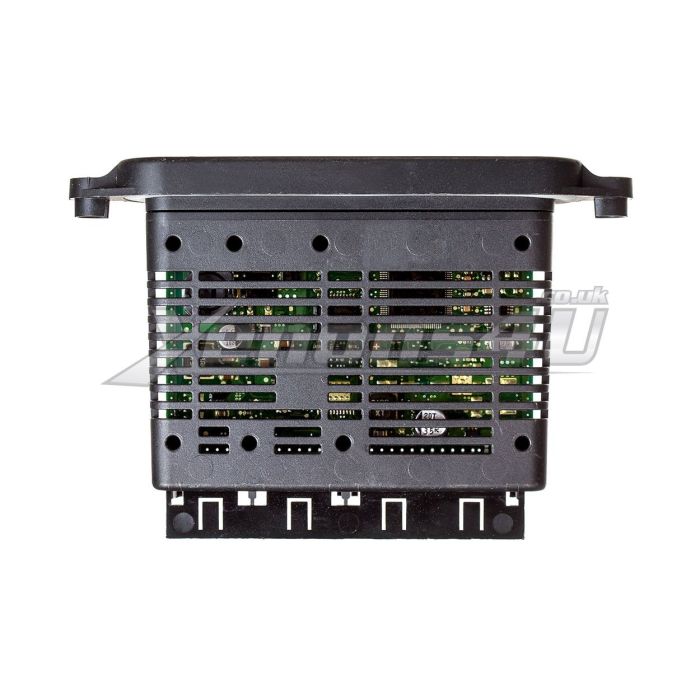

7363091 535215852 BIXF22 TMS Driver module for headlight

736309101 ballast is factory fitted to BMW 2 Series F22 F87 M2 and F23 cars with D1S 35W HID bulb and Xenon headlamps.

How to identify if your bmw's headlight driver module has failed, there are few easy steps.

First of all check all the fuses, if they are in working order, secondly check what kind of malfunctions or on-board computer errors are poping up.

When both halo rings (Angel Eyes) stop to work, front indicators (turn signal) don't work anymore then it is definitely that TMS module has failed.

7363091 TMS Driver Module fits only Xenon also known as Bi-Xenon (Bixenon) headlamps.

Please double check provided BMW and LEAR part numbers to make sure it is correct part for your vehicle.

Each headlight uses one BIXF22 BIX F22 LEAR TMS driver module.

BMW DTC Diagnostic Trouble Codes

  • 800FC3 Initialization fault in left headlamp driver module
  • 800FC2 Initialization fault in right headlamp driver module
  • 800FC3 Initialisation fault in headlight driver module left
  • 800FC2 Initialisation fault in headlight driver module right
  • 800FC7 Internal fault in STML (Left hand headlamp driver module)
  • 800FC8 Internal fault in STML (Right hand headlamp driver module)
  • 800FC7 lin bus, headlight driver module (TMS) right, communication fault
  • 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
  • 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
  • 800F86 Daytime Driving Light / Side Light, left, faulty
  • 800F87 Daytime Driving Light / Side Light, right, faulty
  • 800F88 Output daytime driving light / side light, left, short-circuited
  • 800F89 Output daytime driving light / side light, right, short-circuited
  • 800FCB Headlight driver module (TMS), left, faulty
  • 800FCE Headlight driver module (TMS), right, faulty

The most common warning messages for faulty TMS module

  • Daytime/parking lamp malfunction
  • Left turn signal malfunction
  • Right turn signal malfunction
  • Turn indicator front left failure
  • Turn indicator front right failure
  • Adaptive headlights failure

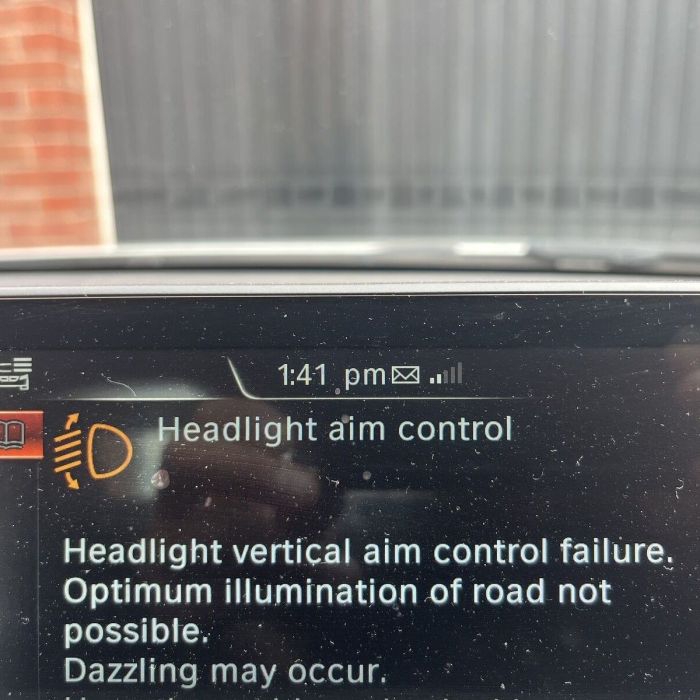

  • Headlight aim control

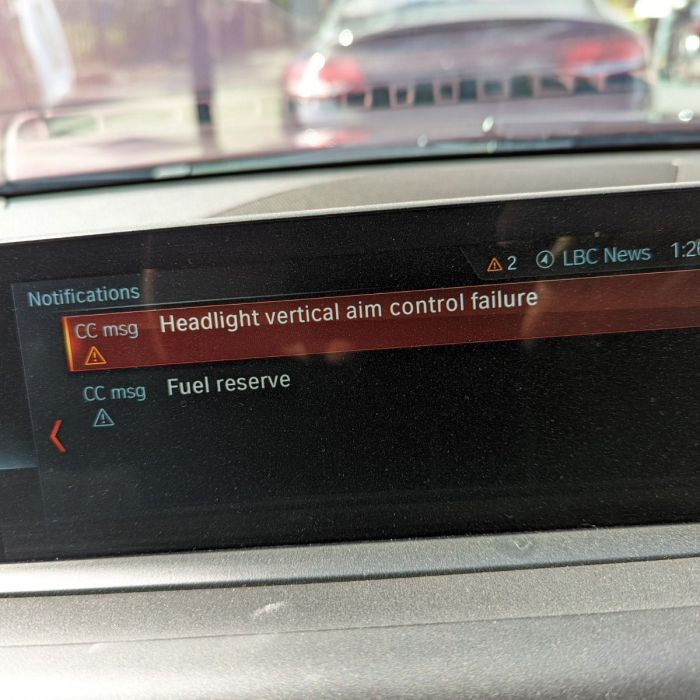

  • Headlight vertical aim control failure
  • Optimum illumination of road not possible
  • Dazzling may occur

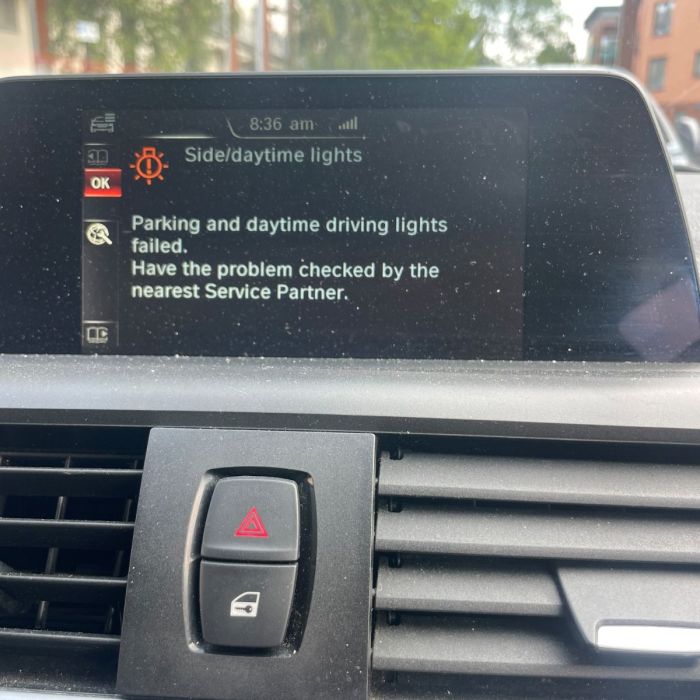

  • Side/daytime lights fault
  • Adaptive Lichtsysteme defekt
  • Fernlicht links defekt
  • Fernlicht rechts defekt
  • Abblendlicht links defekt
  • Abblendlicht rechts defekt
  • Leuchtweitenregulierung defekt

BMW part numbers:

  • 63117363091
  • 7363091 01
  • 736309101

LEAR part numbers:

  • 535215852 08
  • 53521585208

Compatible BMW cars:

  • 2 Series F22 Coupe 2012 2013 2014 2015 2016 2017
  • 2 Series F87 M2 Coupe 2014 2015 2016 2017
  • 2 Series F23 Convertible Cabriolet 2014 2015 2016 2017
  • 218i 220i 228i 230i M235i M240i xDrive petrol gasoline
  • 218d 220d 225d M-Sport diesel
