A2229004505 LED Control Module

A2229004505 LED Control Module

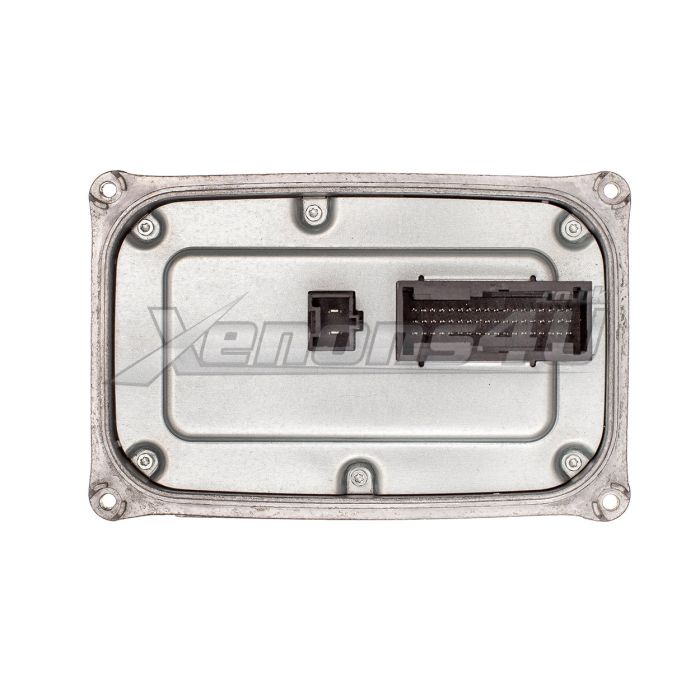

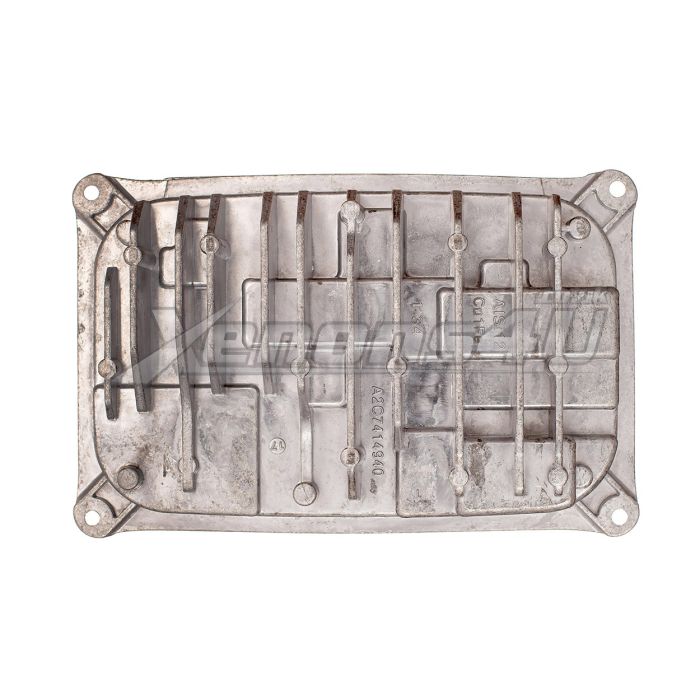

A2229004505 LED Ballast is factory fitted on Mercedes-Benz C-class and S-class cars with full LED ILS headlamps.

A2229012302 LED control module is used with adaptive ILS Intelligent Light system and Full LED headlights.

Full LED headlamps means low (main) and high (dipped) beam must be with projector lenses and LED light.

A2229029404 LED module is responsible for controling LED lights and range adjustment on the headlamps, front turn signal indicator and daytime running lights DRL.

If any of these functions aren't working or you see on-board computer warning light you will need to replace control unit.

A2229029404 LED control module is direct replacement to faulty genuine mercedes-benz part.

Compatible with few other part numbers, which could be found below and direct replacement to continental brand part.

One-time coding will be required with dealer software after replacing module.

The most common diagnostic trouble fault codes

• B210F14 Input Circuit 30 has a malfunction. There is a short circuit to the ground or an open circuit
• B178313 Control Unit Actuation Modul, Led exterior lightning, the right front has a malfunction. There is an open circuit
• B1783-13 B178313 Control Unit LED Driving Lights Actuation Module has a malfunction. Only Valid with SA Code 640 641 642. There is a an open circuit
• U118B-00 U118B00 Communication with control unit Right Headlamp range adjustment has a malfunction. There is a general failure

The most common Mercedes-Benz warning messages

• Intell. Light System Inoperative
• Intelligent Light System inoperative
• ILS ohne Funktion
• Intell. Light System ur funktion
• Intell. Light system virker ikke
• Intell. Light system ne fonctionne pas
• Intell. Light System ohne Funktion
• Intell. Light system no funciona
• Intell. Light system guasto
• Intell. Light system functioneert niet
• Intell. Light system nieaktywny
• Sis. Luzes inteliente inoperacional
• Intell. Light System ur funktion
• Malfunction See Owner's manual
• Malfunction See Operator's Manual
• Front left indicator
• Front right indicator
• Check front left turn signal
• Check front right turn signal
• Front right parking lamp
• Front left parking lamp
• Check Front Left Parking Lamp
• Check Front Right Parking Lamp
• Check Right Daytime Running Light
• Check Left Daytime Running Light
• Front left daytime driving lamp
• Front right daytime driving lamp

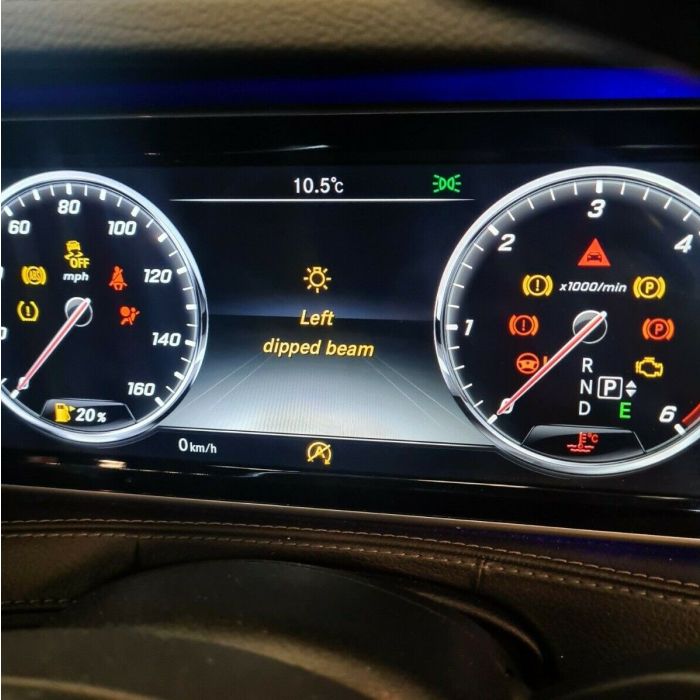

• Left Dipped Beam

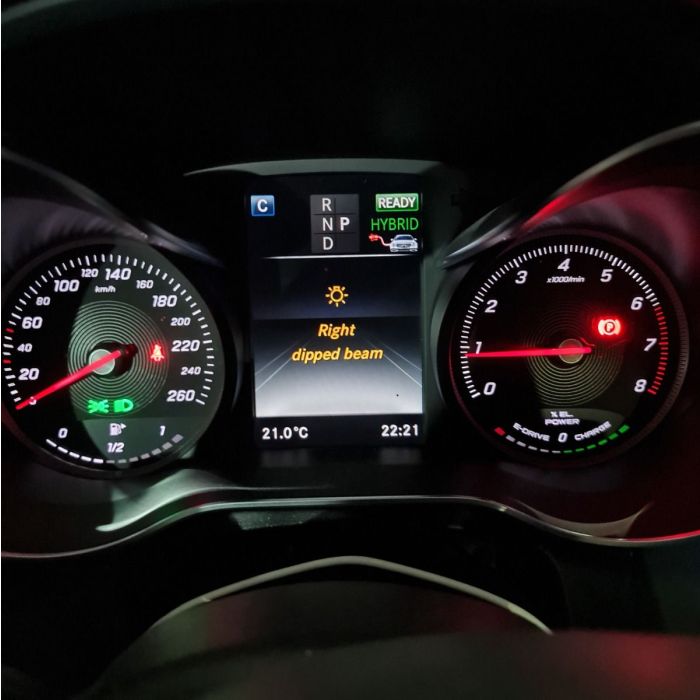

• Right Dipped Beam
• Check Left Low Beam
• Check Right Low Beam
• Left daytime driving lamp
• Right daytime driving lamp
• Parklicht vorne links
• Parklicht vorne rechts
• Blinker vorne links
• Blinker vorne rechts
• Abblendlicht links
• Abblendlicht rechts
• Tagfahrlicht links
• Tagfahrlicht rechts
• Luz estacionamiento delantera izquierda
• Luz estacionamiento delantera derecha
• Luz de cruce izquierda
• Luz de cruce derecha
• Luz de marcha diurna izquierda
• Luz de marcha diurna derecha
• Feu stationnement avant gauche
• Feu stationnement avant droit
• Feu croisement gauche
• Feu croisement droit
• Clignotant avant gauche
• Clignotant avant droit
• Eclairage de jour gauche
• Eclairage de jour droit
• Halvljus vänster
• Halvljus höger
• Parkeringsljus vänster fram
• Parkeringsljus höger fram
• Varselljus vänster
• Varselljus höger
• Medios direita
• Medios esquerda
• Illumin. diurna esq.
• Illumin. diurna dir.
• Prawe swiatlo mijania
• Lewe swiatlo mijania
• Lewe przednie swiatlo parkingowe
• Prawe przednie swiatlo parkingowe
• Lewe swiatlo dzienne
• Prawe swiatlo dzienne
• Parkeerlicht linksvoor
• Parkeerlicht rechtsvoor
• Dimlicht rechts
• Dimlicht links
• Dagverlichting links
• Dagverlichting rechts
• Anabbagliante destro
• Anabbagliante sinistra
• Luce diurna SX
• Luce di parcheggio anteriore sinistra
• Luce di parcheggio anteriore destro
• Parkeringslys foran til venstre
• Parkeringslys foran til hojre
• Blinklys foran til hojre
• Blinklys foran til venstre
• Drejelys til hojre
• Drejelys til venstre
• Kørelys til venstre
• Kørelys til hojre
• Korelys til venstre
• Korelys til hojre

Software and hardware part numbers:

• HW-NR A2229012302
• SW-NR A2229029404

Mercedes-Benz part number:

• A2229004505
• A222 900 45 05

Continental part number:

• A2C73612606

More compatible part numbers:

• A222 900 08 06 A2229000806
• A2C73512605
• HW-NR A2229012302
• SW-NR A2229029405
• A2229001704
• A222 900 81 05 A2229008105
• A2C73927609
• HW-NR A2229013403
• SW-NR A2229022205
• A2229006610
• A222 900 01 15
• A2229000115 MA2229000115
• A2C73927612 73927612
• HW-NR A2229013403
• SW-NR A2229021114
• A2229004505 A222 900 45 05
• A2C73612606
• HW-NR A2229012302
• SW-NR A2229029404

Compatible Mercedes-Benz S W222 LED headlamps

• AL 0 301 276 632 28 030127663228
• A222 906 87 02 A2229068702
• AL 0 301 276 631 28 030127663128
• A222 906 86 02 A2229068602
• AL 030127623114 A2229060702

Compatible Mercedes-Benz C class W205 S205 C205 ILS LED Headlamps

• A2059060705 030128463207
• A2059062804 030128463407
• A2059060605 030128463107
• A2059065605 AL 145100010800
• A2059065705 AL 145100010900

Mercedes Benz compatibility list

• C Class W205 Saloon Sedan Pre-Facelift
• 2013 2014 2015 2016, 2017
• C Class S205 Wagon Estate T-Model 2013 2014 2015 2016, 2017
• C Class C205 Coupe 2013 2014 2015 2016, 2017
• C Class A205 Convertible Cabriolet 2014 2015 2016 2017
• C180d C200d C220d C250d diesel BlueTEC
• C300 C350e Plug-in Hybrid
• C160 C180 C200 C250 C300 C400 C450
• C43 C63 AMG Petrol Gasoline
• 4Matic AMG Line
• S class W222 Saloon Sedan 2014 - 2017
• S class C217 Coupe
• S class A217 Convertible Cabriolet
• S400 S500 S550 S600 S63 S65 AMG 4MATIC Petrol Gasoline
• S300h S400h S500e Plug In Hybrid Electric EV
• S350d BlueTEC 4MATIC diesel

Please note: This list is not full, LED module may fit other car models as well, please check provided part numbers, pictures and compare to your old parts.
